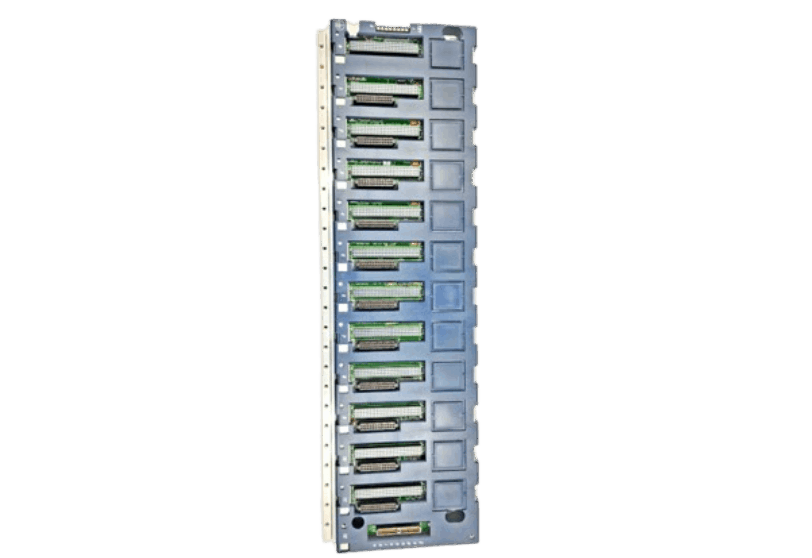

General Electric IC695CHS012 Universal Backplane
Item Number: IC695CHS012
Brand: GE
Lead Time: In stock
Description: Universal Backplane
Payment: T/T
Product Description
GE IC695CHS012 is a 12-slot universal backplane for the PACSystems RX3i series. Featuring a dual-bus architecture, it serves as the foundation for control systems, supporting both PCI bus (IC695 series) and serial bus (IC693/IC694 series) I/O and intelligent modules. The IC695CHS012 must be installed in a cabinet with a minimum NEMA/UL Type 1 or IP20 (IEC60529) rating.
Function & Features
- The IC695CHS012 features a terminal block on the left side with a backplane ground point and an integrated ground bar for connecting module or shield ground wires.
- The IC695CHS012 has a serial expansion connector for connecting to a serial expansion or remote backplane. The slot numbers are printed on the backplane for reference during configuration.
- The GE IC695CHS012 must be installed in an enclosure with a minimum NEMA/UL Type 1 or IP20 rating. For use in ATEX Zone 2 hazardous areas, it must be installed in an enclosure with an IP54 rating or higher.
Specifications
|
Parameter |
Details |
|
Model |
IC695CHS012 |
|
Number of Slots |
12 Slots |
|
Bus Type |
Dual Bus (PCI + Serial) |
|
Support modules |
- IC695 Series (PCI Bus) - IC693/IC694 Series (Serial Bus) - Series 90 - 30 Modules |
|
Maximum Number of Modules |
12 |
|
Width |
478.6 mm |
|
Height |
131.4 mm |
|
Depth |
245mm |
|
Net Weight |
2.5 kg |
