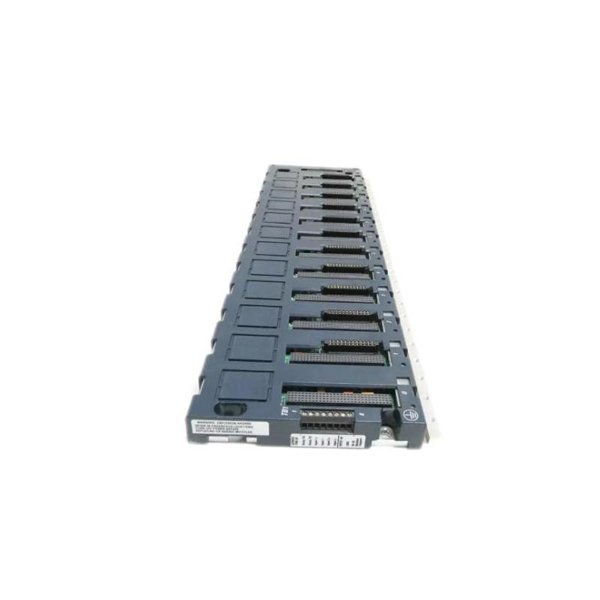

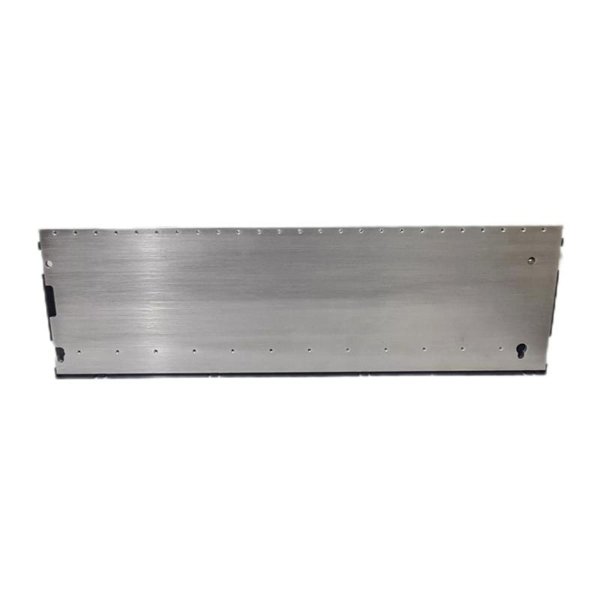

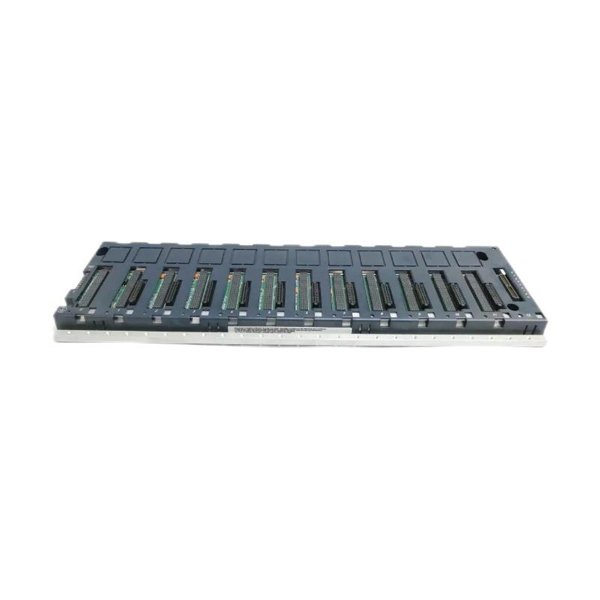

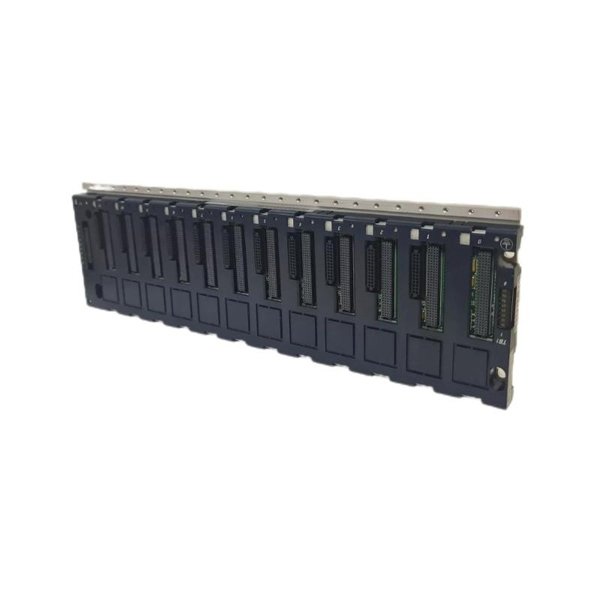

General Electric IC695CHS012 RX3i 12 Slot Universal Backplanes

The GE Fanuc IC695CHS012 is a high-performance 12-slot universal backplane from the PACSystems RX3i series. It serves as a modular platform for connecting multiple controller modules in industrial automation environments. With support for both PCI and serial communications, this backplane offers exceptional flexibility and compatibility for building scalable, robust control systems. The design enables easy installation, reliable operation under industrial conditions, and facilitates hot-swappable modules without halting operations—making it ideal for mission-critical applications.

The IC695CHS012 is designed to support the future of control systems by offering high-speed connectivity, a dual-backplane architecture, and backward compatibility with legacy modules. Whether you are upgrading an existing control system or building a new one, this backplane ensures stable integration and optimized performance for demanding automation solutions.

Technical Specifications

Applications

The IC695CHS012 is engineered for demanding industrial environments and is widely applied in:

• Manufacturing automation systems

• Industrial process control (chemical, oil & gas, pharmaceuticals)

• Water and wastewater treatment plants

• Energy and utility operations

• Transportation systems

• Building and infrastructure automation

• Food and beverage processing systems

• Mining and heavy equipment automation

Its support for hot-swap and multi-type communication modules allows continuous operation and flexibility across numerous industrial sectors.

Product Advantages

• High Slot Capacity: Accommodates up to 12 modules, allowing for large, scalable control systems.

• Dual-Bus Architecture: Enables integration of both PCI and high-speed serial modules simultaneously.

• Hot Swapping Support: Modules can be added or replaced without shutting down the system, reducing downtime.

• Backwards Compatibility: Works seamlessly with GE’s legacy and current RX3i modules.

• Compact Form Factor: Saves space while offering robust capabilities.

• Sturdy Construction: Built to endure harsh industrial conditions with IP20/NEMA Type 1 compatibility.

• Ease of Installation: Designed for horizontal mounting with clearly marked slots.

• Efficient Cooling: Optimized layout with clearance guidance for proper heat dissipation.

• Modular Design: Allows flexible I/O configurations and expansion.

• Reliable Communication: Ensures fast data transfer between modules via PCI and serial buses.

Frequently Asked Questions (FAQ)

1. What type of modules can be installed in the IC695CHS012 backplane?

   It supports both PCI-based and serial communication modules from the GE RX3i series.

2. Is the IC695CHS012 backplane compatible with older Series 90-30 modules?

   Yes, most Series 90-30 I/O and option modules are compatible through supported interfaces.

3. Can I hot-swap modules in this backplane?

   Yes, hot-swap is supported for reducing system downtime during maintenance or module replacement.

4. What enclosure should I use with this backplane?

   It must be installed in a metal enclosure rated IP20 or higher, or NEMA Type 1 or better.

5. How much clearance is needed for safe installation?

   At least 4 inches (102 mm) of clearance should be maintained on all sides for airflow.

6. Does it come with a power supply?

   No, the power supply is a separate module that connects via one of the designated slots.

7. Is this backplane ATEX Zone 2 certified?

   It can be used in Zone 2 hazardous areas when enclosed appropriately and properly installed.

8. What is the recommended mounting orientation?

   Horizontal mounting is recommended to maintain proper airflow and slot alignment.

9. What are the dimensions of the backplane?

   The backplane measures 141.48 x 457.45 x 147.32 mm.

10. How much does the IC695CHS012 weigh?

    It weighs 1.58 kg.
