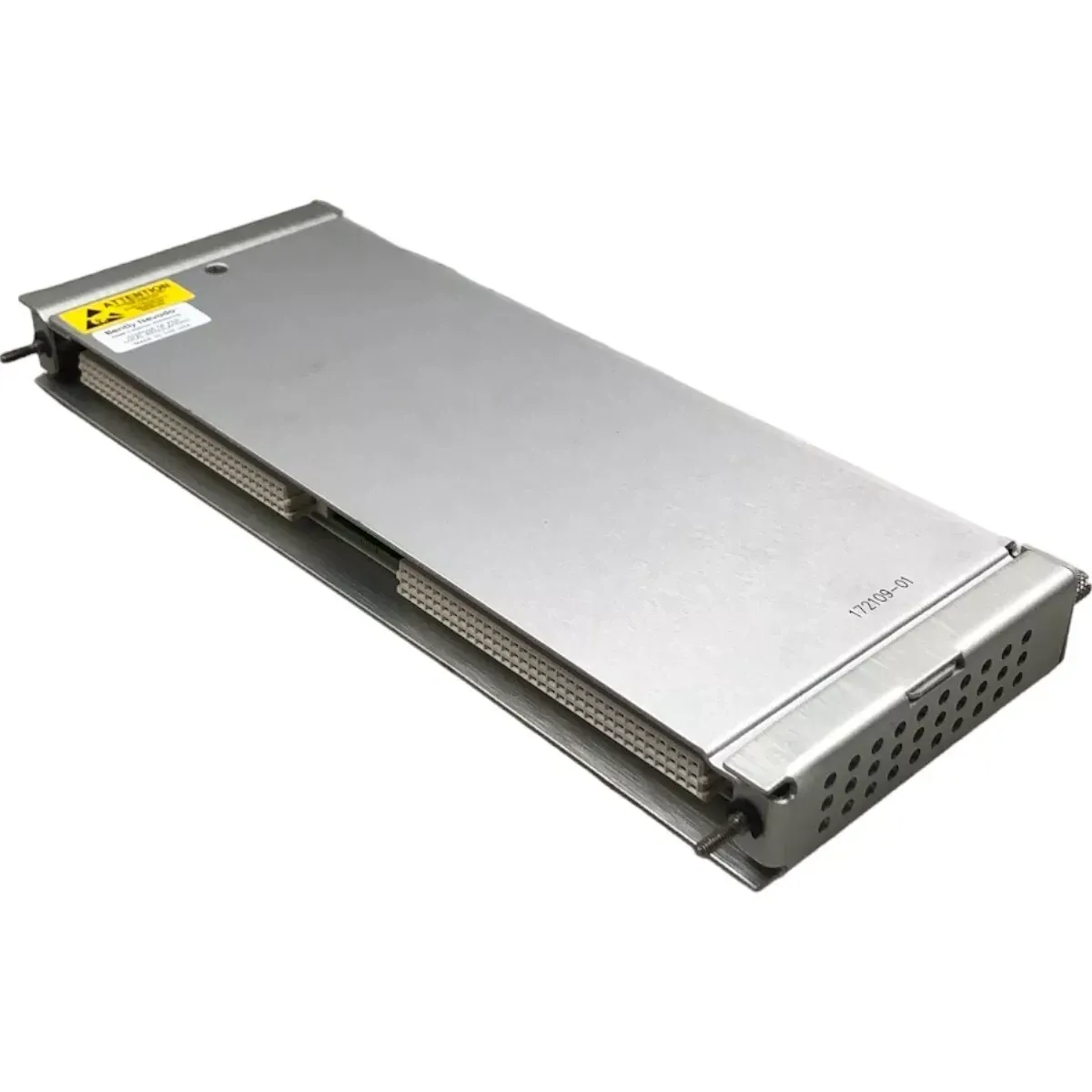

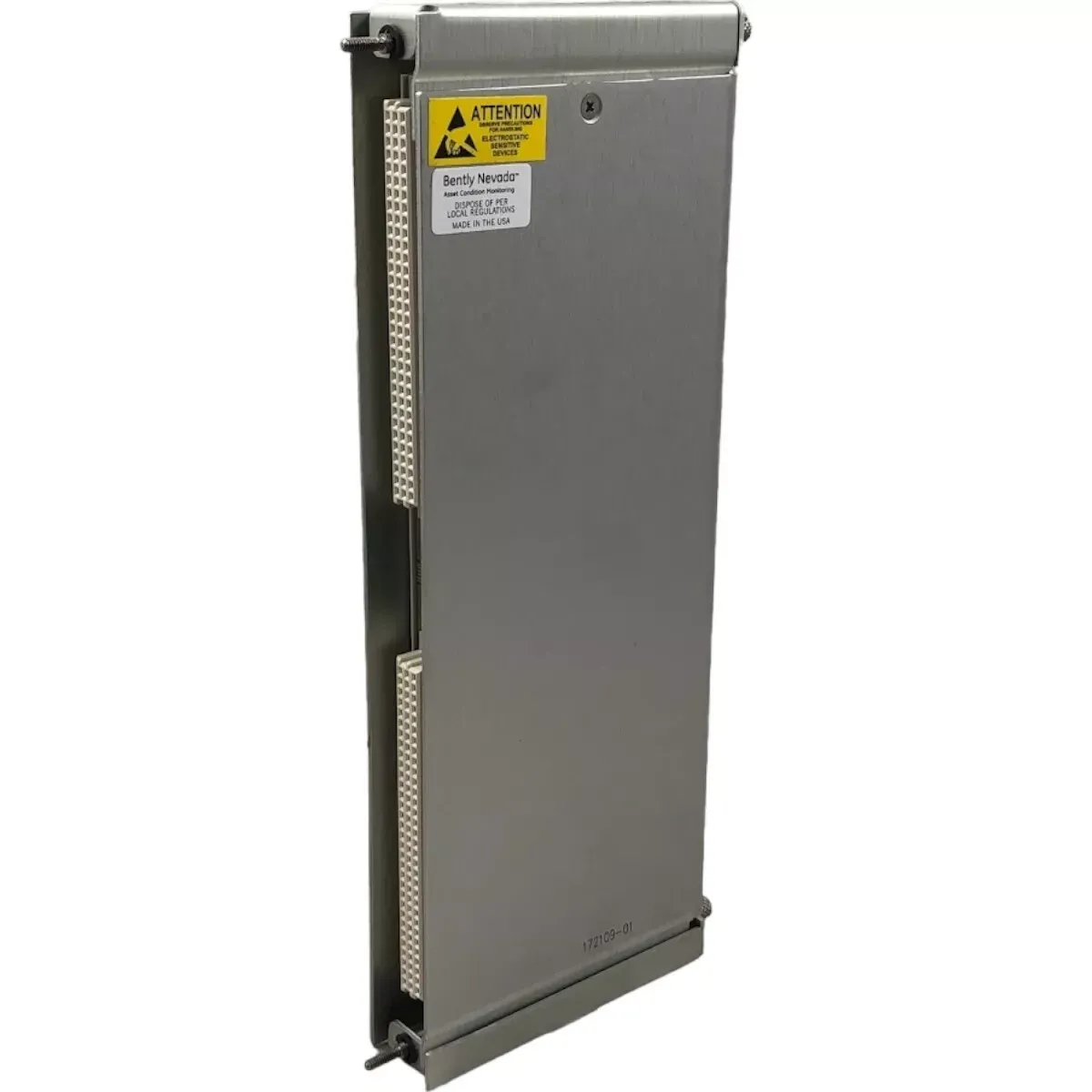

Bently Nevada 3500/65-02-00 172109-01 RTD Isolated Tip TC I/O Module
Item Number:3500/65-02-00 172109-01
Brand:Bently Nevada
Lead Time: In stock
Description:RTD Isolated Tip TC I/O Module, External Terminations
Payment: T/T
Product Description
Bently Nevada 3500/65-02-00 (172109-01) RTD isolated thermocouple I/O module is a temperature sensing module in the 3500 series monitoring system, mainly used for accurate temperature monitoring of rotating machinery. It can provide 16 channels of temperature monitoring, accept temperature inputs from resistance temperature detectors (RTDs) and isolated thermocouples (TCs), and can be programmed through the 3500 rack configuration software to accept isolated thermocouples, three-wire RTDs, four-wire RTDs, or a combination of TC and RTD inputs. In a triple-mode redundant (TMR) configuration, temperature monitors must be installed in groups of three adjacent monitors, and two voting methods are used to ensure accurate operation and avoid single point failures.
Fuctions & Features
- Multi-channel temperature monitoring: The 3500/65-02-00 (172109-01) RTD isolated thermocouple I/O module has 16 channels and can monitor the temperature of multiple points at the same time, and can fully grasp the temperature conditions of different parts of the equipment.
- Multi-type signal input: The 3500/65-02-00 (172109-01) RTD isolated thermocouple I/O module can accept temperature input signals of resistance temperature detectors (RTD) and isolated thermocouples (TC), supports 3-wire RTD, 4-wire RTD, isolated thermocouple or their combination input, and can adapt to a variety of temperature sensors.
- Signal Conditioning and Comparison: The 3500/65-02-00 (172109-01) RTD Isolated Thermocouple I/O Module conditions the input temperature signal, converts it into a form that is easy to process and analyze, and compares it with the alarm setpoints set by the user through the 3500 Rack Configuration Software to promptly issue an alarm when the temperature is out of the normal range.
Specification
|
Category |
Sub - category |
Details |
|
Inputs |
Power Consumption |
3 watts nominal |
|
Signal |
Accepts from 1 to 16 RTD or isolated tip TC transducer signals |
|
|
Input Impedance |
Greater than 1 MΩ for each lead input |
|
|
Dimensions |
241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
|
|
Weight |
0.45 kg (1.0 lb) |
|
|
Outputs |
Front Panel LEDs - OK LED |
Indicates when the 3500/65 is operating properly |
|
Front Panel LEDs - TX/RX LED |
Indicates when the 3500/65 is communicating with other modules in the 3500 rack |
|
|
Front Panel LEDs - Bypass LED |
Indicates when the 3500/65 monitor is in Bypass Mode |
|
|
RTD Current - Source Value |
913 ± 7 μA @ 25°C per transducer (1 supply for the 4 - wire RTD and 2 supplies for the 3 - wire) |
