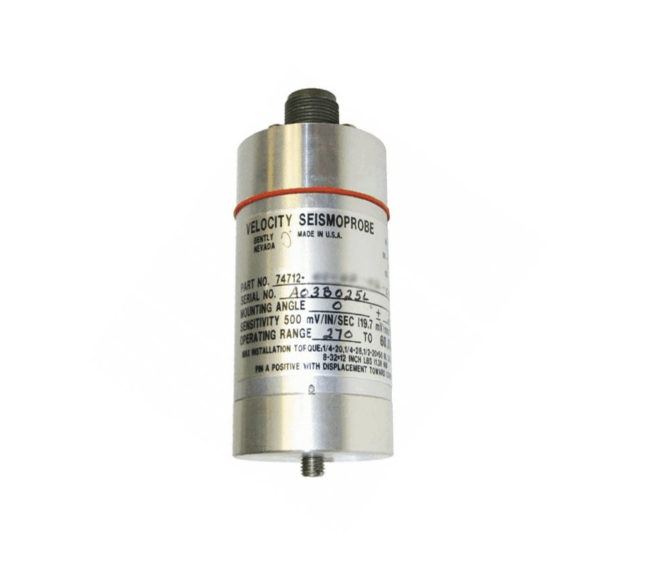

Bently Nevada 74712-01-10-02-00 Seismoprobe Velocity Transducer
Item Number: 74712-01-10-02-00
Brand: Bently Nevada
Lead Time: In stock
Description: Seismoprobe Velocity Transducer
Payment: T/T
Product Description
Bently Nevada 74712-01-10-02-00 is a member of the Seismoprobe family of velocity sensors used to measure absolute vibration of a bearing housing, housing or structure relative to free space.
The system is a two-wire design consisting of a sensor and a dedicated cable, based on moving coil technology, with an output voltage signal directly proportional to the vibration velocity. Unlike solid-state velocity sensors, which are essentially accelerometers with embedded integration circuitry, the Seismoprobe's moving coil design is less sensitive to shock or pulse excitation and does not require external power.
Note: Model 74712 is a high-temperature version of the 9200 series.
Function & Features
- Technology type: 74712-01-10-02-00 is a moving coil type (not solid state) with strong impact resistance.
- Output signal: 74712-01-10-02-00 is a voltage signal proportional to the vibration velocity.
- Power supply: 74712-01-10-02-00 does not require an external power supply (passive design).
- Cable options: 74712-01-10-02-00 is available in a variety of lengths and can be optionally protected by stainless steel armor.
Specification
|
Model |
74712-01-10-02-00 |
|
Options Torque |
-5.6 N•m (50 in•lb) -1.41 N•m (12.5 in•lb) for 8-32 threaded studs |
|
Height |
102 mm (4 in) typical (depends on connector option). |
|
Diameter |
41 mm (1.6 in) typical. |
|
Weight |
74712=480 grams (17 ounces) typical |
Loading comments...
Bently Nevada 74712-01-10-02-00 Seismoprobe Velocity Transducer
Item Number: 74712-01-10-02-00
Brand: Bently Nevada
Lead Time: In stock
Description: Seismoprobe Velocity Transducer
Payment: T/T
Product Description
Bently Nevada 74712-01-10-02-00 is a member of the Seismoprobe family of velocity sensors used to measure absolute vibration of a bearing housing, housing or structure relative to free space.
The system is a two-wire design consisting of a sensor and a dedicated cable, based on moving coil technology, with an output voltage signal directly proportional to the vibration velocity. Unlike solid-state velocity sensors, which are essentially accelerometers with embedded integration circuitry, the Seismoprobe's moving coil design is less sensitive to shock or pulse excitation and does not require external power.
Note: Model 74712 is a high-temperature version of the 9200 series.
Function & Features
- Technology type: 74712-01-10-02-00 is a moving coil type (not solid state) with strong impact resistance.
- Output signal: 74712-01-10-02-00 is a voltage signal proportional to the vibration velocity.
- Power supply: 74712-01-10-02-00 does not require an external power supply (passive design).
- Cable options: 74712-01-10-02-00 is available in a variety of lengths and can be optionally protected by stainless steel armor.
Specification
|
Model |
74712-01-10-02-00 |
|
Options Torque |
-5.6 N•m (50 in•lb) -1.41 N•m (12.5 in•lb) for 8-32 threaded studs |
|
Height |
102 mm (4 in) typical (depends on connector option). |
|
Diameter |
41 mm (1.6 in) typical. |
|
Weight |
74712=480 grams (17 ounces) typical |
