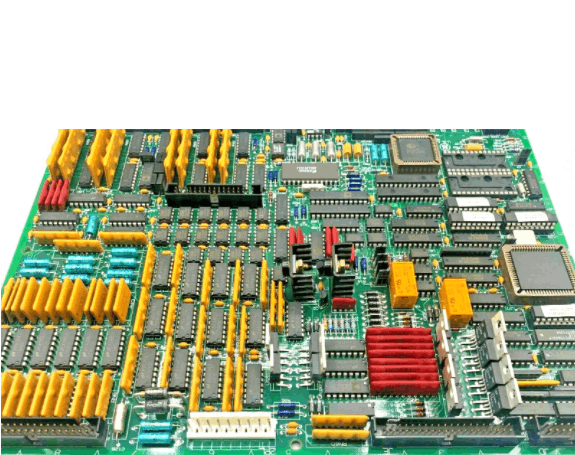

General Electric DS200TCQAG1B RST Analog I/O Board
Item Number:DS200TCQAG1B
Brand: GE
Lead Time: In stock
Description:RST Analog I/O Board
Payment: T/T
Product Description
GE DS200TCQAG1B is an RST analog input/output board for the Mark V series gas turbine control system. As the core interface for signal conditioning and processing, it can be used for a variety of industrial signal types, including sensor signals (linear differential transformers, servo valve drives), process signals, temperature signals, pulses and relay signals (speed pulses, relay drive outputs).
Function & Features
- DS200TCQAG1B supports signal types:
- Analog: ±10V DC, 4–20 mA
- Digital: TTL pulse (magnetoelectric speed sensor)
- Temperature: thermocouple (cold end compensation through TBQA board)
- I/O Configuration Editor:DS200TCQAG1B uses the operator interface to set the following parameters: thermocouple type, pulse rate, vibration range, LVDT position, 4–20 mA input/output ratio, etc.
- Hardware Configuration: DS200TCQAG1B can select mA output circuit through hardware jumpers J1 and J2, and configure mA output current range through J5 and J6.
Specifications
|
Category |
Details |
|
Model |
DS200TCQAG1B |
|
Series |
GE Mark V Speedtronic Control System |
|
4 - 20mA Input |
- Channels: 8 - Accuracy: ±0.1% F.S. - Input Impedance: 250Ω |
|
- Types: J/K/T/E selectable - Cold Junction Compensation: Via JA connector - Accuracy: ±0.5°C |
|
|
±10V DC Input |
- Channels: 4 - Resolution: 16 - bit - Accuracy: ±0.05% F.S. |
|
TTL Pulse Input (Digital Signal) |
- Frequency Range: 0 - 20kHz - Threshold: 2.5V (standard TTL level) |
|
Relay Output (Digital Signal) |
- Contact Rating: 5A @ 250VAC (resistive load) - Channels: 4 |
