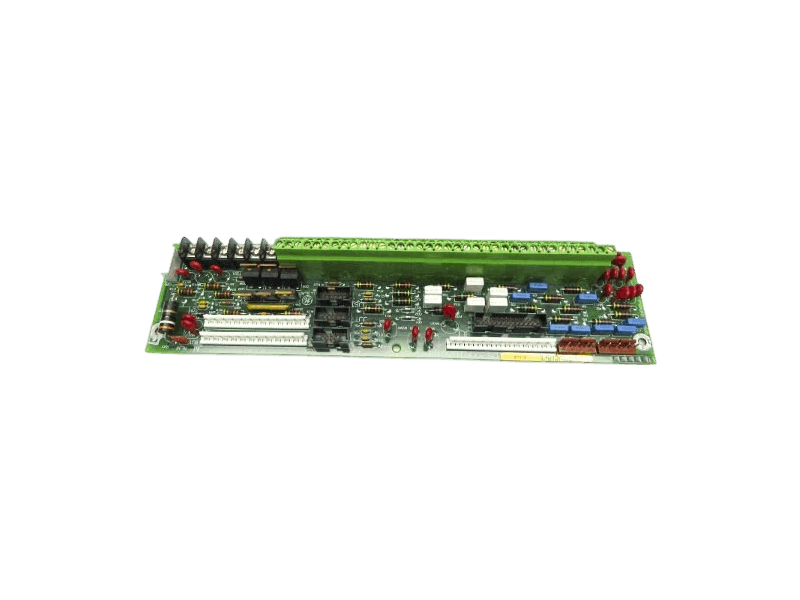

General Electric DS200PTBAG1B DS200PTBAG1BBA Protection Termination Board
Item Number:DS200PTBAG1B DS200PTBAG1BBA
Brand:GE（General Electric）
Lead Time: In stock
Description: Protection Termination Board
Payment: T/T
Product Description
GE DS200PTBAG1B (DS200PTBAG1BBA) is a protection terminal board. This board serves as the interface between the P1 control core and protection devices, primarily responsible for signal terminal connection, distribution, and routing.
It processes critical signals related to safe gas turbine shutdown (tripping), receiving input signals such as high-pressure and low-pressure shaft speeds, flame detection, generator and bus voltages, and generator current.
Function & Features
- Speed Signal: The DS200PTBAG1B (DS200PTBAG1BBA) receives and processes speed sensor signals from the high-pressure (HP) and low-pressure (LP) shafts for overspeed protection.
- Flame Detection Signal: The DS200PTBAG1B (DS200PTBAG1BBA) receives signals from ultraviolet (UV) flame detectors and monitors combustion conditions.
- Trip Logic Interface: The DS200PTBAG1B (DS200PTBAG1BBA) board provides a direct path between external trip input signals and the internal turbine trip board.
- Generator protection: DS200PTBAG1B (DS200PTBAG1BBA) processes generator and bus voltage, current signals, and circuit breaker status.
Specifications
| parameter | Details |
|---|---|
| Product Model | DS200PTBAG1B (DS200PTBAG1BBA) |
| Product Description | Protection Termination Board |
| Input Signals |
-Speed signal
-Flame signal -PT/CT signal -Circuit breaker/trip signal |
| Output Signals |
-Trip/Close Output -Horn Enable Signal |
| Configuration Jumpers | 8 jumpers |
| Dimensions | 302.36*78.2mm |
