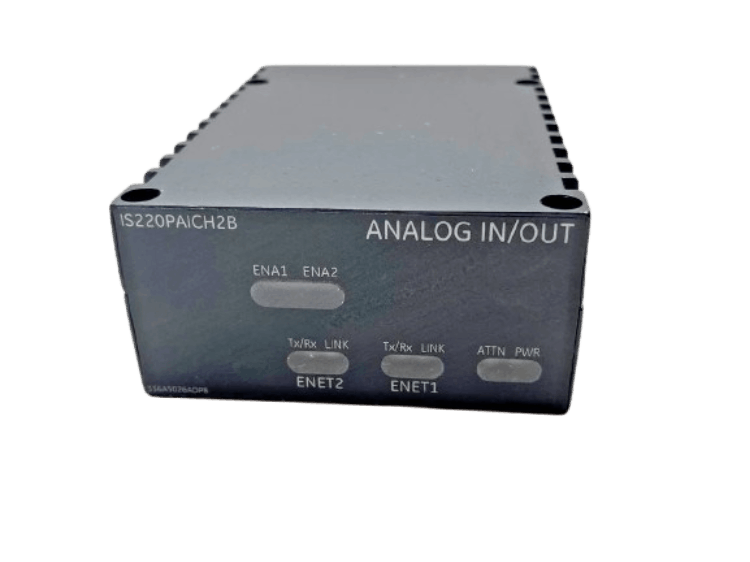

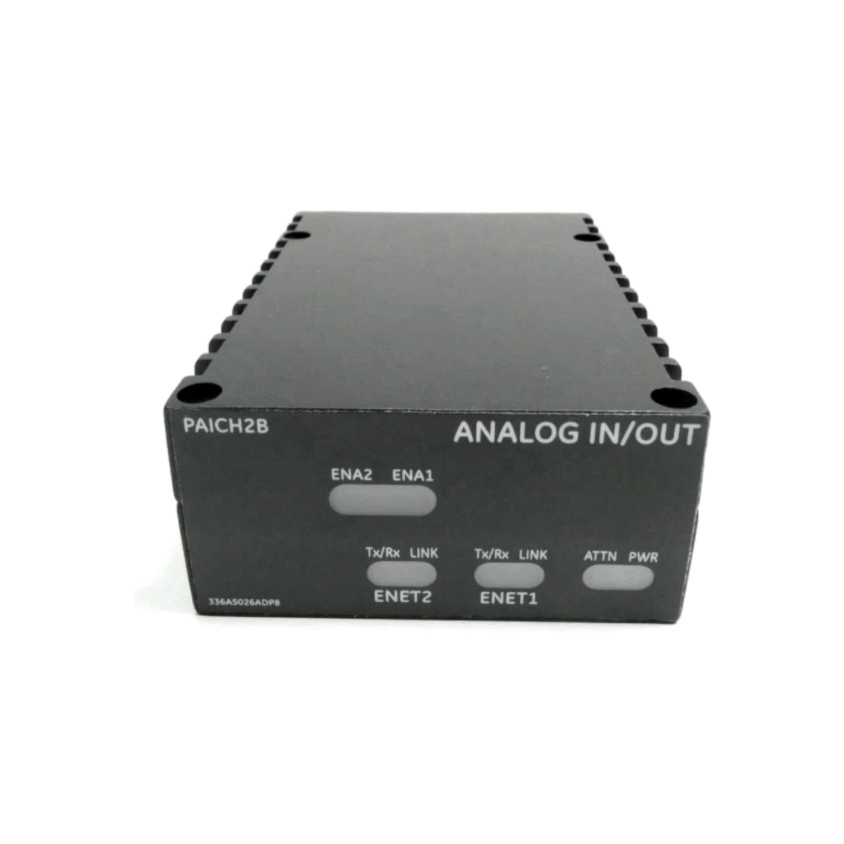

General Electric IS220PAICH2B Analog I/O Module
Product Description
GE IS220PAICH2B analog I/O module serves as an interface and signal processing unit between the upper-level I/O network and analog signals. It can process up to 10 analog signals. The IS220PAICH2B module plugs into a corresponding terminal board via a D-type connector on the bottom. Side connectors include ENET1 and ENET2, as well as a power connector, forming an assembly.
Technical Data
| Model Number | IS220PAICH2B |
| System | Mark Vie |
| Related models | IS220PAICH2A/IS220PAICH1A |
|
Channel Quantity |
10 Single-ended |
|
Port Identification |
ENET1 (Main Network), ENET2 (Redundant Network) |
|
Connectors |
1×37-pin D-Sub (for connecting terminal board) 2×RJ45 (Ethernet) 1×3-pin (Power) |
|
Configuration Software |
ToolboxST |
|
Power Connector |
3-pin power connector (located on the side of the module) |
Function & Features
- Dual-board architecture: The IS220PAICH2B includes a general-purpose processor board (running firmware) and a dedicated acquisition board (for analog signal acquisition and output).
- Hardware Limit Checking: The IS220PAICH2B detects each analog input near its range, stopping scanning when triggered and generating a logic signal.
- System Limit Checking: The IS220PAICH2B performs checks based on user-configurable high and low limits, which can be used for interlock control, reset via command, and more.
- Output Circuit Verification: The IS220PAICH2B detects the voltage drop across the burden resistor to provide feedback on the output current and compares it with the commanded value.
FAQ
Q: What is the brand?
A: GE(General Electric)
Q: What is the type?
A: Analog I/O Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
