General Electric IC697MDL652 Discrete Input Module

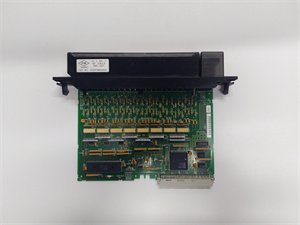

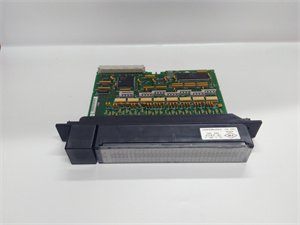

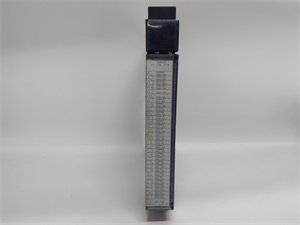

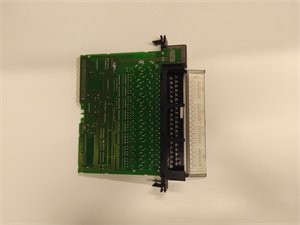

The GE IC697MDL652 is a high – performance discrete input module, an integral part of the GE Fanuc Series 90 – 70 family. Engineered for industrial automation applications, it serves as a crucial link between field devices and control systems. This module is designed to accurately capture digital input signals, which are then relayed to the central control unit for further processing.

With its ability to handle a wide range of digital signals, the IC697MDL652 is suitable for diverse industrial scenarios. Whether it’s in a manufacturing plant with numerous sensors and switches or a complex industrial process where digital data needs to be precisely monitored, this module can efficiently manage the input. It plays a key role in ensuring the seamless operation of industrial control systems by providing reliable and fast digital signal processing.

Technical Specifications

High Channel Count

The GE IC697MDL652 comes with 32 input channels, allowing for the connection of a large number of digital devices. This high channel count reduces the need for multiple modules in applications with a significant number of input points, simplifying the system design and reducing costs associated with additional hardware and wiring.

Wide Input Voltage Range

With an input voltage range spanning from – 3 to +30 VDC, the module can adapt to various industrial environments. It can handle signals from a wide variety of sensors and switches, regardless of their voltage levels within this range. This versatility makes it suitable for use in different types of industrial processes, from those with standard 24 VDC signals to applications with slightly different voltage requirements.

Compact Design

Measuring just 12.5 x 12.5 x 7.5 cm and weighing only 0.25 kg, the IC697MDL652 has a compact form factor. This makes it easy to integrate into existing control panels or systems where space may be limited. Its small size doesn’t compromise on performance, ensuring that it can be installed in tight spaces without sacrificing functionality.

Reliable Performance

Engineered for durability, the GE IC697MDL652 is built to withstand harsh industrial conditions. It can operate consistently in environments with electrical noise, vibrations, and temperature variations. The module’s reliable performance ensures that digital input signals are accurately captured and transmitted, minimizing the risk of errors in the control system.

In manufacturing plants, the GE IC697MDL652 is widely used to interface with sensors and switches on production lines. For example, it can be connected to proximity sensors that detect the presence of parts on conveyor belts. The module then sends the digital signals from these sensors to the PLC, which controls the movement of the conveyor and other equipment. This ensures smooth and efficient production processes.

In the food and beverage industry, the module is used to monitor various equipment. It can be connected to switches on valves, indicating whether they are open or closed. This information is crucial for controlling the flow of ingredients during the production process. In wastewater treatment plants, the IC697MDL652 interfaces with sensors that detect the level of wastewater, the status of pumps, and other critical parameters. By accurately capturing these digital signals, it helps in the automated control of the treatment process.

Installation and Maintenance

Pre – installation preparation: Before installing the GE IC697MDL652, ensure that the power to the entire control system is turned off to avoid electrical shock. Check the physical condition of the module for any signs of damage during transit. Verify that the input voltage range of the connected devices is within the – 3 to +30 VDC range supported by the module. Also, make sure the mounting location in the control panel has enough space to accommodate the module’s dimensions.

Maintenance recommendations: Regularly inspect the IC697MDL652 for any signs of overheating, such as discoloration of the module casing. Check the connections of the input wires to ensure they are secure and free from corrosion. Monitor the input signals using appropriate diagnostic tools to ensure that the module is accurately capturing and transmitting data. If any issues are detected, consult the GE product manual or contact GE’s technical support for guidance on troubleshooting and repair.

Product Guarantee

GE stands firmly behind the quality of the GE IC697MDL652. The module is manufactured to high – quality standards, undergoing rigorous testing to ensure its reliability. In the event of a defect in materials or workmanship within the warranty period, GE will provide repair or replacement services at no cost to the customer. Their dedicated technical support team is available to assist with any installation – related questions, as well as to help troubleshoot any issues that may arise during the module’s operation. This commitment to quality and customer support reflects GE’s confidence in the IC697MDL652 and its ability to meet the demanding needs of industrial automation applications.
