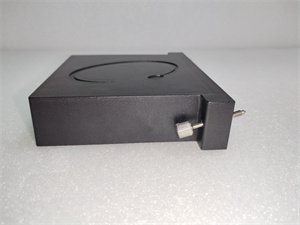

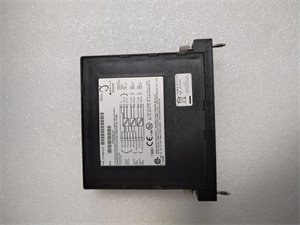

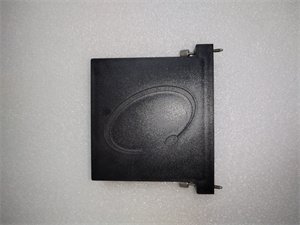

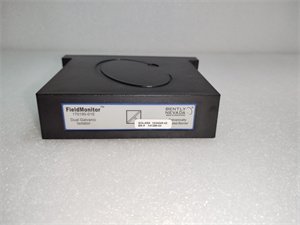

Bently Nevada 170190-01E Dual Galvanic Isolator
Manufacturer:Bently Nevada
Product Number:BENTLY 170190-01E
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 170190-01E is a dual galvanic isolator designed for hazardous area applications, supporting intrinsically safe transducer installations without external safety barriers. As part of the 1701/06 Field Monitor system, this module ensures reliable signal conditioning and isolation for radial vibration and thrust position measurements in critical machinery. With two channels, it accepts inputs from proximity probes and transducers, delivering accurate data while maintaining compliance with safety standards. Its compact design and robust construction make it ideal for environments such as oil refineries, chemical plants, and offshore platforms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 170190-01E |
| Function | Dual Galvanic Isolator |
| Channels | 2 channels |
| Input Types | Proximity probe signals |
| Power Supply | 24 VDC ±10% |
| Isolation Rating | 2,500 VDC (galvanic isolation) |
| Mounting Options | Panel or DIN rail mount |
| Dimensions | 263 mm × 58 mm × 28 mm |
| Weight | 4.3 kg |
| Certifications | ATEX, IECEx (intrinsically safe) |
| Immunity | High resistance to RFI/EMI |
Advantages and Features
- Intrinsic Safety Compliance: Eliminates the need for external barriers, reducing installation complexity in hazardous zones.
- Dual-Channel Isolation: Ensures signal integrity and protects against ground loops.
- Self-Test Functionality: Embedded diagnostics monitor system health and transducer connectivity.
- Flexible Mounting: Supports panel or DIN rail installation for space-efficient integration.
- Wide Temperature Range: Operates reliably in extreme conditions (-40°C to +85°C).
Application Areas and Use Cases
Industry Applications:
- Oil & Gas: Monitoring compressors, pumps, and turbines in explosive environments.
- Chemical Processing: Ensuring safety in reactor and agitator systems.
- Power Generation: Protecting generators and steam turbines in hazardous locations.
Case Study: A European chemical plant reduced downtime by 30% using the 170190-01E to monitor agitator vibrations. The module’s intrinsic safety features minimized installation costs while enabling continuous, safe operation.
Competitor Comparison
- Higher Channel Density: Supports two channels vs. single-channel alternatives.
- Integrated Isolation: Combines signal conditioning and galvanic isolation in a single unit.
- Global Compliance: Meets ATEX and IECEx standards, ensuring suitability for international projects.
Selection Recommendations
- Channel Requirements: Opt for the 170190-01E for basic dual-channel isolation; consider the 1701/15 for advanced vibration analysis.
- Hazardous Environments: Verify compliance with local safety regulations (e.g., ATEX zones 0/1/2).
- Space Constraints: Choose DIN rail mounting for compact control panels.
Precautions
- Installation: Follow wiring guidelines to prevent signal interference and ensure proper grounding.
- Calibration: Regularly validate sensor alignment and signal levels using Bently’s configuration tools.
- Maintenance: Replace modules if self-test alerts indicate faults or wear.
