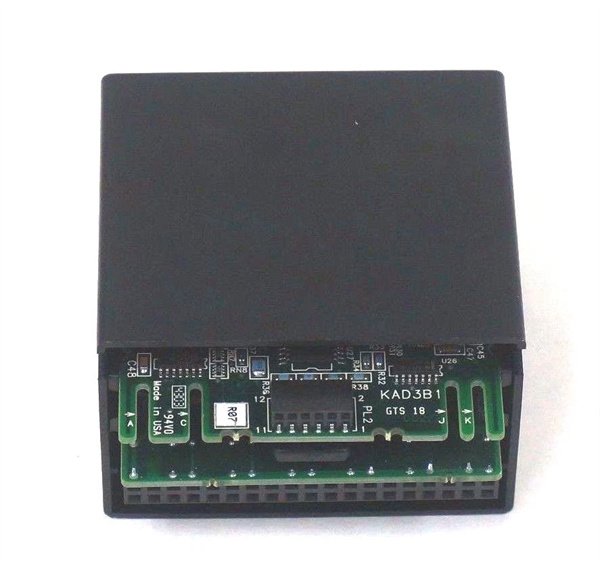

General Electric IC670ALG330-KB 4-Channel Industrial Analog Input Module

The GE IC670ALG330-KB is a flagship analog input module in GE’s VersaMax PLC product line, engineered to bridge industrial analog sensors (e.g., temperature transmitters, pressure transducers) to digital control systems. As a 4-channel differential module, the GE IC670ALG330-KB excels at converting continuous analog signals into precise digital data—critical for applications where real-time, accurate process monitoring is non-negotiable.

Unlike basic analog modules, the GE IC670ALG330-KB offers channel-by-channel configurability, allowing users to mix voltage and current inputs on the same module (e.g., 2 channels for 4-20mA pressure sensors, 2 channels for 0-10V temperature signals). This flexibility positions the GE IC670ALG330-KB as a cost-effective solution for mid-sized industrial projects, from manufacturing to utilities. In automation systems, the GE IC670ALG330-KB acts as the “sensory interface,” ensuring PLCs receive reliable data to drive decisions like process adjustments, alarm triggers, and quality control.

Detailed Parameter Table

Core Advantages and Technical Highlights

High-precision signal acquisition: The GE IC670ALG330-KB delivers 16-bit resolution and ±0.1% full-scale accuracy at ambient temperature, outperforming entry-level 12-bit modules. This precision ensures minimal measurement error for sensitive processes—for example, in pharmaceutical manufacturing, it can reliably capture 0.1V fluctuations from pH sensors, ensuring batch consistency and regulatory compliance.

Channel-by-channel flexibility: Each of the GE IC670ALG330-KB’s 4 channels can be independently configured for voltage or current inputs via GE’s VersaPro or Proficy Machine Edition software. No physical DIP switches are required, reducing on-site configuration time and the risk of human error. For example, a food processing plant can use one channel for a 4-20mA flow sensor and another for a ±10V load cell—all on a single GE IC670ALG330-KB.

Robust isolation and protection: The GE IC670ALG330-KB features 250V AC channel-to-channel isolation, preventing cross-talk between signals and shielding the module from electrical noise (e.g., from nearby motors). It also includes short-circuit protection on all channels; if a sensor wire is accidentally grounded, the GE IC670ALG330-KB shuts down the affected channel without damaging the module or baseplate—critical for reducing maintenance costs.

Intuitive diagnostics: The GE IC670ALG330-KB integrates LED status indicators for each channel (green = normal, red = overrange/short circuit) and a module-wide “OK” LED. This allows technicians to quickly identify issues (e.g., a faulty pressure sensor) without connecting to software. For remote monitoring, diagnostic data is also transmitted to the VersaMax CPU, enabling proactive maintenance alerts via SCADA systems.

Typical Application Scenarios

In chemical processing plants, the GE IC670ALG330-KB is a cornerstone of reactor temperature control. It connects 4-20mA RTD transmitters mounted on reactor vessels to a IC670CPU320 PLC, converting analog temperature signals (e.g., 50°C-200°C) into digital data. The module’s ±0.1% accuracy ensures the PLC adjusts heating elements with sub-degree precision, preventing overheating and ensuring compliance with safety standards. Its channel isolation also protects against signal interference from nearby pumps, maintaining data integrity.

For HVAC systems in large industrial facilities, the GE IC670ALG330-KB monitors air handling units (AHUs). It uses 0-10V inputs to capture temperature (from thermistors) and humidity (from capacitive sensors) data across 4 zones. The PLC uses this data to adjust dampers and fans, optimizing energy efficiency. The GE IC670ALG330-KB’s wide operating temperature range (0°C-60°C) ensures reliable performance in mechanical rooms with fluctuating heat and humidity.

Water and wastewater treatment plants rely on the GE IC670ALG330-KB for chemical dosing control. It connects 4-20mA turbidity sensors in sedimentation tanks to the VersaMax PLC, transmitting real-time particle concentration data. If turbidity exceeds thresholds, the PLC increases coagulant dosing—all made possible by the GE IC670ALG330-KB’s fast signal conversion (100ms per channel) and short-circuit protection, which safeguards against sensor wire damage in wet environments.

Installation Commissioning and Maintenance Instructions

Installation preparation: Before installing GE IC670ALG330-KB, power off the VersaMax baseplate and verify the control cabinet meets environmental specs (0°C-60°C, 5%-95% non-condensing humidity). Required tools include a torque screwdriver (0.4-0.6 N·m for baseplate screws), wire strippers (for 22-14 AWG sensor wires), and a multimeter (to check sensor signal integrity). Align the module with the baseplate’s guide rails, push until it latches, and secure with front-panel screws—do not hot-swap the module, as this may damage the baseplate backplane. Connect sensor wires to the module’s terminal block (ensure correct polarity for current inputs: + for 4-20mA, – for ground).

Maintenance suggestions: Daily maintenance for GE IC670ALG330-KB involves checking channel LEDs—steady green indicates normal operation, while red signals overrange or short circuits. Every 6 months, use compressed air (≤40 psi) to clean dust from the module’s vents, preventing overheating. If a channel fails, first verify the sensor and wiring (use a multimeter to check for 4-20mA/0-10V signals); if the issue persists, reset the module via the baseplate’s power cycle. When replacing GE IC670ALG330-KB, ensure the new module’s firmware matches the VersaMax CPU (via Proficy Machine Edition) to avoid compatibility errors.
