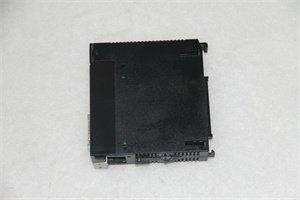

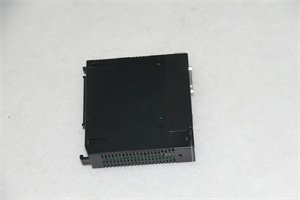

General Electric IC693CPU341 CPU Module

The GE IC693CPU341 is a high – performance CPU module belonging to the GE Fanuc 90 – 30 series, designed for programmable logic controllers (PLCs) in industrial automation systems. It is a single – slot module with 5 baseplates, including  CPU baseplate and 4 remote and/or expansion baseplates.

Equipped with an 80C188XL processor running at 20 MHz, the IC693CPU341 offers reliable and efficient operation. It has a maximum user program memory of 80 K bytes, along with various types of memory such as register memory, discrete global memory, internal coils, and output coils, which provide sufficient storage space for programs and data. This module is capable of handling complex control tasks, making it an important component in industrial automation, enhancing the overall control accuracy and efficiency.

Technical Specifications

Main Features and Advantages

• Powerful Processing Capability: The GE IC693CPU341 is equipped with an 80C188XL processor, which operates at a high speed of 20 MHz, enabling it to handle complex control tasks with ease and ensuring quick response times and efficient data processing.
• Ample Memory: It has a relatively large user program memory of 80 K bytes, along with rich register memory, discrete global memory, etc. This allows for the storage of extensive program instructions and data, meeting the requirements of various industrial applications.
• Versatile Communication: The module is equipped with a serial port that supports SNP/SNP – X slave protocols. It can also be expanded with optional network communication modules such as Ethernet, GBC, and FIP, facilitating seamless integration with other devices and systems in the industrial automation network.
• Reliable Operation: With a rugged construction, the IC693CPU341 can operate stably within the temperature range of 0 – 60 °C, making it suitable for use in harsh industrial environments.

Application Field

The GE IC693CPU341 is widely used in various industrial automation fields. In the manufacturing industry, it is used to control production lines, such as in automotive manufacturing for the control of robotic arms and conveyor belts. In the process control industry, it is applied to monitor and control chemical reaction processes, temperature, pressure, and other parameters. In building automation systems, it can be used to manage lighting, air – conditioning, and security systems. Moreover, in the power industry, it is utilized for the control and monitoring of power generation equipment and power distribution systems. No matter in which industrial field, the IC693CPU341 can provide reliable control and efficient operation, helping to improve production efficiency and product quality while reducing costs.

Installation and Maintenance

Pre – installation preparation: Before installing the GE IC693CPU341, make sure the power supply meets the requirements, and check that the baseplate and other related modules are in good condition. Clean the installation site to avoid dust and debris affecting the operation of the module. Also, ensure that the installation environment temperature is within the specified range of 0 – 60 °C.

Maintenance recommendations: Regularly check the operating status of the IC693CPU341, including its temperature, power supply, and communication status. Clean the module regularly to prevent dust from accumulating. When there is a problem, refer to the manual for troubleshooting or contact professional technical support. It is recommended to back up the program and data regularly to prevent data loss in case of module failure.
