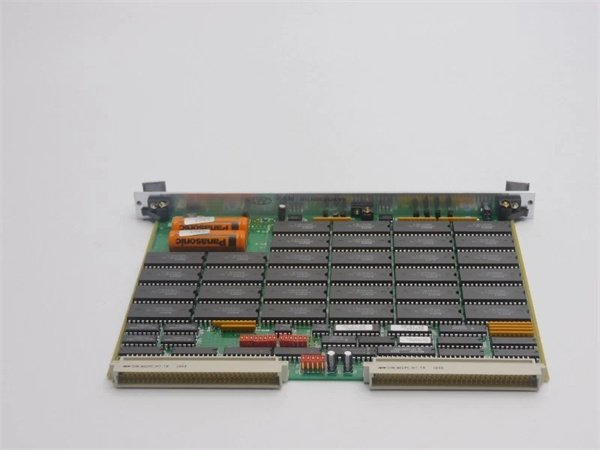

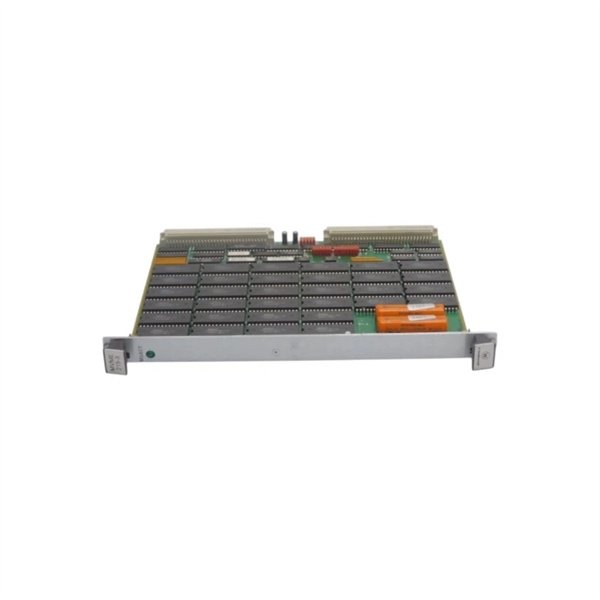

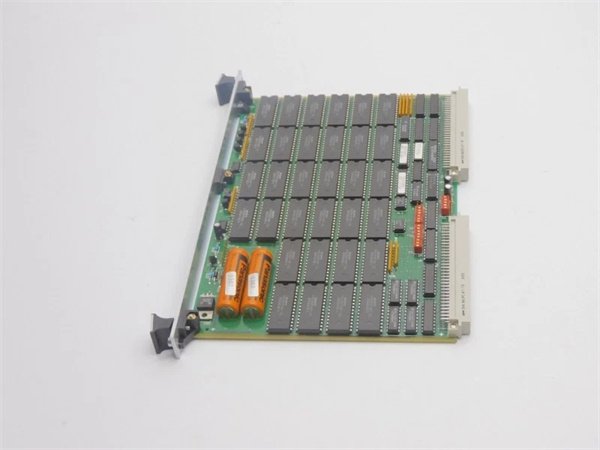

Motorola MVME215-2 Analog Output Module

The Motorola MVME215-2 is a legacy industrial VMEbus analog output module designed for mid-tier precision actuator control—specializing in converting digital setpoints from host SBCs into stable analog voltages to drive proportional valves, small motors, and other mid-scale actuators. As a balanced model in the Motorola MVME 215 series, Motorola MVME215-2 fills the gap between the entry-level Motorola MVME215-1 (4 channels) and premium Motorola MVME215-3 (8 channels with ultra-low drift): it offers 6 channels of 12-bit AO performance at a cost point 25% lower than the Motorola MVME215-3, without sacrificing critical reliability features.

In automation systems, Motorola MVME215-2 acts as a “cost-efficient control signal hub”: it receives digital commands from host SBCs (such as Motorola MVME-2700-761-I/O) and translates them into analog signals to regulate mid-scale processes—for example, adjusting the speed of a conveyor motor or the opening of a water flow valve. This design avoids over-engineering for simple tasks (where the Motorola MVME215-3 would be excessive) and provides more capacity than the Motorola MVME215-1, making Motorola MVME215-2 ideal for applications like small chemical batches, commercial HVAC zoning, and automotive component testing—where moderate precision and channel count meet budget constraints.

Detailed Parameter Table

Core Advantages and Technical Highlights

Balanced Performance + Cost Efficiency: Motorola MVME215-2 delivers 12-bit resolution with ±0.1% linearity error and <8 ppm/°C drift—sufficient for 90% of mid-scale control tasks—while costing less than the premium Motorola MVME215-3. For example, a commercial bakery using a 3-zone oven can use Motorola MVME215-2 to control 3 heating elements (0–5V) and 3 fan speeds (±5V): the module’s <8 ppm/°C drift maintains oven temperatures at 180°C ±1°C over 12-hour baking shifts, meeting quality standards without the added cost of the Motorola MVME215-3’s ultra-low drift. The 0.005% on-board reference ensures signal stability for daily operations.

Mid-Channel Density + Flexibility: With 6 configurable AO channels, Motorola MVME215-2 strikes a balance between the Motorola MVME215-1’s 4 channels (too few for multi-actuator systems) and the Motorola MVME215-3’s 8 channels (overkill for small setups). Each channel supports 3 practical output ranges (±5V/±10V/0–5V)—covering most common actuators, from low-voltage solenoid valves (0–5V) to medium-voltage pump controllers (±10V). This eliminates the need for external signal converters: a small water treatment plant can use 4 channels for chemical dosing pumps (0–5V) and 2 channels for flow control valves (±10V) with one Motorola MVME215-2, reducing component count and wiring complexity.

Reliable Protection + Environmental Tolerance: Motorola MVME215-2 includes 400 mA auto-recoverable short-circuit protection per channel—preventing damage if an actuator cable shorts, unlike basic modules that require replacement. In a car wash automation system, if a high-pressure pump’s cable is accidentally grounded, the module resets automatically once the fault is fixed, minimizing downtime. Its -15°C–65°C operating range and 1.5 g vibration resistance also exceed consumer-grade modules, making it suitable for semi-harsh environments like outdoor irrigation control or factory floor conveyor systems.

Typical Application Scenarios

In small-batch chemical manufacturing, Motorola MVME215-2 is paired with Motorola MVME162-12 to regulate a 500-liter mixing tank. The host SBC receives temperature/pH data from a Motorola MVME-224-2 (analog input module) and sends setpoints to Motorola MVME215-2: 2 channels control heating/cooling (0–5V), 2 channels adjust chemical feed rates (±5V), and 2 channels regulate stirrer speed (±10V). The module’s ±0.1% linearity ensures precise chemical dosing (e.g., 30% pump output = 1.5V), maintaining batch consistency for specialty detergents—meeting ISO 9001 standards without the cost of the Motorola MVME215-3.

For commercial building HVAC control, Motorola MVME215-2 manages a 6-zone office heating system. It outputs 6 channels of 0–5V signals to zone valves: each channel corresponds to a floor’s HVAC unit, adjusting valve opening based on thermostat data (received via the host SBC). The module’s <15 µs settling time ensures valves respond to temperature changes within 10 seconds, keeping office spaces at 22°C ±1°C. Motorola MVME215-2’s low power consumption (6W typical) also reduces the HVAC control panel’s energy usage, aligning with building efficiency goals.

Installation Commissioning and Maintenance Instructions

Installation preparation: Before installing Motorola MVME215-2, confirm the VMEbus chassis has a 3U slot and supports A16/D16 addressing. Verify the power supply provides ±5V/±12V (tolerance ±2%)—use a multimeter (0.1% accuracy) to avoid voltage ripple that causes output errors. Gather tools: anti-static wristband (to protect analog circuitry), torque screwdriver (0.3 N·m for chassis mounting), basic voltmeter (for calibration), and a laptop (for configuration via the host SBC). Use shielded twisted-pair cables (24 AWG minimum) for actuator connections—ground the shield at the chassis end to reduce EMI, and keep cables at least 10 cm away from power cables.

Maintenance suggestions: For daily upkeep, check Motorola MVME215-2’s LEDs—steady power, green channel active LEDs, and no red fault LEDs indicate normal operation. Perform bi-monthly software calibration using a 0.01% precision signal generator to verify output accuracy—adjust gain/offset if deviations exceed ±0.1% full scale. Clean the module’s vents every 4 months with compressed air (25 PSI max) to prevent overheating. If a short-circuit fault occurs, isolate the actuator (check cable continuity) and reset the module via the host SBC. Store spare Motorola MVME215-2 units in anti-static bags (15°C–25°C, 40%–60% humidity) to preserve the voltage reference’s stability.
