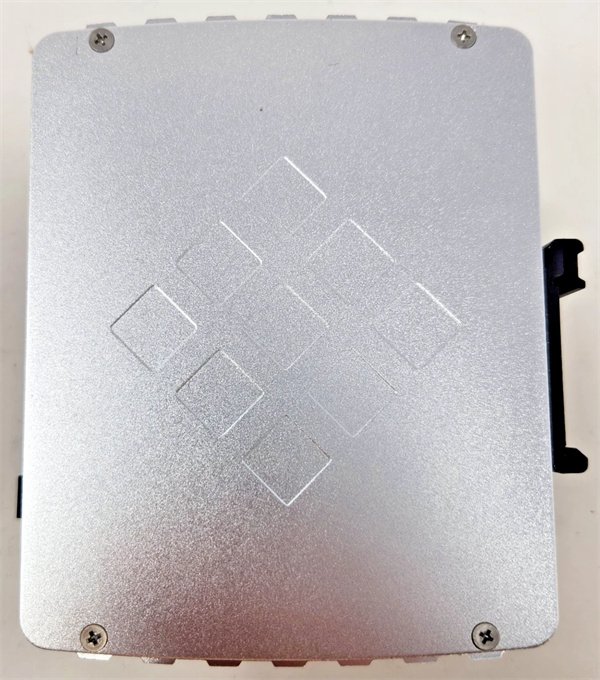

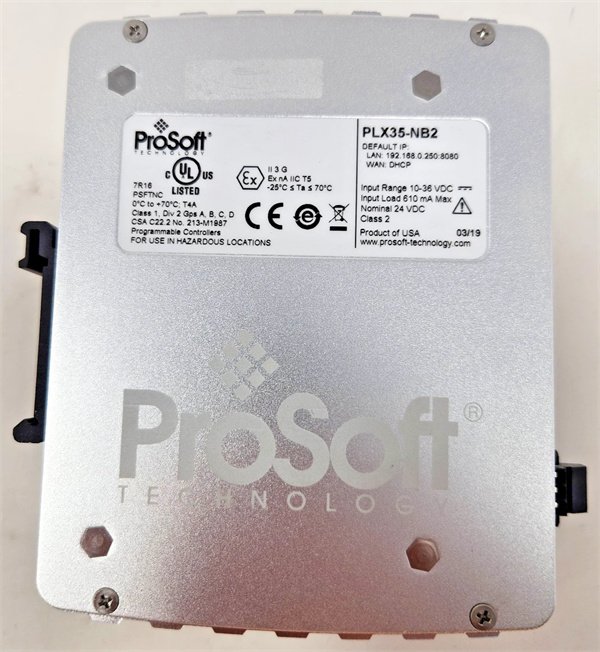

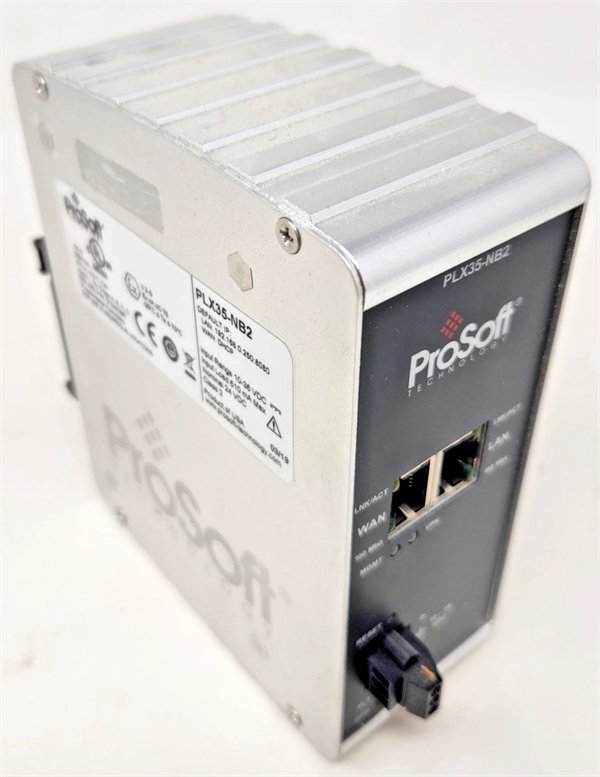

ProSoft PLX35-NB2 Industrial NB-IoT (Narrowband IoT) Gateway

The PROSOFT PLX35-NB2 is a dedicated industrial NB-IoT gateway developed by ProSoft Technology, engineered to solve the critical challenge of remote, low-power data transmission in industrial automation. Unlike traditional Ethernet or Wi-Fi gateways that rely on wired networks or high-power wireless (e.g., 4G LTE), the PROSOFT PLX35-NB2 leverages narrowband IoT technology—optimized for long-range, low-energy communication—to connect geographically dispersed devices (e.g., rural water pumps, underground sensors) to central control systems or cloud platforms.

In industries like agriculture, water utilities, and remote mining, where wired networks are impractical and battery-powered devices require long lifespans (5–10 years), the PROSOFT PLX35-NB2 acts as a “remote data bridge.” It collects data from Ethernet/IP or Modbus devices (e.g., flow meters, pressure sensors) and transmits it via NB-IoT to cloud platforms (AWS IoT, Azure IoT Hub) or central SCADA systems—all while consuming minimal power (as low as 10 mA in sleep mode). For facilities upgrading from manual data collection (e.g., on-site visits to rural pump stations), the PROSOFT PLX35-NB2 reduces operational costs by 60% and eliminates human error in data logging. Its rugged design (-30 °C to +70 °C operating temperature) and enhanced NB-IoT coverage (-148 dBm) make it suitable for the harshest remote environments, making it an indispensable tool for industrial IoT (IIoT) digital transformation.

Detailed parameter table

Core advantages and technical highlights

Ultra-Low Power Consumption for Long-Lasting Deployments: The PROSOFT PLX35-NB2 is optimized for battery or solar-powered remote sites, with a sleep mode that consumes < 10 mA—enabling battery-powered sensors to operate for 5–10 years (vs. 1–2 years with 4G gateways). A rural water utility uses the PROSOFT PLX35-NB2 to monitor 20 solar-powered well pumps: the gateway transmits pump status (flow rate, pressure) every 15 minutes in sleep mode, extending the pump’s battery life by 7 years and eliminating quarterly battery replacements. This low power also reduces solar panel size requirements, cutting initial installation costs by 30%.

Enhanced NB-IoT Coverage for Remote Areas: Unlike standard cellular gateways that struggle in weak signal areas (e.g., underground mines, rural fields), the PROSOFT PLX35-NB2 supports NB-IoT’s enhanced coverage (-148 dBm)—penetrating concrete, soil, and foliage to maintain connectivity where other wireless technologies fail. An underground mining operation uses the PROSOFT PLX35-NB2 to connect Modbus RTU gas sensors (monitoring methane levels) to a surface SCADA system: the gateway maintains a stable connection 500 meters underground, ensuring real-time gas alerts and compliance with mining safety regulations (e.g., MSHA). This coverage eliminates the need for expensive underground wired networks, saving the mine $200k in infrastructure costs.

Multi-Protocol Integration & Cloud Connectivity: The PROSOFT PLX35-NB2 supports Ethernet/IP, Modbus RTU/TCP, and MQTT—enabling seamless integration with existing industrial devices and cloud platforms. It collects data from Allen-Bradley CompactLogix PACs (Ethernet/IP) or third-party Modbus sensors, formats it into MQTT messages, and transmits it to AWS IoT or Azure IoT Hub for analytics. A renewable energy developer uses the PROSOFT PLX35-NB2 to monitor 30 off-grid solar inverters (Modbus TCP): the gateway sends inverter output data to Azure IoT Hub, where AI algorithms predict maintenance needs—reducing unplanned downtime by 40%. The gateway also supports bidirectional communication, allowing remote control (e.g., restarting a faulty inverter) via NB-IoT, eliminating the need for on-site visits.

Rugged Design & Cybersecurity Compliance: Built to withstand remote industrial environments, the PROSOFT PLX35-NB2 operates from -30 °C to +70 °C and resists vibration (10 g) and shock (50 g)—critical for oil & gas wellheads or agricultural fields. It also meets IEC 62443-3-3 cybersecurity standards, with TLS 1.3 encryption for NB-IoT data, password-protected web access, and firmware update validation. A pharmaceutical cold chain logistics company uses the PROSOFT PLX35-NB2 to monitor Modbus temperature sensors in remote refrigerated warehouses: the gateway encrypts temperature data during transmission, ensuring compliance with FDA 21 CFR Part 11, while its rugged design withstands warehouse temperature fluctuations (-20 °C to +40 °C).

Typical application scenarios

In agricultural irrigation, a large-scale farm uses the PROSOFT PLX35-NB2 to connect 50 Modbus RTU soil moisture sensors (spread across 1000 acres) to a cloud-based irrigation management platform. The gateway operates in sleep mode, transmitting sensor data every 30 minutes via NB-IoT to AWS IoT. The platform uses this data to trigger automated valve openings (via the PROSOFT PLX35-NB2’s bidirectional communication) only when soil moisture drops below a threshold—reducing water usage by 45% and increasing crop yield by 15%. The gateway’s low power consumption allows it to run on a small solar panel, eliminating the need for grid power in remote fields.

In oil & gas wellhead monitoring, an exploration company deploys the PROSOFT PLX35-NB2 to monitor 15 remote wellheads (each with an Allen-Bradley Micro800 PAC and Modbus pressure sensors). The gateway collects wellhead pressure, temperature, and flow data via Ethernet/IP/Modbus and transmits it via NB-IoT to a central SCADA system. In areas with weak cellular signals (e.g., desert wellheads), the gateway’s enhanced coverage (-148 dBm) ensures 99.9% connectivity—critical for detecting pressure spikes that indicate well integrity issues. The PROSOFT PLX35-NB2’s power-fail data retention (96 hours) also stores data during temporary power outages, ensuring no gaps in wellhead monitoring and compliance with API RP 75 standards.

In municipal street lighting, a city uses the PROSOFT PLX35-NB2 to connect 200 Modbus TCP street light controllers to a cloud-based smart city platform. The gateway transmits light status (on/off, brightness) and energy consumption data via NB-IoT to Azure IoT Hub, allowing the city to remotely adjust brightness based on traffic patterns (reducing energy use by 35%) and detect faulty lights in real time. The gateway’s DIN rail design fits into existing light pole cabinets, while its -30 °C to +70 °C operating temperature withstands seasonal temperature extremes—eliminating the need for costly on-site inspections (saving the city $50k annually).

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the PROSOFT PLX35-NB2, select a DIN rail position in a weatherproof enclosure (IP65 recommended for outdoor use) with access to NB-IoT signal (avoid metal enclosures that block signals). Gather tools: DIN rail clips, 12-24 VDC power supply (solar or battery for remote sites), Cat5e cable (for Ethernet/IP devices), shielded RS-485 cable (for Modbus RTU), and a nano-SIM card (activated with a global NB-IoT plan). Verify the SIM card’s APN settings match the gateway’s configuration (via PCB software) and test NB-IoT signal strength using the mobile app (target > -120 dBm for stable connectivity). For underground or enclosed sites, mount the gateway near a signal window or use an external NB-IoT antenna.

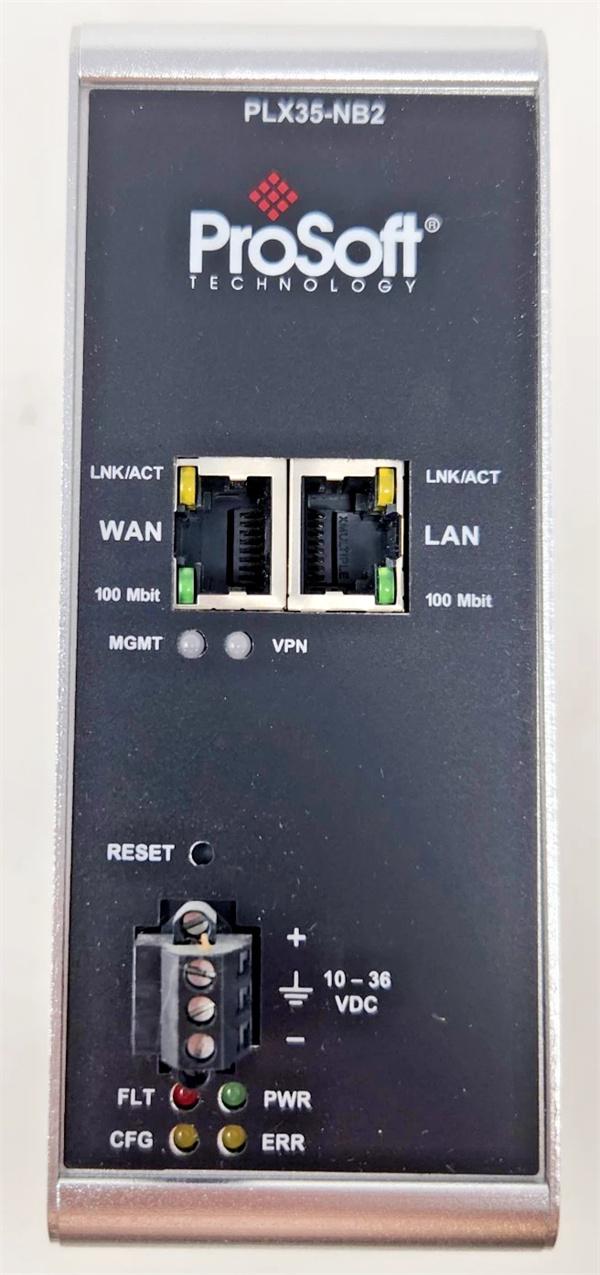

Maintenance suggestions: Conduct quarterly remote checks of the PROSOFT PLX35-NB2 via the web interface or PIGM tool: verify green “Power” LED, blinking blue “NB-IoT Link” LED, and steady yellow “Data Activity” LED. Monitor battery voltage (if applicable) and NB-IoT signal strength—address signal < -135 dBm by repositioning the gateway or adding an external antenna. Every 6 months, update the gateway’s firmware via PCB (takes < 5 minutes, no on-site visit needed) to access network compatibility improvements. For troubleshooting, if data transmission fails, check SIM card status (expired plan, signal loss) via the mobile app and verify Modbus/Ethernet wiring (use the gateway’s built-in diagnostic logs to identify faulty devices). Store a spare PROSOFT PLX35-NB2 with pre-loaded configurations for quick replacement in critical remote sites (e.g., wellheads, gas sensors).
