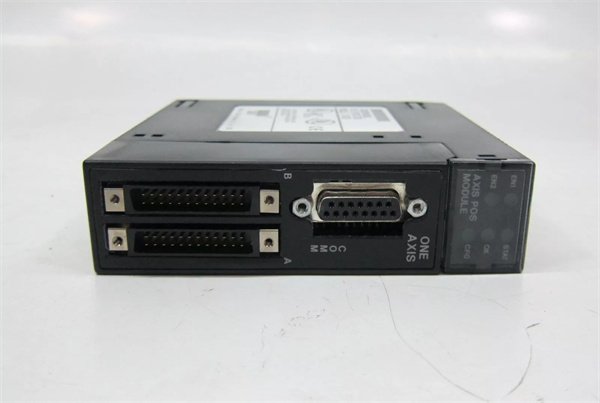

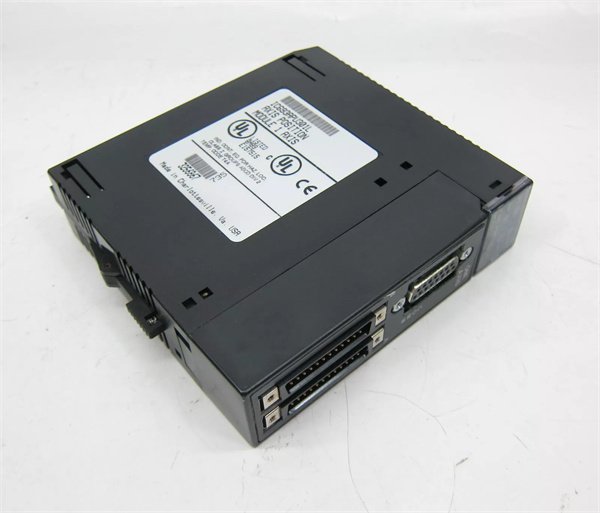

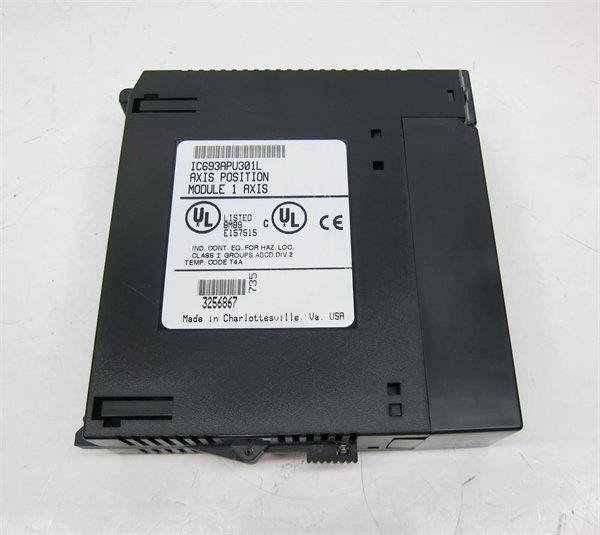

General Electric IC693APU301 Axis Positioning Module

The GE IC693APU301 is a single – axis positioning module (APM) belonging to the Series 90 – 30 programmable logic controller (PLC) platform. Initially produced by GE Fanuc and now under Emerson Automation, this module is designed to play a crucial role in industrial automation. It has a single motion axis, which is dedicated to controlling servo motors, enabling precise motion or position control. The IC693APU301 features an intelligent, microprocessor – based design. This allows it to combine PLC logic with high – performance control, making it a versatile and powerful component in the automation system. It can be configured to operate in either standard mode or follower (slave) mode, providing flexibility for different application requirements. Whether in a manufacturing plant for precise machinery movement or in a process control system, the GE IC693APU301 helps enhance the accuracy and efficiency of operations.

Technical Specifications

High – Performance Motion Control

The GE IC693APU301 offers high – performance motion control capabilities. In standard mode, it seamlessly combines PLC logic with precise motion control, creating an integrated system. This enables complex operations with high accuracy, suitable for applications where tight control over the movement of machinery is required, such as in precision manufacturing. In follower mode, it provides high – performance electronic gearing for continuous master – slave applications. This feature is useful in scenarios where one motion needs to be synchronized with another, like in conveyor – based production lines.

Easy Configuration and Programming

It is fully programmable, allowing users to integrate high – performance control into their PLC systems with relative ease. Configuration can be done through appropriate software, where users can select between standard and follower modes based on their application needs. Motion programs can be developed using the Motion Programmer software package and configured using VersaPro software version 1.1 or later, or Logic – Developer PLC. This flexibility in programming and configuration caters to different user skill levels and application requirements.

Compatibility and Expandability

The module is highly compatible with the Series 90 – 30 PLCs. It can be installed in any Series 90 – 30 CPU or expansion baseplate. For modular CPUs of model 331 or higher, up to 8 IC693APU301 modules can be installed in one system, with a maximum of 3 per baseplate. This expandability allows for the scaling of motion control capabilities as the industrial process grows or becomes more complex.

Manufacturing Industry

In manufacturing, the GE IC693APU301 is extensively used. In automotive manufacturing, it can control the precise movement of robotic arms during tasks like welding, painting, and assembly. For example, when a robotic arm needs to reach a specific position to pick and place automotive parts, the IC693APU301 ensures accurate positioning. In the electronics manufacturing sector, it is used to control the movement of pick – and – place machines. These machines need to place tiny electronic components on circuit boards with high precision, and the IC693APU301 enables such precise motion control.

Packaging Industry

In the packaging industry, the module plays a crucial role. It can control the movement of packaging machinery, such as the precise positioning of boxes on a conveyor belt for filling and sealing. For instance, when bottles need to be filled with liquid products, the IC693APU301 ensures that the bottles are accurately positioned under the filling nozzles. It also controls the movement of the sealing mechanisms, guaranteeing proper packaging and product integrity.

Material Handling

In material handling applications, like in warehouses or distribution centers, the GE IC693APU301 can be used to control the movement of automated guided vehicles (AGVs). These vehicles need to navigate through the facility and pick up or drop off goods at specific locations. The IC693APU301 provides the necessary motion control to ensure accurate navigation and positioning of the AGVs, improving the efficiency of material handling operations.

Installation and Maintenance

Pre – installation preparation: Before installing the GE IC693APU301, carefully read the installation manual provided by GE. Ensure that the Series 90 – 30 PLC system is properly powered off. Check the compatibility of the module with the existing CPU and baseplate. Clean the connection ports on both the module and the mating components to ensure a good electrical connection. Prepare the appropriate communication cables, such as the IC693CBL series cables, based on the required length and connection type.

Maintenance recommendations: Regularly inspect the IC693APU301 for any signs of physical damage, like cracks in the casing or loose connections. Monitor the LED indicators on the module; abnormal lighting of the EN1, EN2, ST ST, OK, or CFG LEDs may indicate a problem. Periodically check the servo loop update time to ensure it remains at the specified 1 – millisecond interval. If there are any issues with motion control accuracy, check the software configuration and calibration settings.

Product Guarantee

GE (now under Emerson Automation) stands behind the quality of the GE IC693APU301. The module undergoes rigorous testing during the manufacturing process to meet high – quality standards. A standard warranty period is provided, during which any defects in materials or workmanship will be rectified free of charge. Their technical support team is available to assist customers with installation, configuration, and any technical issues that may arise during the product’s lifespan. Whether it’s a problem with motion control functionality, communication, or compatibility, GE is committed to providing timely and effective solutions, giving customers confidence in their investment.
