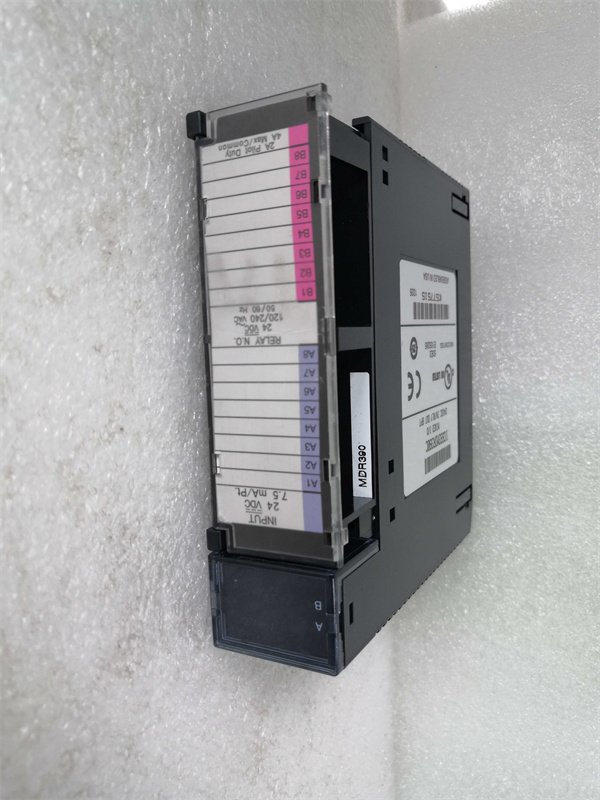

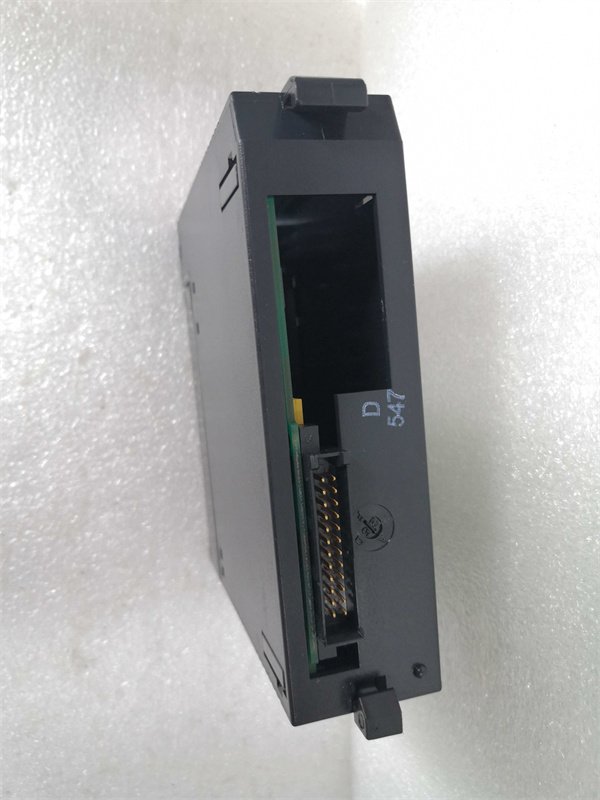

General Electric IC693MDR390 Discrete Input/Output Module

The General Electric IC693MDR390 is a discrete input/output combination module that serves as a cornerstone in the GE Fanuc Series 90–30 PLC system. This module is meticulously engineered to meet the complex demands of industrial automation, offering a reliable and efficient solution for controlling and monitoring various processes.

In the realm of industrial control, accurate signal handling and seamless integration are crucial. The IC693MDR390 steps up to the plate, featuring 8 discrete input channels and 8 normally open (N.O.) relay output channels. This configuration allows it to interface with a wide array of industrial devices, from sensors that detect the presence of objects to actuators that control machinery movement. Whether it’s in a bustling manufacturing plant or a large–scale industrial facility, this module ensures that control signals are precisely transmitted and received, enhancing the overall efficiency and reliability of the automation system.

Technical Specifications

Versatile Voltage Compatibility: The GE IC693MDR390 supports a wide voltage range for both inputs and outputs. On the input side, with a range of–30 to + 32 VDC, it can easily interface with various sensors and input devices, regardless of their voltage output. For the outputs, the ability to handle voltages from 5 to 30 VDC and 5–250 VAC (50/60 Hz) makes it suitable for controlling a diverse set of loads, such as motor starters, solenoids, and indicators.

High Isolation and Efficient Power Consumption: Boasting 1500 volts rms isolation between the field and logic side, and 500 volts rms between output groups, this module offers excellent protection against electrical interference. This isolation not only safeguards the module itself but also the connected devices. In terms of power consumption, it is designed to be efficient, with internal power consumption of 80 mA when all I/O are active and 70 mA when all outputs are energized, ensuring cost–effective operation in long–term use.

Clear Status Indicators: Equipped with LED indicators for each input and output point, the IC693MDR390 provides real–time status monitoring. The two horizontal rows of eight green LEDs, with the top row for input points (labeled A1–8) and the bottom row for relay output points (labeled B1–8), make it easy for operators to quickly identify the on/off status of each channel. This feature significantly simplifies troubleshooting, reducing downtime in case of issues.

Manufacturing Industry: In manufacturing plants, the GE IC693MDR390 is extensively used in production line control. For example, it can be connected to proximity sensors on conveyor belts to detect the presence of products. When a product is sensed, the module can then activate a relay output to control the operation of a robotic arm for sorting or packaging. In a precision–machining factory, the module’s inputs can be connected to limit switches on machine tools, and its outputs can control the solenoids that operate tool changers, ensuring accurate and efficient machining processes.

Industrial Automation Systems: In large–scale industrial automation setups, this module plays a vital role. It can be used to interface between different components of a control system. For instance, in a chemical plant, the module’s inputs can receive signals from temperature and pressure sensors, and its outputs can control the opening and closing of valves based on the sensor readings. This helps in maintaining the optimal conditions for chemical reactions, ensuring product quality and plant safety.

Power Generation Facilities: In power plants, the IC693MDR390 can be used to monitor and control auxiliary equipment. It can receive input signals from sensors that detect the status of pumps, fans, and generators. Based on these inputs, the module can then control the relays that start or stop these devices, contributing to the smooth operation of the power generation process.

Installation and Maintenance

Pre–installation preparation: Before installing the GE IC693MDR390, carefully review the installation manual provided by GE. Ensure that the Series 90–30 baseplate where it will be installed is in good condition and properly configured. Check the power supply voltage to confirm it is within the module’s input voltage range of–30 to + 32 VDC for inputs and appropriate for the output loads. Prepare the necessary tools, such as screwdrivers for securing the module in the baseplate slot. Also, make sure the installation area is clean and free from excessive dust, moisture, and electromagnetic interference.

Maintenance recommendations: Regularly inspect the IC693MDR390 for any signs of physical damage, such as cracks in the casing or loose connections. Monitor the LED indicators to check the normal operation of input and output channels. Use appropriate electrical testing equipment to verify the voltage levels at the inputs and outputs. If any abnormal behavior is detected, such as incorrect on/off status of channels or excessive heat generation, refer to the troubleshooting guide in the user manual. Clean the module gently to remove dust that could potentially affect its performance. In case of complex issues, contact GE’s technical support team for assistance.

Product Guarantee

GE stands firmly behind the quality of the IC693MDR390. The module undergoes rigorous quality control during the manufacturing process to meet high–industry standards. GE offers a standard warranty on the IC693MDR390, covering any defects in materials or workmanship. In the unlikely event of a product failure within the warranty period, GE will provide prompt repair or replacement services. Their dedicated technical support team is available around the clock to assist customers with installation, configuration, and any technical issues that may arise. This comprehensive product guarantee reflects GE’s confidence in the IC693MDR390 and commitment to ensuring customer satisfaction and long–term reliable operation in industrial applications.
