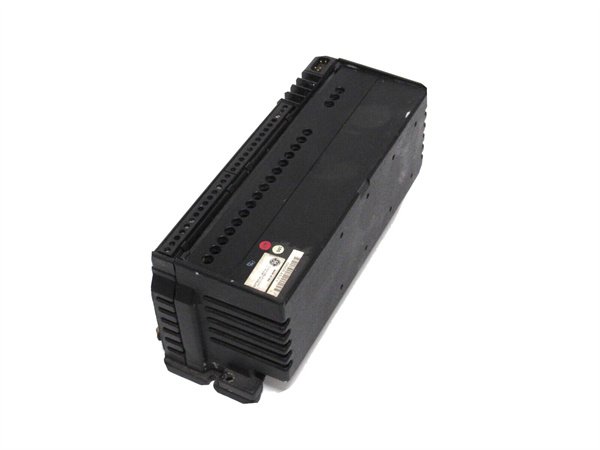

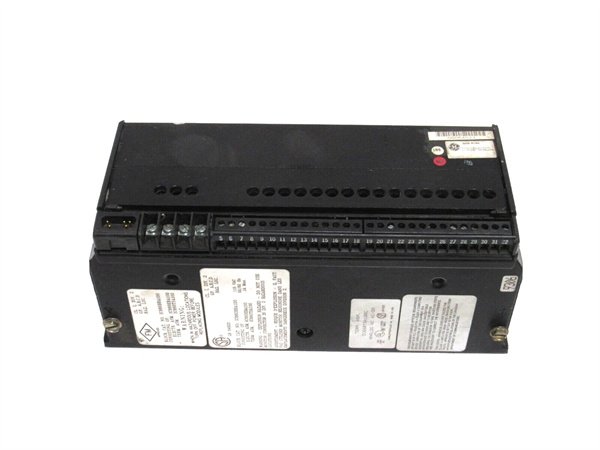

General Electric IC660ELD100A Digital Input Module
Manufacturer: General Electric
Product Number: IC660ELD100A
Category: Digital Input Module
Series: Genius I/O series
Application: Interfacing PLCs or other controllers with field devices providing precise digital input acquisition for industrial automation
Product Description
The GE IC660ELD100A is a high-performance digital input module designed for industrial automation systems. It is part of the Genius I/O series and is used to interface PLCs or other controllers with field devices. This module provides precise and reliable signal processing, making it suitable for various industrial environments.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | GE IC660ELD100A |
| Manufacturer | GE Fanuc |
| Product category | Digital Input Module |
| Operating Voltage | 24 V DC |
| Input Voltage Range | 24 V DC |
| Maximum Load Current | 2 A per channel |
| Output Type | Relay output |
| Number of Channels | 32 digital inputs |
| Communication Protocol | Genius Protocol |
| Communication Rate | 38.4K, 76.8K, 153.6K standard or 153.6K extended baud rates |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 132 mm × 45 mm × 25 mm |
| Weight | 0.5 kg |
| Certifications | UL, CE, RoHS |
Core Advantages and Technical Highlights
High-Density I/O
The GE IC660ELD100A offers 32 digital input channels, providing high-density I/O capabilities. This makes it ideal for applications requiring a large number of input points in a compact form factor.
Versatile Communication Options
The module supports the Genius protocol, ensuring seamless integration with other GE automation products and third-party devices. It can communicate effectively with other Genius-enabled devices, enabling comprehensive monitoring and control of the entire industrial network.
Enhanced Diagnostics
The GE IC660ELD100A includes advanced diagnostic features that enable real-time monitoring and troubleshooting. Users can quickly identify issues, reducing downtime and maintenance costs.
Robust Build Quality
Designed for harsh industrial environments, the IC660ELD100A offers exceptional durability and resistance to extreme temperatures, vibrations, and contaminants. This makes it ideal for applications in manufacturing, energy, and heavy industry sectors.
Scalability
The modular design allows users to scale their systems according to their needs. Whether starting with a small installation or expanding to a large, complex setup, the GE IC660ELD100A adapts effortlessly to changing requirements.
Typical Application Scenarios
The GE IC660ELD100A is widely used in industrial automation fields, including:
-
Manufacturing: Controlling production lines, monitoring machinery, and facilitating communication between various components.
-
Power Generation: Monitoring and controlling power-related equipment, ensuring stable and efficient operation.
-
Chemical and Petrochemical Industries: Regulating complex chemical processes, controlling valves, and monitoring reaction conditions.
-
Water Treatment Facilities: Managing the operation of multi-node pumps and valves, ensuring compliance with environmental regulations.
Installation Commissioning and Maintenance Instructions
Installation Preparation
Before installing the GE IC660ELD100A, ensure that the power to the entire system is switched off to avoid electrical hazards. Check the module for any visible damage, such as bent pins or cracks on the casing. Familiarize yourself with the layout of the PLC rack where it will be installed, especially the location of the IBM PC Interface Module (PCIM) to which it will be connected.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the GE IC660ELD100A. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The GE IC660ELD100A is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. GE Fanuc is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
