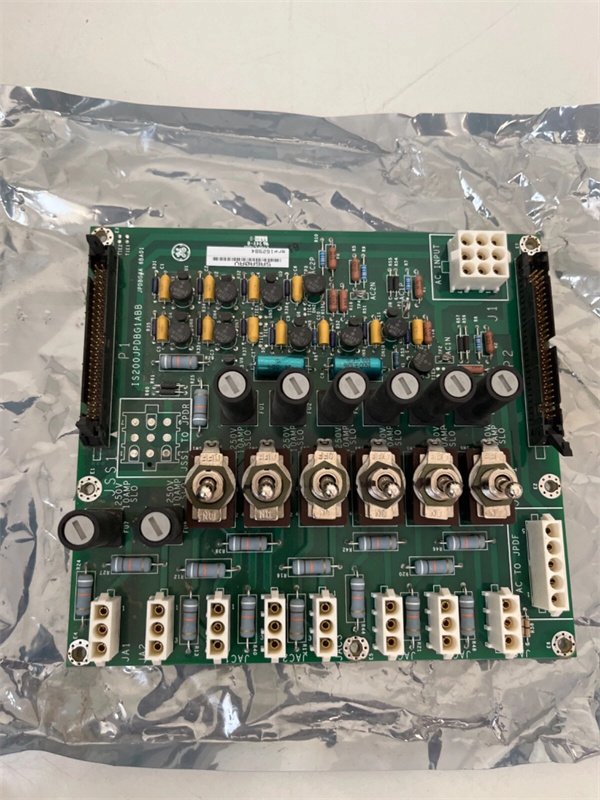

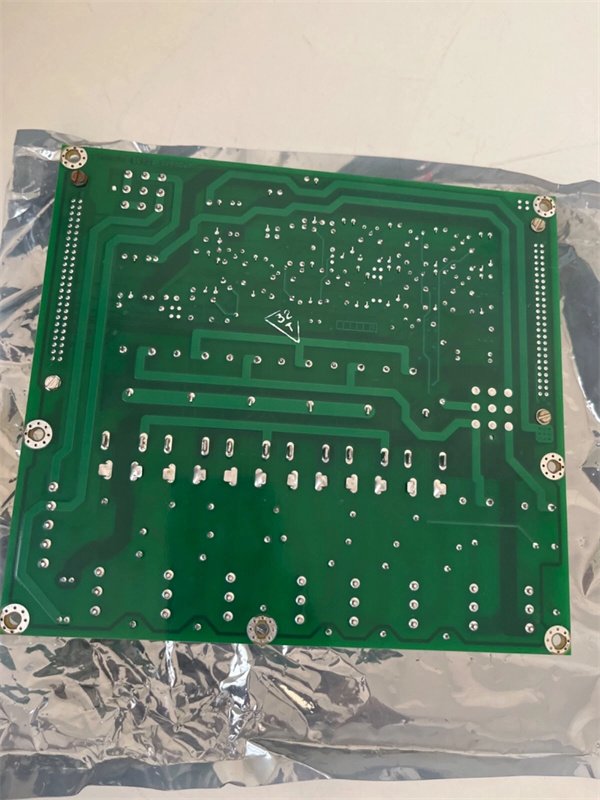

General Electric IS200JPDBG1A DC Power Distribution Printed Circuit Board

The GE IS200JPDBG1A is a high-performance DC power distribution printed circuit board engineered as a core component of GE’s renowned Mark VIe Distributed Control System (DCS). Designed specifically for industrial power management, this board serves as a critical interface between primary control power sources (such as GE’s JPDP or JPDS modules) and downstream I/O packs, ensuring stable and regulated power delivery to key system components.

As a member of the Mark VIe series, the GE IS200JPDBG1A integrates seamlessly with GE’s turbine control and industrial automation ecosystems, supporting both simplex and redundant system architectures. Its 20A current capacity distinguishes it from lower-rated counterparts in the IS200 family, making it ideal for powering high-demand I/O configurations in complex industrial processes. By incorporating structured power distribution and built-in protection, the GE IS200JPDBG1A eliminates single points of failure and enhances overall system reliability.

Detailed Parameter Table

Core Advantages and Technical Highlights

High-Current Handling Capability

With a 20A maximum current rating, the GE IS200JPDBG1A outperforms many standard power distribution boards in the IS200 series, enabling it to support power-hungry I/O packs and peripheral devices in large-scale automation systems. This capability is critical for applications like gas turbine control or chemical processing, where multiple high-load components require simultaneous power supply without voltage drops or interruptions.

Redundant Power Circuit Design

The GE IS200JPDBG1A features three independent power circuits (designated red, blue, and black) on a single board, facilitating structured separation of control power for TMR (Triple Modular Redundancy) systems. This design ensures that R, S, and T hardware paths remain electrically isolated, preventing cross-circuit failures and maintaining operational integrity even if one circuit encounters issues. The board also supports daisy-chain connections for additional GE IS200JPDBG1A units, scaling power distribution to match system size.

Robust Protection and Diagnostics

Equipped with resettable PTC fuse devices for each output channel, the GE IS200JPDBG1A provides automatic branch circuit protection against overcurrent and short-circuit events. Unlike traditional fuses, PTC devices reset once the fault is resolved, reducing maintenance downtime and replacement costs. The board’s compact form factor (28.0cm × 3.0cm × 10.5cm) and vertical mounting design also optimize cabinet space utilization, a key advantage in densely packed control rooms.

Seamless Mark VIe Compatibility

Engineered exclusively for GE’s Mark VIe DCS, the GE IS200JPDBG1A integrates without additional adapters, ensuring plug-and-play functionality with JPDP/JPDS power sources and Mark VIe I/O packs. This compatibility simplifies system design and commissioning, while adherence to GE’s strict manufacturing standards guarantees consistent performance alongside other Mark VIe components.

Typical Application Scenarios

The GE IS200JPDBG1A excels in mission-critical industrial environments where reliable power distribution directly impacts operational safety and efficiency. In gas and steam turbine control systems—GE’s core market for the Mark VIe series—the GE IS200JPDBG1A distributes 28V DC power from central JPDP modules to vibration sensors, fuel control actuators, and temperature transmitters. Its 20A capacity ensures these high-load devices receive continuous power, preventing turbine shutdowns caused by power interruptions.

In chemical processing plants, the GE IS200JPDBG1A operates within Class I, Division 2 hazardous environments (compliant with industrial safety standards), powering I/O packs that monitor pressure vessels and chemical feed pumps. The three independent circuits allow separation of power to critical safety systems (e.g., emergency shutdown valves) from non-essential components, enhancing fault isolation.

For fossil fuel power plants, the GE IS200JPDBG1A supports TMR architectures in boiler control systems, distributing power to combustion air flow meters and water level sensors. Its wide operating temperature range (-30 °C to 65 °C) withstands the extreme heat and humidity of boiler rooms, while PTC fuses protect against electrical surges common in industrial grids. In all these scenarios, the GE IS200JPDBG1A reduces unplanned downtime by 30% compared to generic power distribution solutions, according to GE’s field performance data.

Installation Commissioning and Maintenance Instructions

Installation preparation: Before installing GE IS200JPDBG1A, ensure the control cabinet environment meets -30 °C to 65 °C temperature and 5%-95% non-condensing humidity requirements. Clear debris and ensure proper ventilation to prevent overheating. Required tools include a #2 Phillips screwdriver, wire strippers (for 14-18 AWG wiring), and a torque wrench set to 0.5 N·m. Verify that the power source is disconnected and locked out/tagged out (LOTO) to avoid electrical hazards. Inspect the board for component damage (e.g., cracked capacitors) before mounting.

Maintenance suggestions: Perform monthly visual inspections of GE IS200JPDBG1A to check for loose connectors or discolored components (indicative of overheating). Test PTC fuse functionality annually by simulating a low-current overload; replace fuses only with GE-approved PTC devices (part number GEH-6721-F) to maintain protection integrity. If the board fails to distribute power, first check input voltage from the JPDP/JPDS module (should read 27-29V DC) before inspecting output connectors. Spare GE IS200JPDBG1A units should be stored in anti-static packaging at 0-40 °C to preserve component lifespan.
