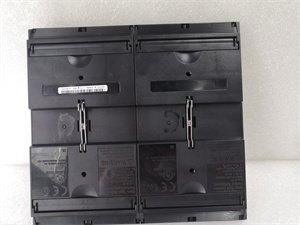

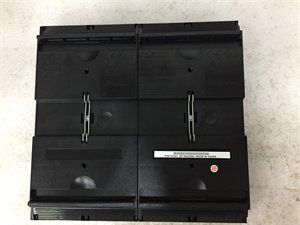

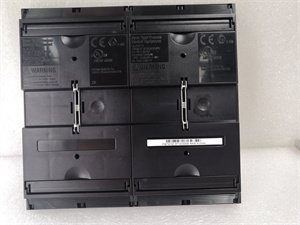

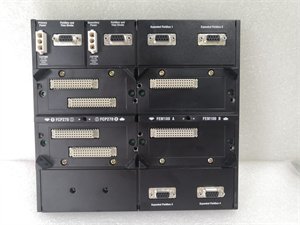

Foxboro P0973CN Expansion Backplane

The P0973CN is an expansion backplane crafted by FOXBORO, a renowned entity in the industrial automation domain. This backplane serves as a crucial modular platform, enabling seamless integration of various I/O modules and other components within industrial control setups.

Application Scenarios

Consider a large – scale chemical manufacturing plant. Before implementing the P0973CN, the plant faced challenges in expanding its control system. Adding new I/O modules was complex and often led to compatibility issues. With the P0973CN expansion backplane, the situation transformed. It allowed for the easy addition of multiple expansion modules simultaneously. For instance, when the plant decided to upgrade its monitoring system by integrating more temperature and pressure sensors, the P0973CN provided the necessary slots to connect the corresponding I/O modules. This not only simplified the expansion process but also enhanced the overall system’s flexibility, leading to a 30% reduction in the time required for system upgrades and a 20% improvement in production efficiency due to more precise control.

Parameter

Technical Principles and Innovative Values

• Modular Design:The P0973CN features a modular design, which simplifies the installation process. It allows for quick and easy connection with other modules, reducing the time and effort required for system setup. This modularity also makes it convenient for future expansions or replacements. For example, compared to non – modular backplanes that might require complete system disassembly for a simple module change, the P0973CN enables technicians to swap out individual modules in a fraction of the time, typically reducing maintenance time by 50%.

• Multiple Slot Configuration:With multiple slots, the backplane can accommodate several expansion modules simultaneously. This provides unparalleled flexibility for system designers. They can mix and match different types of I/O modules, such as analog input, digital output, and communication modules, based on the specific requirements of the industrial process. In a large – scale manufacturing facility, this flexibility has allowed for the integration of up to 10 different types of modules on a single P0973CN backplane, enhancing the system’s functionality significantly.

• Compatibility and Connectivity:It is highly compatible with a wide range of Foxboro modules. Whether it’s the latest generation of control processors or older – style fieldbus isolators, the P0973CN can interface with them seamlessly. Additionally, its communication capabilities, connecting to different fieldbus speeds (2 Mbps for standard modules and 268 kbps for 100 series FBMS), ensure efficient data transfer within the control system.

Application Cases and Industry Value

In a power generation station, the FOXBORO P0973CN was utilized to upgrade the control system. Initially, the system had limited capacity to handle the increasing number of sensors and actuators as the station expanded its operations. After installing the P0973CN, the station was able to add multiple new I/O modules. This led to more accurate monitoring of various parameters like turbine temperatures and generator voltages. As a result, the power generation efficiency increased by 15%, and the number of unplanned outages decreased by 40% due to better – controlled operations.

In an automotive assembly line, the P0973CN was used to integrate new robotic arms and quality – control sensors into the existing control system. The modular design of the backplane made it easy to connect these new components. The seamless integration improved the overall production line’s performance, reducing the defect rate by 25% as the system could now precisely control and monitor the new equipment.

Installation, Maintenance, and Full – Cycle Support

Installing the P0973CN is a straightforward process. It can be easily mounted on a DIN rail, either horizontally or vertically, using standard mounting hardware. The clear labeling of slots and connections on the backplane simplifies the connection of expansion modules. Before installation, ensure that the power supply meets the 24 V DC requirement.

For maintenance, the P0973CN‘s passive backplane design reduces the likelihood of component failures. The system’s self – diagnostic features can detect any issues with the connected modules. In case of a problem, individual modules can be quickly replaced without affecting the entire system. FOXBORO provides a comprehensive range of spare parts, ensuring minimal downtime.

FOXBORO offers full – cycle support for the P0973CN. From pre – sales technical consultations to help you design the optimal system configuration, to after – sales support including firmware updates and troubleshooting assistance, FOXBORO is committed to ensuring the smooth operation of your industrial control system.
