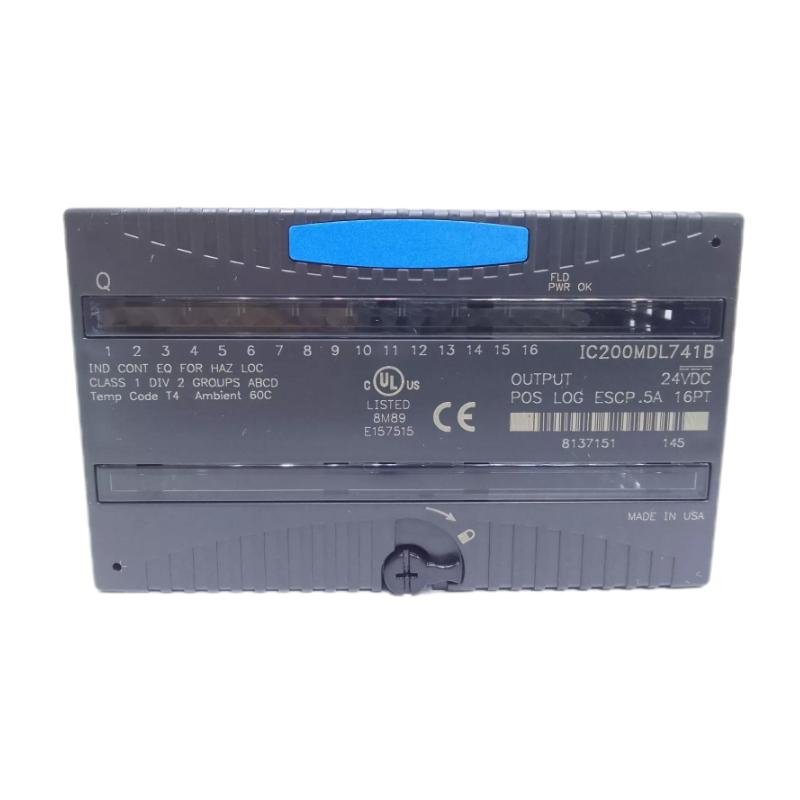

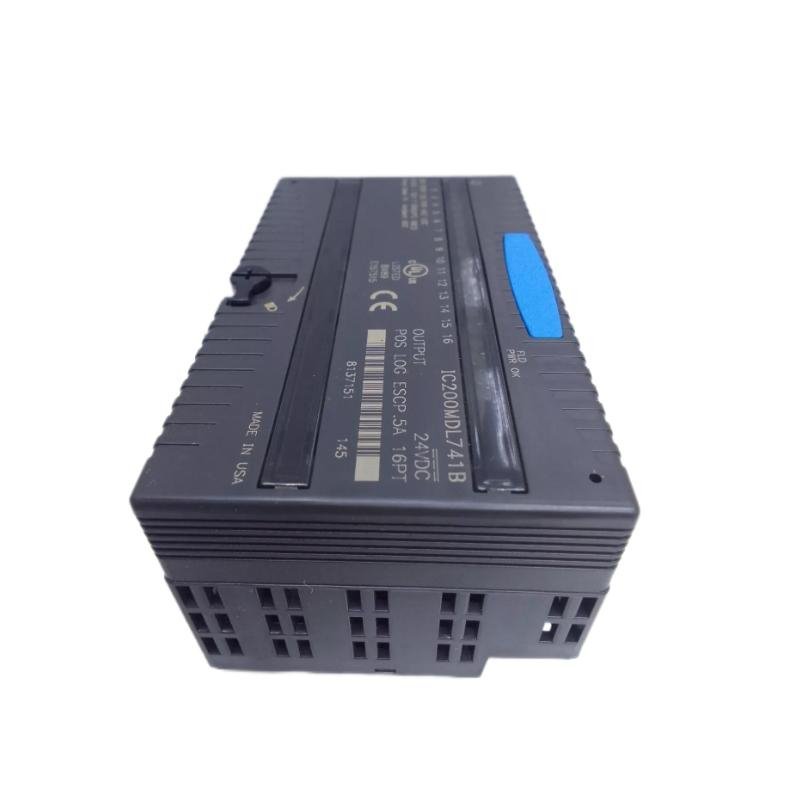

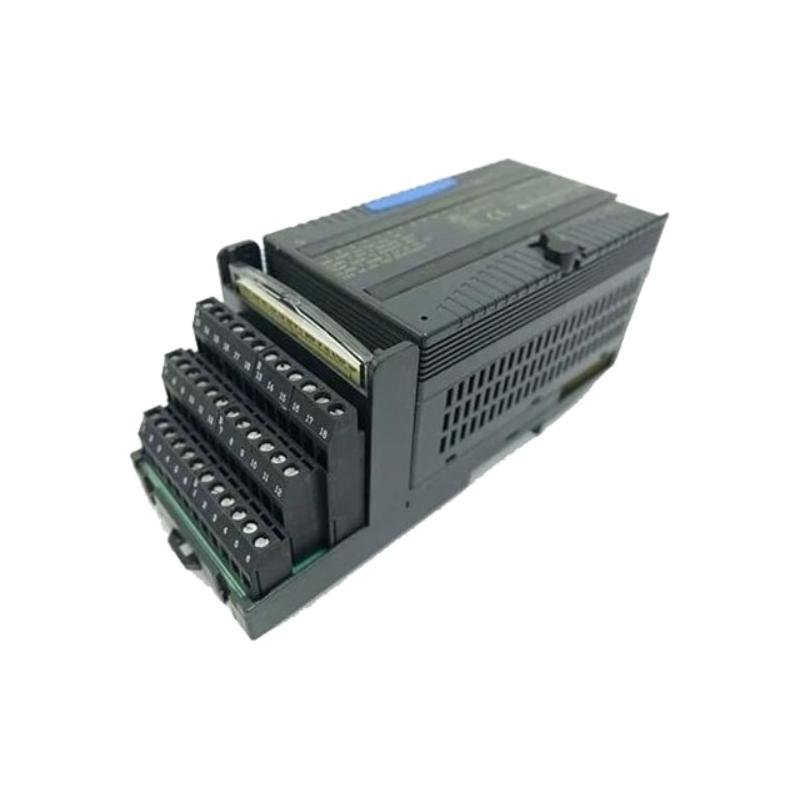

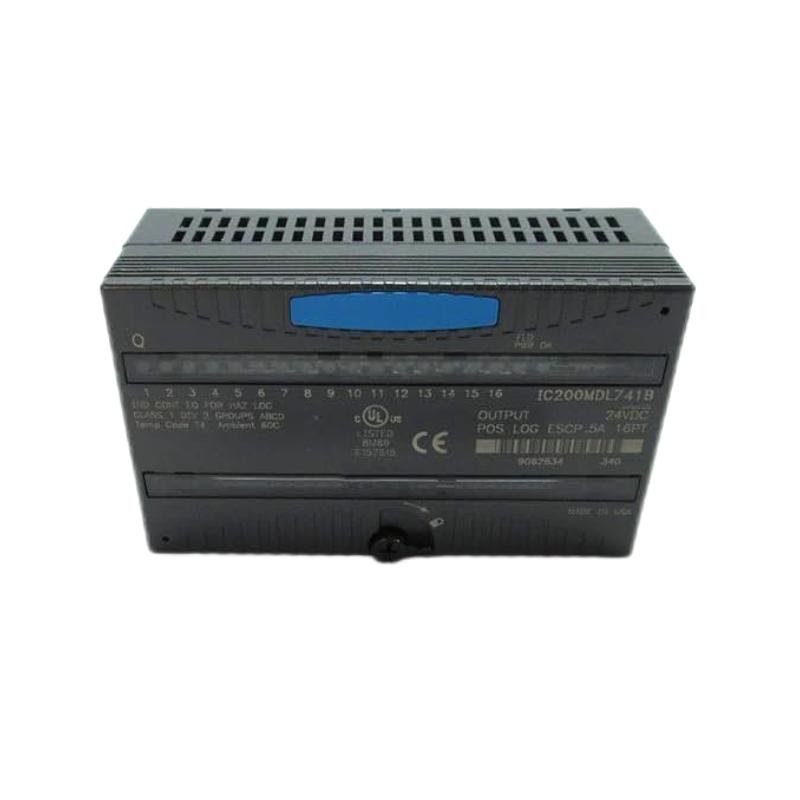

General Electric IC200MDL741B VersaMax Discrete Output Module

The GE IC200MDL741B is a VersaMax discrete output module designed to provide efficient and reliable digital output control for industrial automation applications. This module belongs to the VersaMax PLC (Programmable Logic Controller) family, which is widely known for its compact design, high performance, and flexible configuration options.

The IC200MDL741B is a 24V DC positive logic output module with 16 output points, making it suitable for various industrial applications, including manufacturing, process control, and infrastructure automation. It is engineered to withstand harsh industrial environments while maintaining efficient operation and high-speed response times.

This module is designed for direct interfacing with industrial actuators, relays, and other control elements, making it a key component in distributed control systems. It offers optical isolation for circuit protection, ensuring enhanced reliability and longevity.

Key Features and Benefits

1. 16 Discrete Outputs

   • Provides 16 output channels, enabling control of multiple devices simultaneously.

2. Positive Logic (Sourcing Outputs)

   • The module operates using positive logic, meaning that a HIGH signal (ON state) provides 24V DC output.

3. Fast Switching Response

   • Supports rapid output state changes, making it ideal for high-speed automation processes.

4. Optical Isolation for Circuit Protection

   • Incorporates optical isolation between the field side and logic side, ensuring protection against voltage spikes and electrical noise.

5. Compact and Space-Efficient Design

   • The small form factor allows for efficient panel mounting, optimizing space utilization in control cabinets.

6. LED Status Indicators

   • Features LED indicators for each output channel, providing real-time status monitoring and diagnostics.

7. Flexible Configuration Options

   • Compatible with VersaMax PLCs and other GE control systems, allowing seamless integration into existing automation architectures.

8. Wide Operating Temperature Range

   • Designed to operate under harsh industrial conditions, including extreme temperatures and humidity levels.

9. Low Power Consumption

   • Designed for energy-efficient operation, reducing overall power costs in large-scale industrial systems.

10. Durable and Reliable

    • Built with high-quality industrial-grade components, ensuring long operational life and minimal maintenance requirements.
