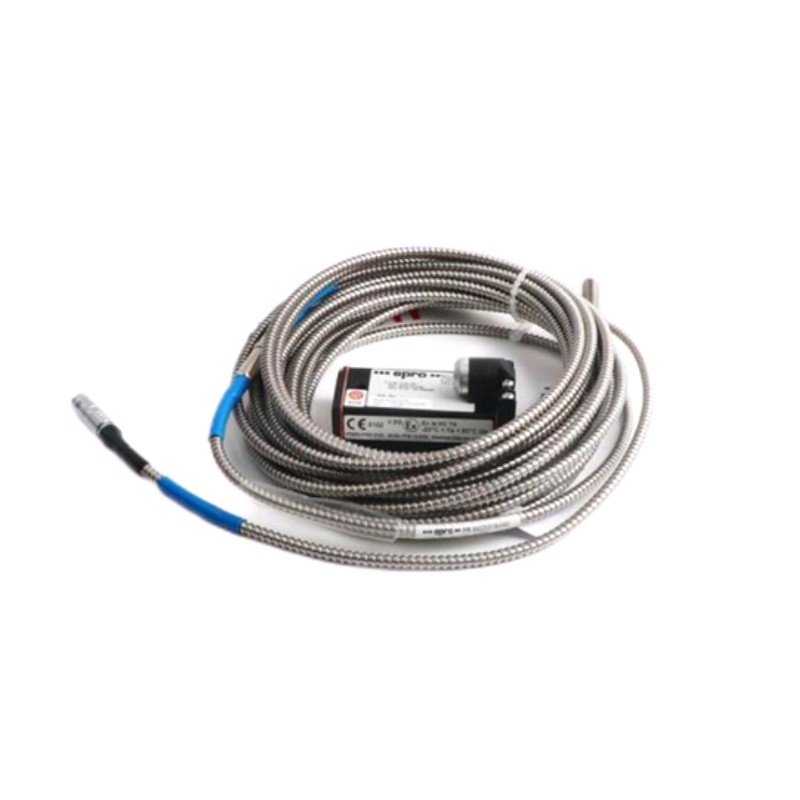

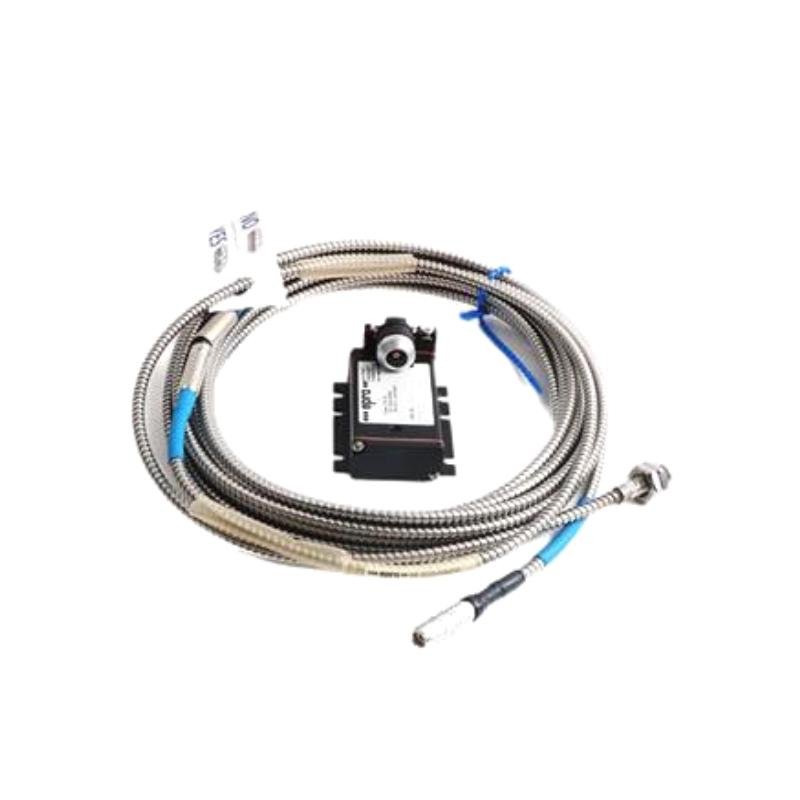

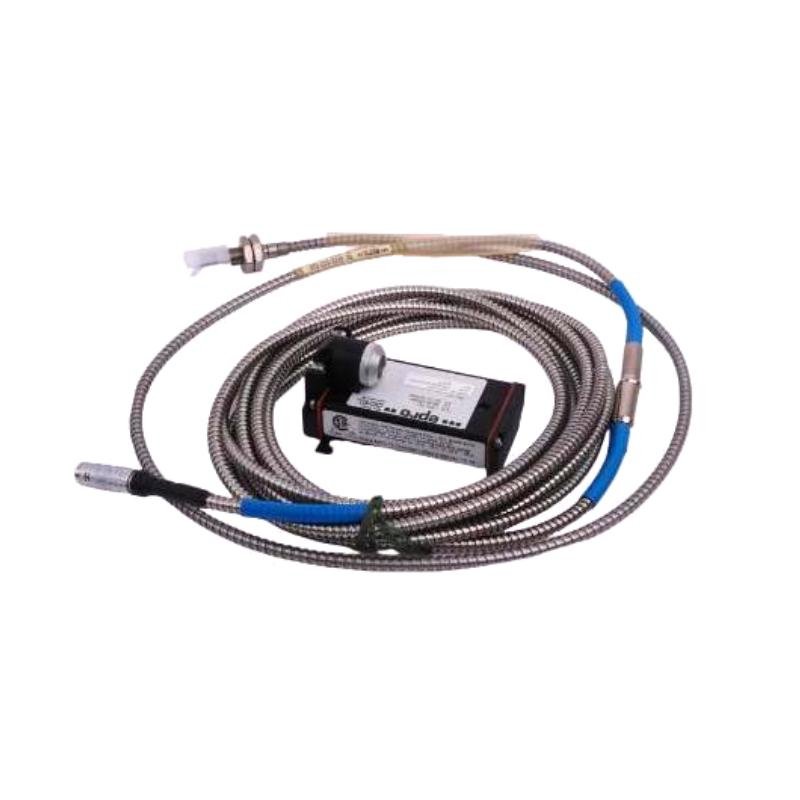

Epro PR6423/010-010+CON021 8mm Eddy Current Sensor
Manufacturer: Epro GmbH
Product Number: PR6423/010-010+CON021
Category: 8mm Eddy Current Sensor
Probe Diameter: 8 mm
Measurement Range: 2 mm (80 mils)
Output Sensitivity: 8 V/mm (typical)
Frequency Response: 0-10 kHz
Temperature Range: -35°C to +180°C
Product Description
The Epro PR6423/010-010+CON021 is a high-performance eddy current sensor designed for precise non-contact displacement and vibration measurement in industrial rotating machinery. This sensor, paired with the CON021 converter, provides highly accurate readings of shaft displacement, position, and vibration in turbines, compressors, pumps, and motors.
With its robust design and high reliability, this sensor is widely used in condition monitoring systems for critical machinery, ensuring continuous operation, early fault detection, and predictive maintenance. The 8mm probe tip makes it suitable for applications where compact and accurate measurement is required.
Product Specifications
| Specification | Details |
|---|---|
| Model Number | PR6423/010-010 |
| Converter Model | CON021 |
| Measurement Principle | Eddy Current (Non-contact) |
| Measuring Range | 0–2.0 mm |
| Output Signal | 4–20 mA / 0–10V |
| Sensitivity | 8 mV/µm (typical) |
| Frequency Response | 0–10 kHz |
| Operating Voltage | -24 VDC |
| Power Consumption | < 1 W |
| Operating Temperature | -35°C to +85°C |
| Storage Temperature | -40°C to +100°C |
| Protection Rating | IP65 |
| Cable Length | 5m / 9m / Custom |
| Probe Material | Stainless Steel |
| Mounting Type | Threaded Mounting |
| Shock Resistance | 100g |
| Vibration Resistance | 10g @ 10–500 Hz |
| Sensor Head Diameter | 8 mm |
| Weight | 0.22 kg |
Product Applications
The PR6423/010-010+CON021 eddy current sensor is used in various industrial applications, including:
- Turbomachinery Monitoring–Detects shaft displacement, misalignment, and vibration in gas and steam turbines.
- Compressors–Ensures stable operation by monitoring shaft movement and detecting potential mechanical faults.
- Pumps–Monitors shaft position and early signs of wear to prevent unexpected failures.
- Electric Motors & Generators–Provides real-time feedback on rotor-stator positioning for optimized performance.
- Gearboxes–Detects excessive wear, misalignment, and gear mesh abnormalities.
- Rolling Mills & Paper Machines–Ensures proper shaft alignment and reduces mechanical stress.
- Marine Propulsion Systems–Monitors bearing wear and shaft vibrations in ship engines.
- Oil & Gas Processing Plants–Used in high-risk environments for predictive maintenance in critical rotating equipment.
Product Advantages
- Highly Accurate Measurement–Provides precise shaft displacement and vibration readings.
- Non-Contact Sensing–Eliminates mechanical wear and ensures long-term reliability.
- Robust Design–Withstands harsh industrial environments, including high temperatures and vibrations.
- Wide Frequency Response–Suitable for detecting both low- and high-frequency vibrations.
- Flexible Installation–Available in various cable lengths and mounting options.
- IP65 Protection–Ensures resistance against dust, moisture, and industrial contaminants.
- Low Power Consumption–Efficient design reduces power requirements and operational costs.
- Compatible with Various Systems–Easily integrates into condition monitoring and protection systems.
