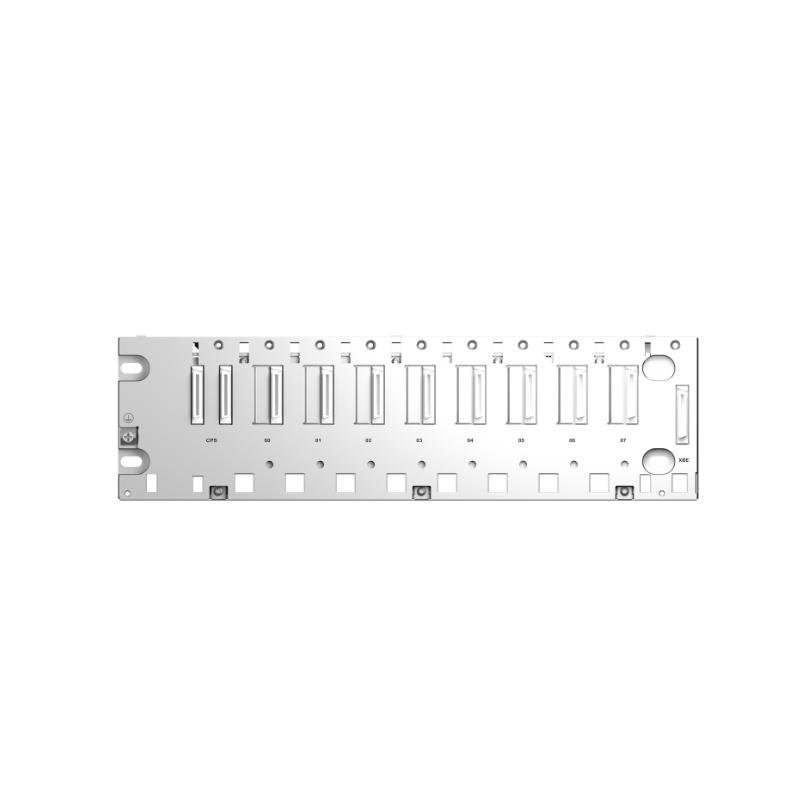

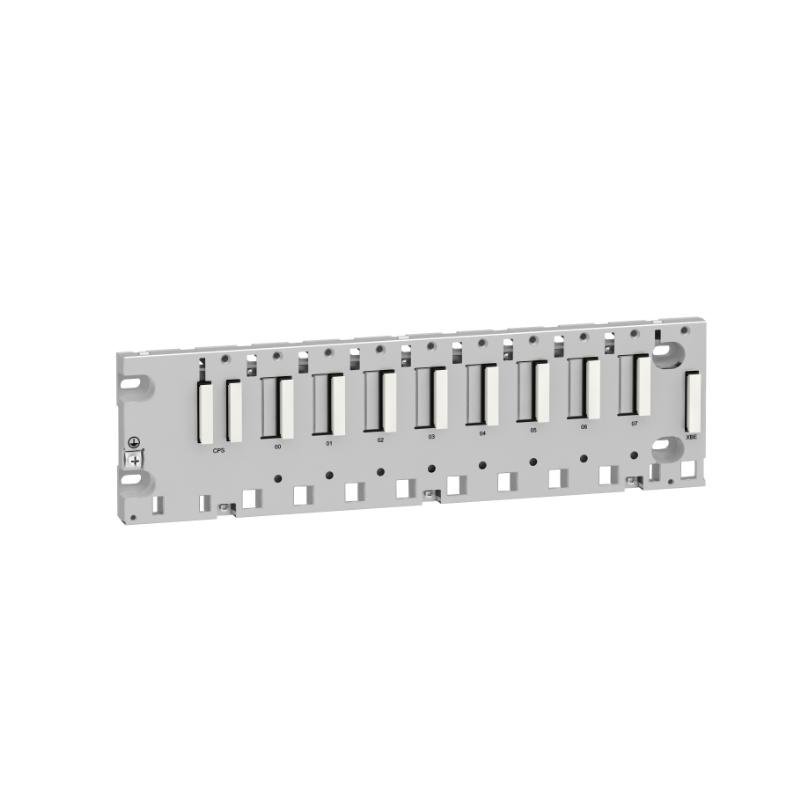

Schneider BMXXBP0800 8-slot Modicon M340 Automation Rack
Manufacturer: Schneider Electric
Product Number: BMXXBP0800
Category: 8-slot Automation Rack (Modicon M340 system)
Number of Slots: 8
System Compatibility: Modicon M340 automation system modules
Function: Provides flexible and robust platform for modular control system expansion
Product Description
The Schneider BMXXBP0800 8-slot Automation Rack is designed to house Modicon M340 automation system modules, providing a flexible and robust platform for modular control system expansion. Supporting up to eight slots, this rack enables convenient installation of CPUs, power supplies, and I/O modules to build scalable automation architectures. Its rugged design ensures reliable operation in industrial environments while facilitating easy maintenance and system upgrades.
Key Features
-
8 Modular Slots–Accommodates CPUs, power supplies, communication, and I/O modules
-
Robust Construction–Designed for industrial use with durable materials
-
Easy Installation–Quick mounting and wiring for efficient setup
-
Integrated Power and Signal Distribution–Simplifies system wiring and reduces installation time
-
Compact Design–Optimizes panel space while supporting high module density
-
System Scalability–Enables flexible expansion as automation needs grow
-
Compatibility–Fully compatible with Modicon M340 series modules
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 103.7 x 307.6 x 19 mm |
| Weight | 0.95 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Slot Count | 8 slots |
| Power Distribution | Integrated backplane power and signal bus |
| Voltage Rating | Supports 24 VDC modules |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +55°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Shock/Vibration | IEC 60068-2 compliant |
System Compatibility
| Item | Specification |
|---|---|
| Platform | Schneider Electric Modicon M340 |
| Module Type | Automation Rack |
| Module Support | Supports M340 CPUs, I/O, power, and communication modules |
Industry Applications
-
Manufacturing–Modular control system infrastructure for production lines
-
Water and Wastewater–Scalable control rack for treatment facilities
-
Energy Management–Rack platform for electrical system automation
-
Building Automation–Supports integration of control modules for building systems
-
Food and Beverage–Provides flexible automation rack for process control
The Schneider BMXXBP0800 8-slot Modicon M340 Automation Rack offers a reliable and scalable foundation for building modular automation systems. Its flexible slot configuration and rugged design make it an ideal choice for diverse industrial control applications.
