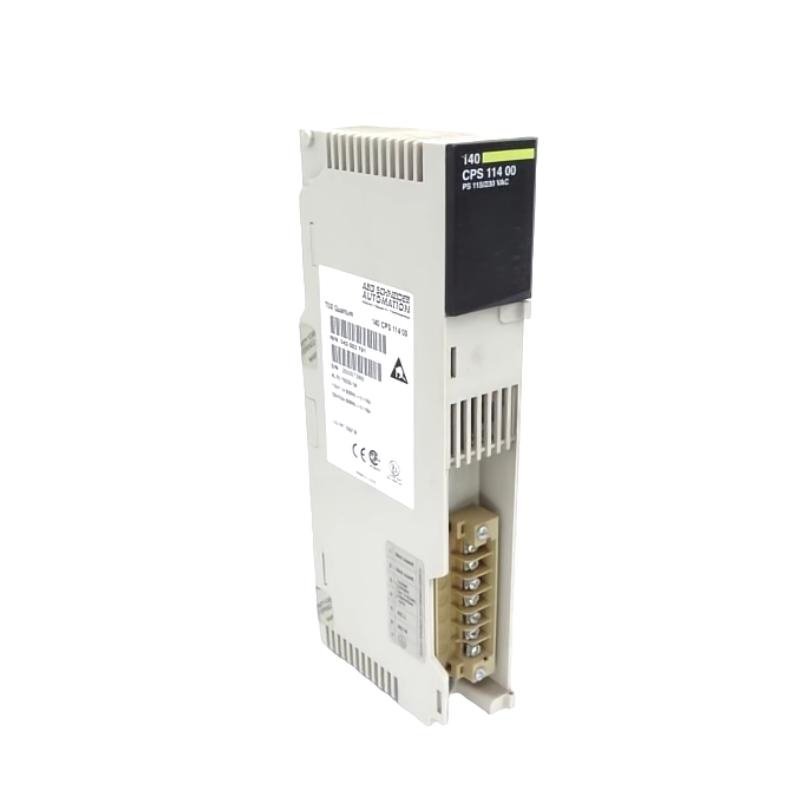

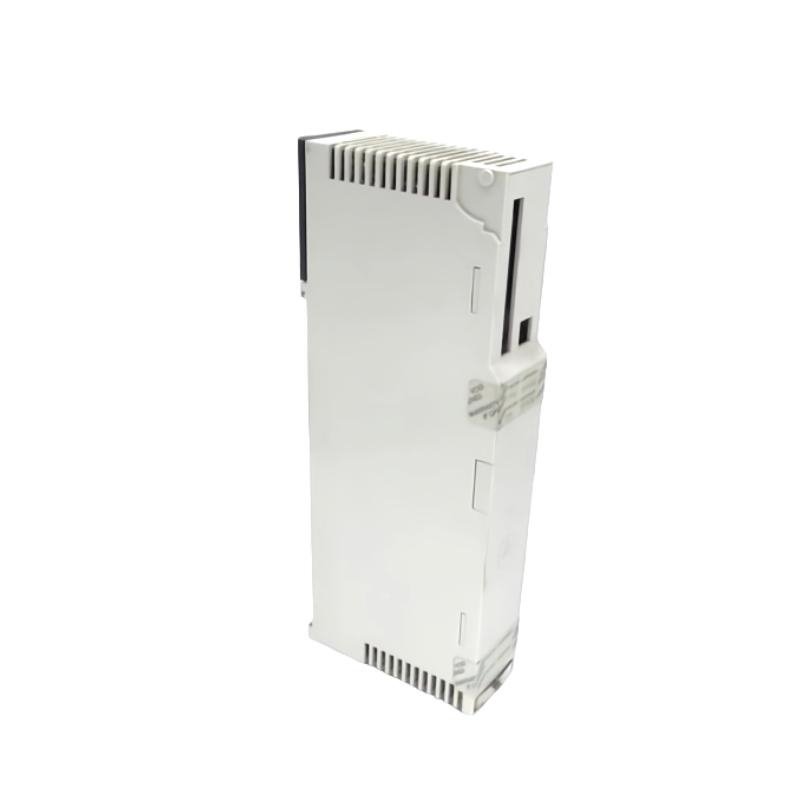

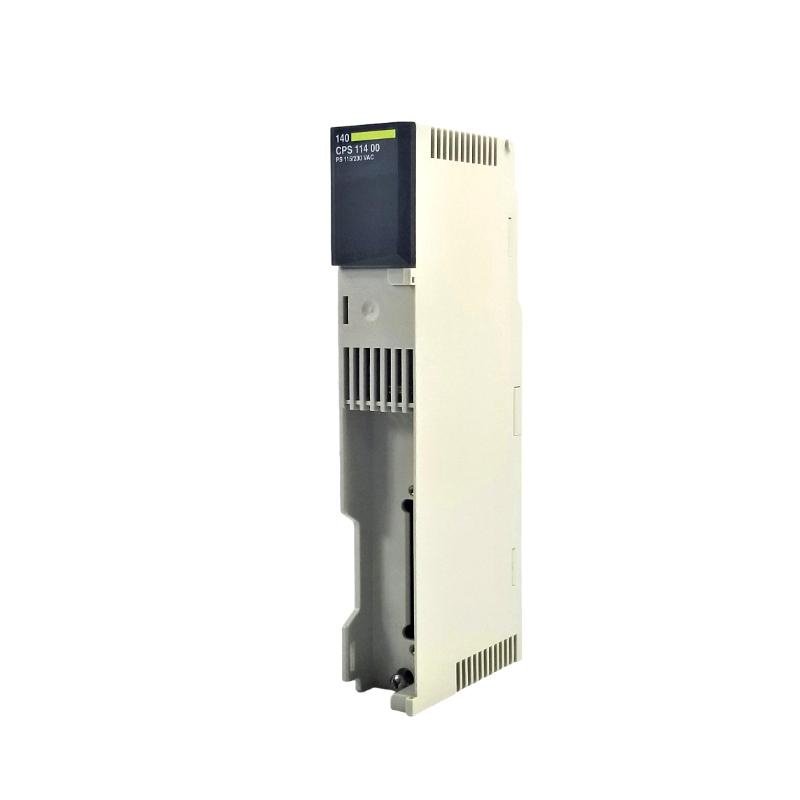

Schneider 140CPS11400 Power Module
Manufacturer: Schneider Electric
Product Number: 140CPS11400
Category: 24 VDC Power Supply Module (Modicon Quantum PLC)
Input Voltage: 115/230 VAC selectable
Output Voltage: 24 VDC
Output Current: 8 A (typical)
System Compatibility: Modicon Quantum PLC systems
Product Description
The Schneider 140CPS11400 is a 24 VDC power supply module designed for use in Modicon Quantum PLC systems. It delivers reliable and consistent power to the backplane and installed modules, ensuring system integrity and continuous operation. This unit supports redundant power configurations, allowing two modules to operate in parallel for increased system availability and fault tolerance. Its compact size and robust design make it an essential component in high-performance automation architectures.
Key Features
-
24 VDC Input Power–Delivers regulated power for Quantum backplanes and modules
-
Redundant Operation Support–Two units can be used simultaneously for increased reliability
-
High Load Capacity–Supplies up to 8 A total output current
-
Hot-Swappable–Enables replacement without system shutdown
-
Status Indicators–Built-in LEDs for power status and diagnostics
-
Compact Design–Efficient use of space in control cabinets
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Package size 44 x 152 x 305 mm |
| Weight | Package weight 0.92 kg |
Mechanical & Physical Characteristics
| Item | Specification |
|---|---|
| Mounting Type | Quantum rack-mounted |
| Module Type | Power supply module |
| Cooling Method | Natural convection |
| Indicators | LED for module and system status |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage Range | 24 VDC nominal (18–30 VDC) |
| Output Voltage | Regulated for Quantum backplane |
| Output Current | 8 A total max |
| Redundancy Capability | Yes (with second 140CPS11400 unit) |
| Inrush Current | < 30 A @ 24 VDC |
| Output Protection | Short circuit and overload protection |
Environmental Ratings
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Shock Resistance | IEC 60068-2-27 compliant |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Schneider Modicon Quantum PLC systems |
| Backplane Support | All standard Quantum racks |
| Recommended Use | Power supply for CPUs, I/O, communication modules |
Industry Applications
-
Oil & Gas–Powering critical automation in refinery and pipeline systems
-
Water & Wastewater–Reliable power for control systems in treatment facilities
-
Energy & Utilities–SCADA and control infrastructure in substations and plants
-
Manufacturing–Consistent PLC operation in high-volume industrial settings
-
Pharmaceuticals–Ensures continuous automation in GxP-compliant environments
The Schneider 140CPS11400 Power Module provides dependable power delivery and supports redundancy to meet the demands of mission-critical automation systems. It’s an ideal power solution for maintaining the uptime and integrity of Quantum-based control environments.
