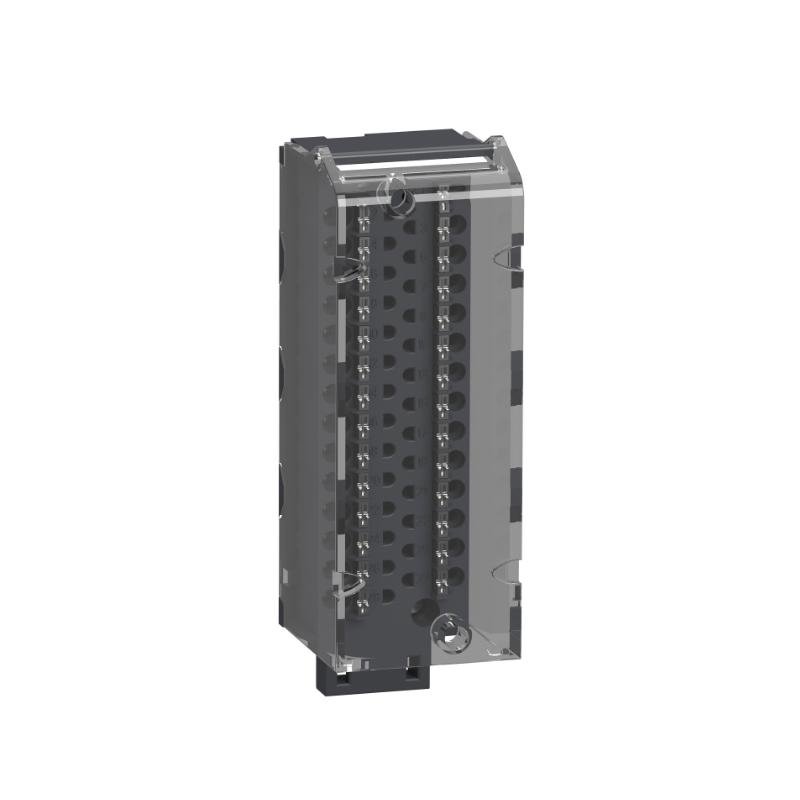

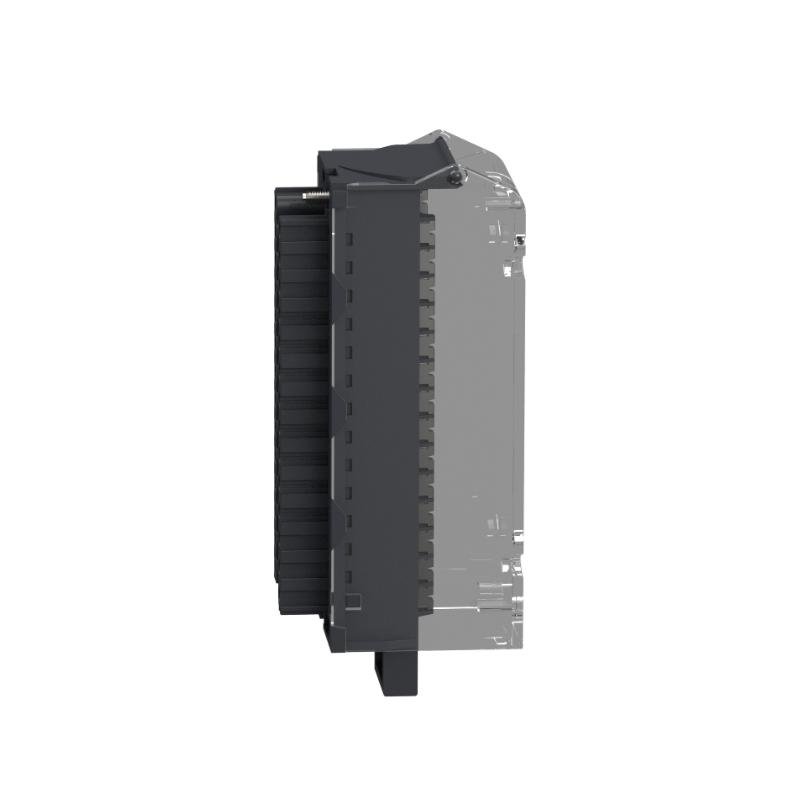

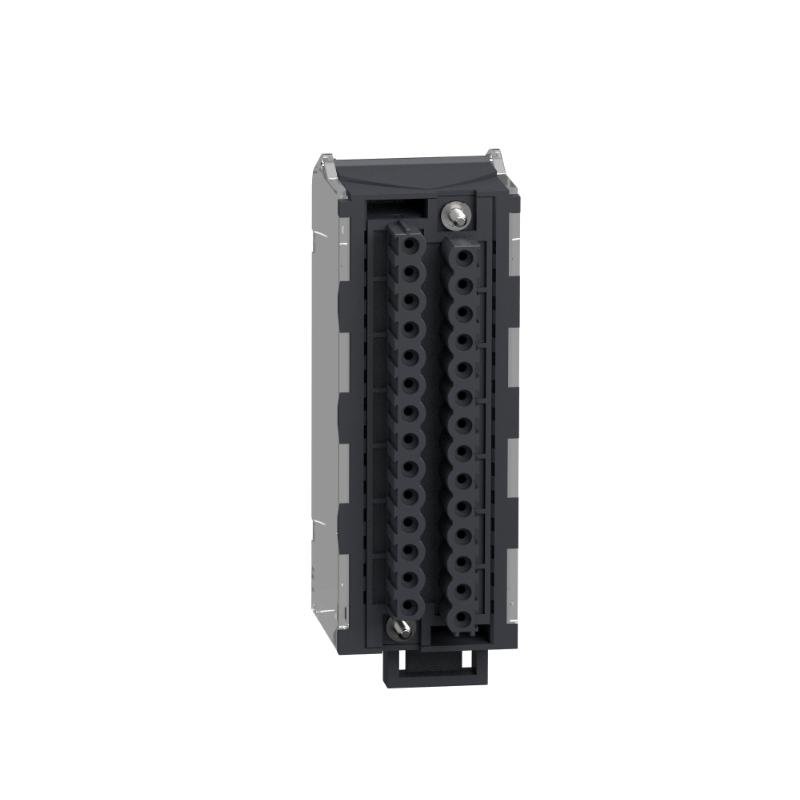

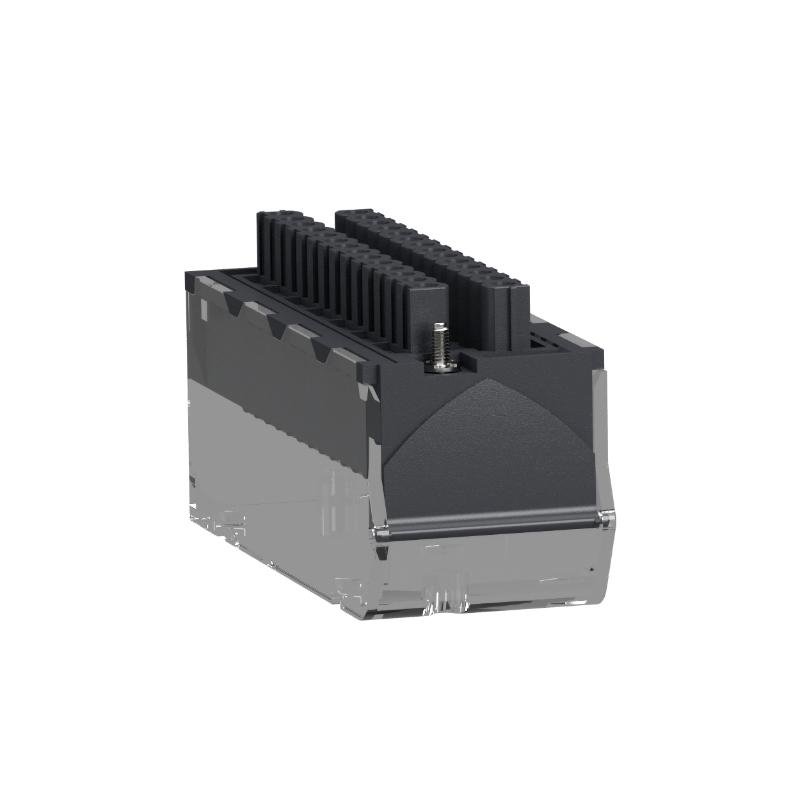

Schneider BMXFTB2820 28-pin Removable Spring Clamp Terminal Block

The Schneider BMXFTB2820 28-pin Removable Spring Clamp Terminal Block is an essential component designed to provide secure and efficient termination for industrial automation systems. This terminal block features a 28-pin configuration with removable spring clamp terminals, making it ideal for use in applications where flexibility, reliability, and ease of maintenance are critical.

With its spring clamp technology, the BMXFTB2820 ensures a firm connection with minimal effort, allowing for quick wiring and easy disconnection when needed. The removable terminal block design facilitates system maintenance, while its compact size makes it suitable for use in a variety of industrial environments, including control panels, distributed control systems, and more.

Key Features

• Spring Clamp Technology–Provides secure, vibration-resistant connections without the need for additional tools, ensuring reliable performance in industrial environments

• Removable Design–The terminal block can be easily removed for maintenance or system upgrades, simplifying servicing and reducing downtime

• 28-Pin Configuration–Accommodates up to 28 separate connections, making it ideal for applications that require multiple field wiring connections in a single terminal block

• Compact and Space-Efficient–The compact size makes it easy to integrate into control panels and automation systems, optimizing space utilization in tight enclosures

• Wide Compatibility–Compatible with Schneider Electric PLCs, I/O modules, and other control devices, enabling seamless integration into Schneider’s Modicon and other industrial automation platforms

• Durability–Built to withstand harsh industrial conditions, including vibration, shock, and temperature variations, ensuring long-term reliability

• Easy Installation and Maintenance–Designed for quick installation with user-friendly spring clamp connections, reducing wiring time and improving productivity

• Labeling and Identification–Includes clear marking options for easy identification and improved troubleshooting

Technical Specifications

Mechanical Specifications

Electrical Specifications

Environmental Specifications

System Compatibility

Industry Applications

• Industrial Automation–Ideal for wiring connections in control panels and automation systems, ensuring reliable and secure terminations for I/O devices and PLCs

• Control Systems–Suitable for applications requiring multiple I/O terminations with quick and secure wiring connections

• Machine Control–Provides reliable connections for industrial machines, ensuring safe operation and easy maintenance

• Energy and Utilities–Supports field wiring connections in energy and utility control systems, including substations and power generation facilities

The Schneider BMXFTB2820 28-pin Removable Spring Clamp Terminal Block offers a high-quality and flexible solution for managing wiring connections in industrial automation systems. Its durable, easy-to-install design, combined with removable spring clamp technology, ensures that it delivers reliable and secure performance in a wide range of industrial applications.
