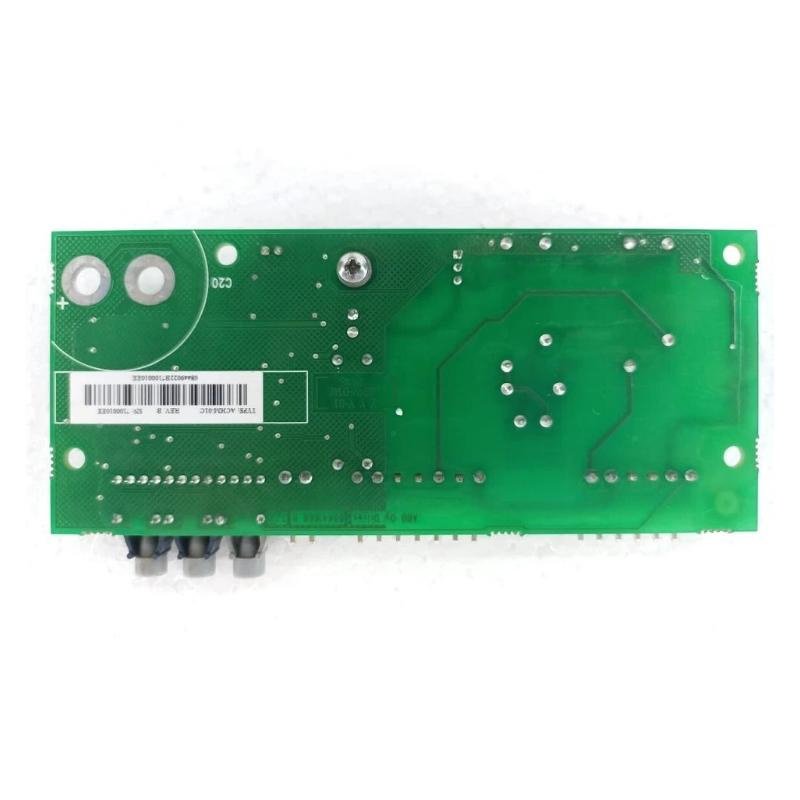

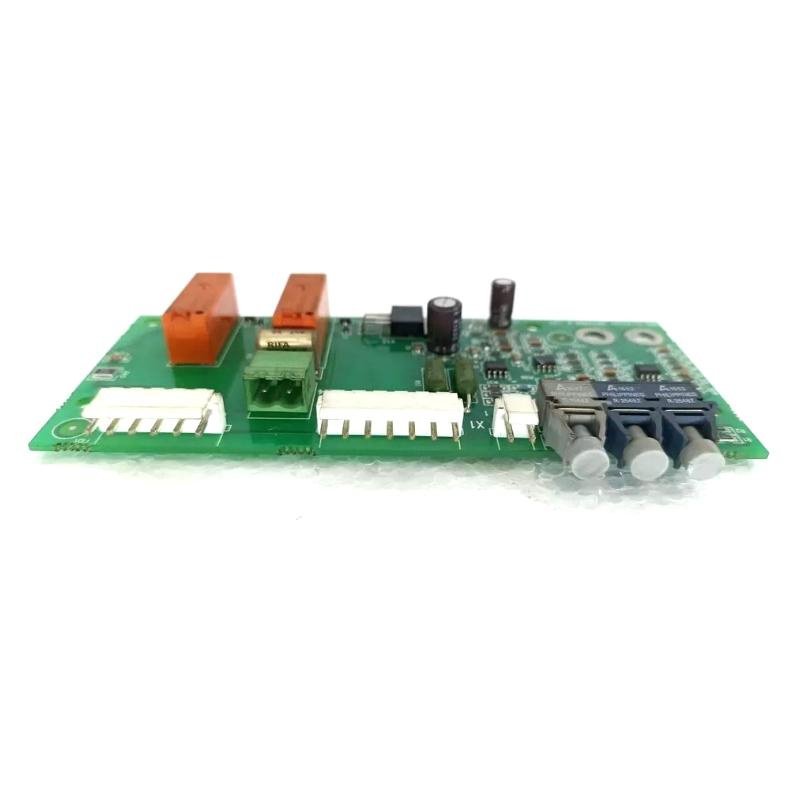

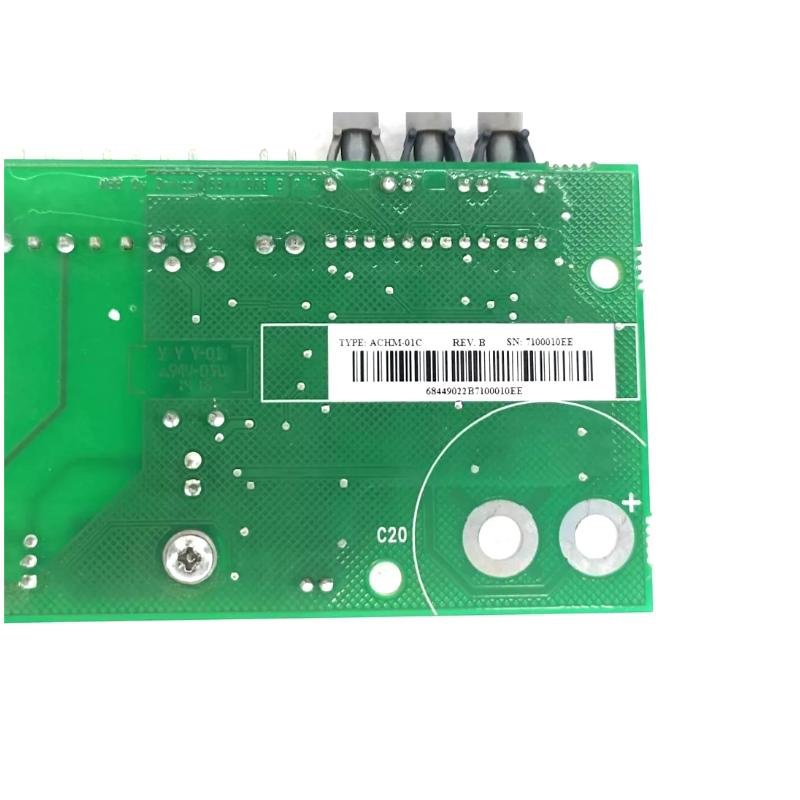

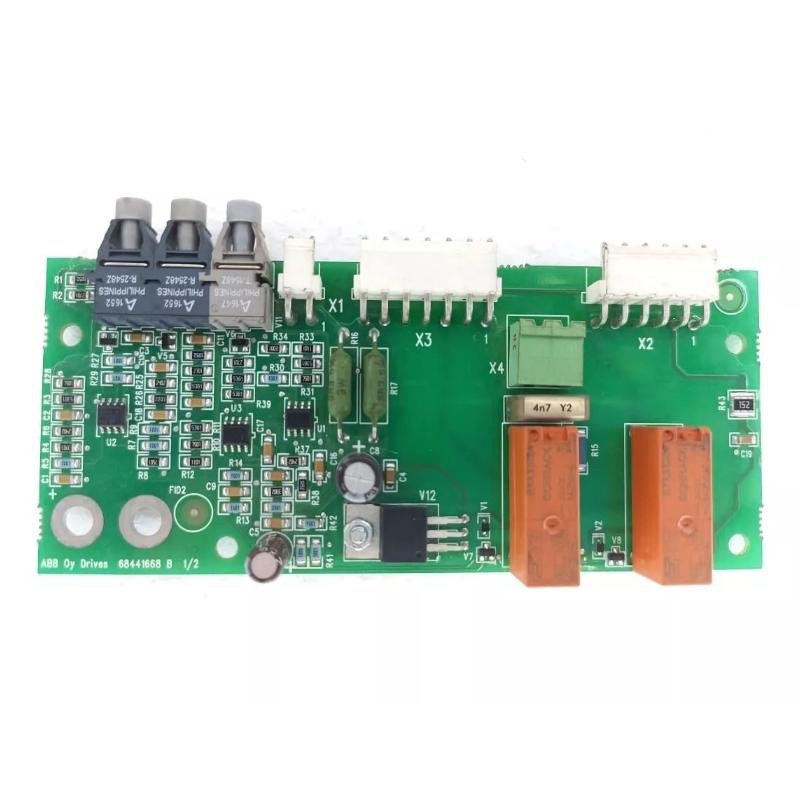

ABB ACHM-01C 68449022 Inverter Accessories
Manufacturer: ABB
Product Number: ACHM-01C (68449022)
Category: Handheld Control Module (Inverter Accessories)
System Compatibility: ABB inverter drives
Function: Enables local control, parameter adjustment, and status monitoring directly from the inverter
Product Description
The ABB ACHM-01C 68449022 is a handheld control module designed as an accessory for ABB inverter drives. It enables local control, parameter adjustment, and status monitoring directly from the inverter without needing external tools or a PC. Featuring a user-friendly interface and robust construction, the ACHM-01C enhances usability and simplifies commissioning, troubleshooting, and maintenance tasks for various motor control applications.
Key Features
-
Handheld control panel for ABB inverters
-
Enables local operation, monitoring, and parameter configuration
-
LCD screen with intuitive menu navigation
-
Supports multilingual display for global use
-
Plug-and-play connection with ABB drives
-
Lightweight and portable with rugged housing
-
Ideal for commissioning, maintenance, and diagnostics
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 60 x 140mm |
| Weight | 0.14 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | Powered directly from the inverter drive |
| Display Type | LCD alphanumeric display |
| Communication Interface | RS-485 / Control panel interface port |
| Keypad | 7–10 function keys + navigation arrows |
| Language Support | Multi-language (including English, Chinese, etc.) |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +50°C |
| Storage Temp | -20°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 (for indoor use) |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Drives | ABB inverter drives (e.g., ACS series) |
| Connection Method | Direct plug-in or via extension cable |
| Application Type | Motor control setup, diagnostics, parameter tuning |
Industry Applications
-
HVAC Systems–Local motor control for fans, pumps, and compressors
-
Water and Wastewater–On-site configuration and monitoring of drive systems
-
Industrial Automation–Easy access for technicians during drive commissioning
-
Building Management–Drive tuning in distributed control environments
-
Manufacturing–Diagnostic interface for plant floor maintenance teams
The ABB ACHM-01C 68449022 handheld module provides a practical and efficient interface for managing ABB inverter drives locally. Its portability and intuitive operation make it indispensable for field technicians and maintenance engineers working in diverse industrial sectors.
