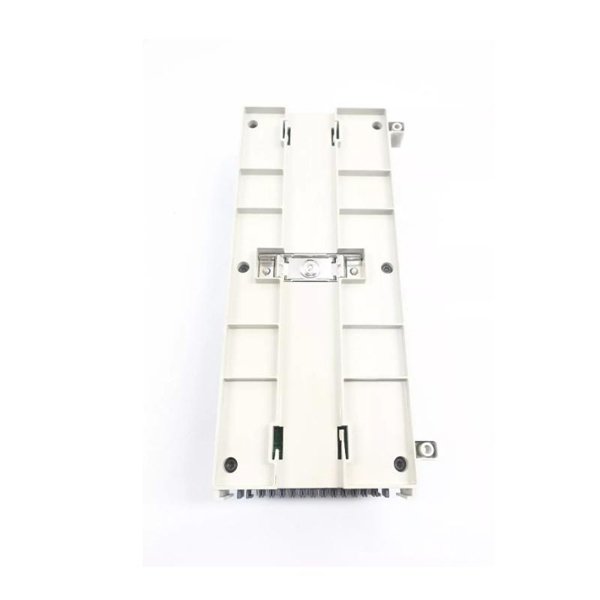

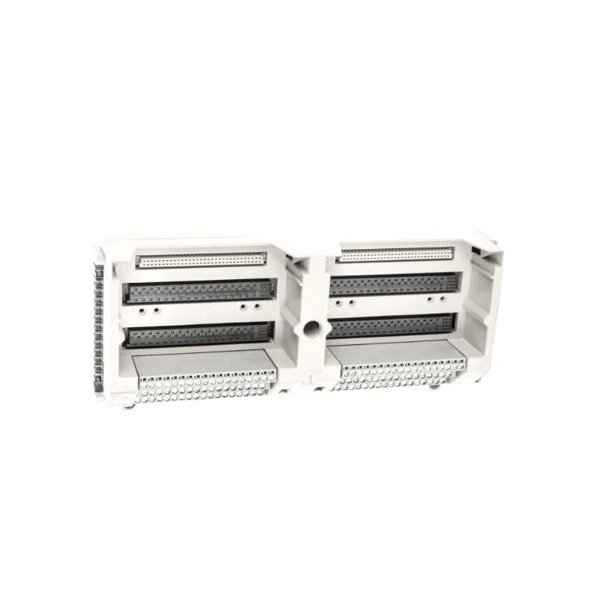

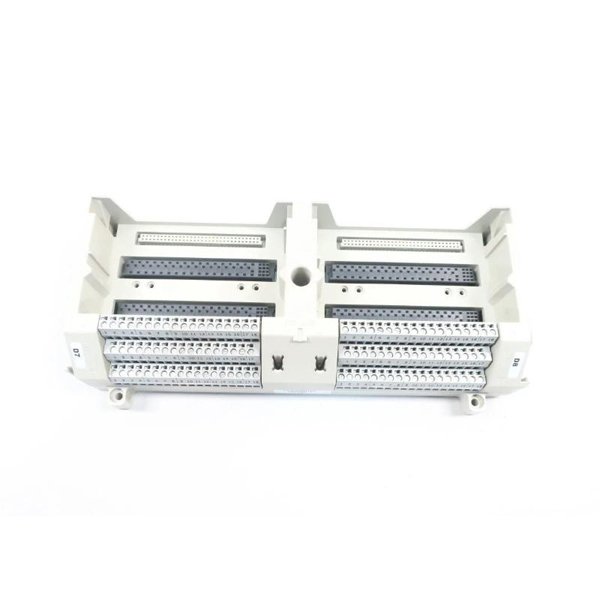

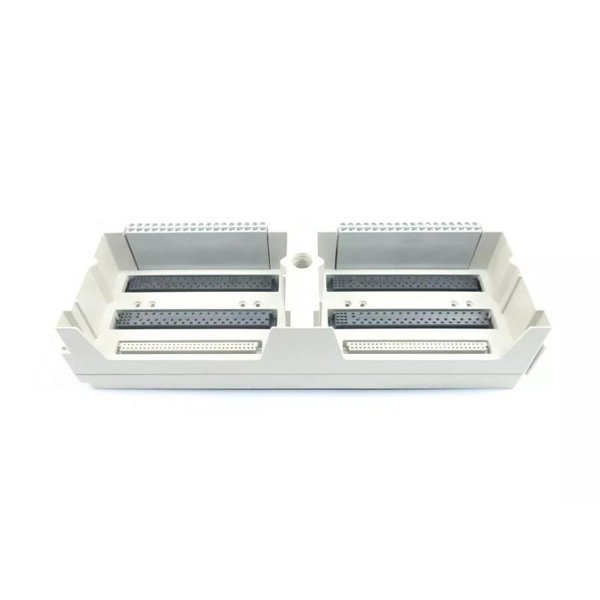

The Emerson Ovation 1B30035H01 is a 2-slot standard I/O base assembly used in Ovation Distributed Control Systems (DCS). It is engineered to serve as a physical and electrical interface for various Ovation I/O modules. This base ensures secure module mounting and efficient communication paths, forming the foundation of reliable industrial process control systems.

Technical Specifications

Applications

• Power generation control systems

• Water and wastewater treatment facilities

• Oil and gas process automation

• Chemical and petrochemical plants

• Pulp and paper mill control systems

Advantages

• Factory-Certified Quality: Ensures compatibility, longevity, and performance.

• Compact Design: Ideal for installations where space is limited.

• Standardization: Integrates seamlessly with the entire Ovation I/O suite.

• Ease of Maintenance: Simplified replacement due to modular slot-based architecture.

• Robust Construction: Durable design for industrial environments.

• Enhanced Reliability: Reduced downtime with proven Ovation system performance.

Frequently Asked Questions (FAQ)

Q1: What is the function of the 1B30035H01 base assembly?

A1: It provides a mechanical and electrical platform for mounting Ovation I/O modules in a 2-slot configuration.

Q2: Is the 1B30035H01 compatible with all Ovation modules?

A2: It is compatible with most standard Ovation I/O modules designed for 2-slot base integration.

Q3: Can this base be used in high-temperature environments?

A3: It supports the standard operating temperature range of the Ovation system enclosure.

Q4: What materials are used in the base’s construction?

A4: The base is constructed with industrial-grade plastic and metal components for durability.

Q5: Does the product include any certifications?

A5: Yes, it is factory-certified by Emerson for use in Ovation control systems.

Q6: How is the base installed in the system rack?

A6: It is designed for easy installation into Ovation system chassis using standard mounting brackets.

Q7: What are the dimensions of this product?

A7: The base measures 100 mm x 50 mm x 25 mm.

Q8: What is the weight of the unit?

A8: The unit weighs approximately 0.3 kg.

Q9: What is the recommended maintenance procedure for the 1B30035H01 base?

A9: Regular visual inspection for dust, corrosion, or mechanical damage is recommended. Ensure that the base connections remain clean and tight. Avoid using harsh chemicals or excessive force during cleaning.

Q10: Can I use this base in a redundant control configuration?

A10: Yes, it is suitable for use in systems where redundancy is required, depending on the I/O module configuration.
