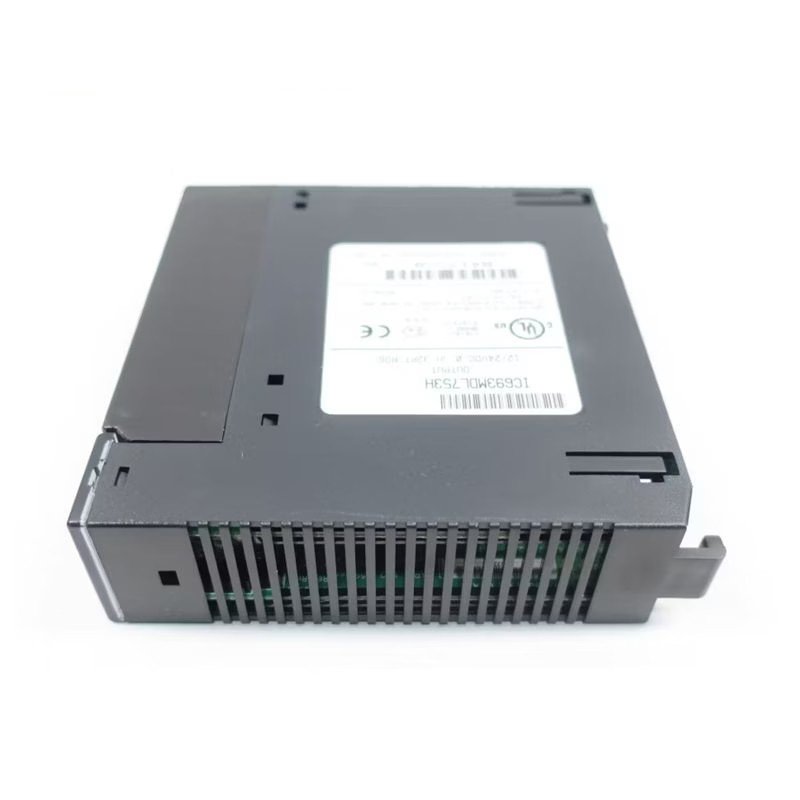

The GE Fanuc IC693MDL753H is a 32-point discrete output module designed for use in the Series 90-30 Programmable Logic Controller (PLC) system. This module provides flexible and reliable control of various industrial devices. It is widely used in automation applications to drive solenoid valves, relays, motor starters, indicators, and actuators. The IC693MDL753H is known for its robust design, fast response times, and efficient power management.

Technical Specifications

• Manufacturer: GE Fanuc
• Part Number: IC693MDL753H
• Product Type: 32-Point Discrete Output Module
• Output Voltage: 12/24 VDC
• Output Current: 0.5 A per point
• Number of Outputs: 32 outputs, divided into 4 isolated groups of 8
• Isolation:
  • 1500 VAC between field side and logic side
  • 500 VAC between output groups
• Maximum Load:
  • 2 A per output
  • 4 A per common
  • 16 A per module
• Minimum Load: 10 mA
• Maximum Inrush Current: 5 A
• On Response Time: 15 ms maximum
• Off Response Time: 15 ms maximum
• Internal Power Consumption:
  • 7 mA from 5V bus
  • 135 mA from 24V relay bus
• LED Indicators: 32 status LEDs (green for active, red for inactive)
• Weight: 0.41 kg (0.90 lbs)
