GE Fanuc A02B-0094-B502 Series 15-TTF Mounting Base Rack

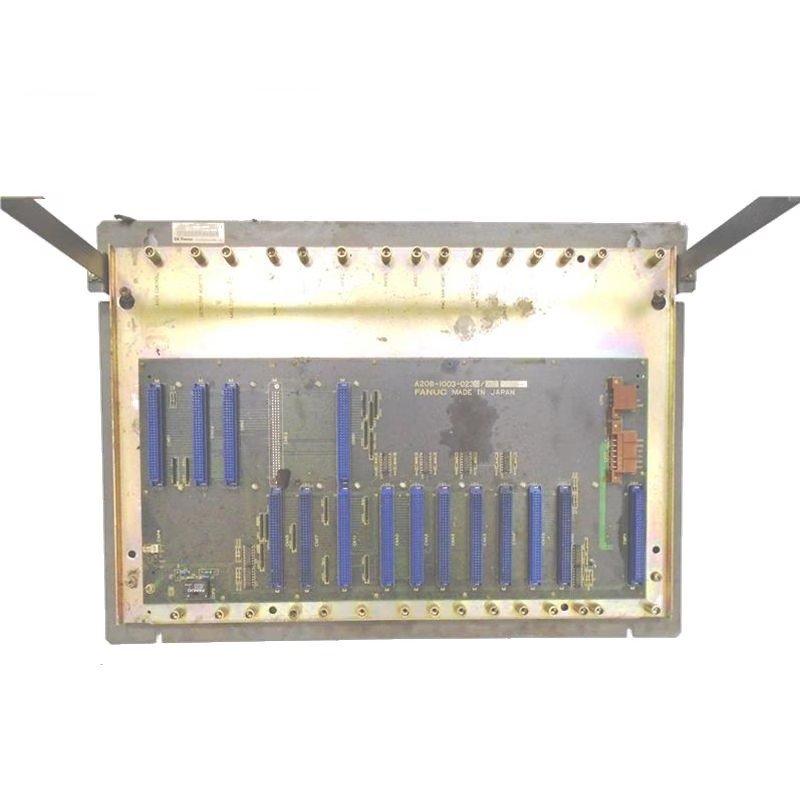

The GE Fanuc A02B-0094-B502 is a mounting base rack designed for use with the Fanuc Series 15-TTF control system. This rack serves as a foundation for housing various peripheral modules such as CPU, axes control, and graphics cards. It ensures the proper alignment and stability of critical components, making it a reliable part for older Fanuc automation systems still in use in industrial environments.

Technical Specifications

• Compatibility:
  • Designed for Fanuc Series 15-TTF systems.
  • Supports various peripheral PCBs, including the CPU and graphics modules.
• Power Supply:
  • Operates on a 24 V DC power input for consistent performance.
  • Includes 2 power connectors for easy integration with external power sources.
• Mounting Slots:
  • Provides 15 MA slot mounts to accommodate multiple modules.
• Communication:
  • Equipped with 1 fiber optic connector for high-speed data transfer between system components.
• Design:
  • Rack Mount: Compatible with standard industrial racks for easy installation and maintenance.
  • Dimensions: 10.0 in x 4.0 in x 1.0 in (25.4 cm x 10.2 cm x 2.5 cm).
  • Weight: 11 lbs 9.1 oz (5.2 kg).
• Legacy System:
  • Released in 1996, it is a legacy component, still relevant for users with older Fanuc Series 15-TTF systems.
