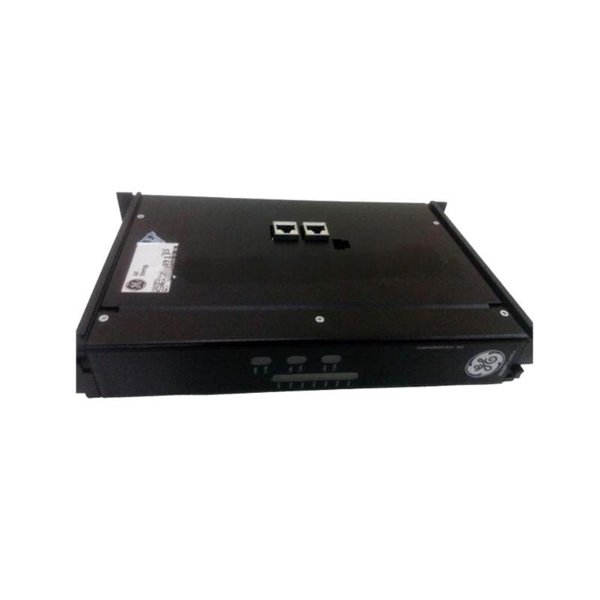

The GE IS220PCLAH1A Analog I/O Module is part of the Mark VIe control system, designed to handle analog input and output functions with high accuracy and reliability. It plays a critical role in acquiring analog signals from sensors, transmitters, and process equipment, then transmitting processed signals to controllers and actuators. The module ensures smooth integration within distributed control environments, supporting real-time monitoring and closed-loop control of industrial processes.

Product Advantages

• High Signal Accuracy – Provides precise analog input and output conversion with minimal signal distortion.

• Robust Industrial Design – Built to withstand harsh environments, including temperature fluctuations and vibration.

• Seamless Integration – Compatible with the Mark VIe control platform and other GE systems for easy deployment.

• Flexible I/O Capability – Supports multiple channels of analog input and output for versatile applications.

• Diagnostics & Monitoring – Embedded self-diagnostics for continuous health monitoring of both module and connected field devices.

• Scalable Architecture – Can be configured and scaled to meet small, medium, and large system requirements.

Technical Specifications

Product Applications

• Power Generation – Gas turbines, steam turbines, and generator monitoring.

• Oil & Gas – Drilling operations, pipeline monitoring, and compressor stations.

• Petrochemical & Refining – Process automation requiring analog measurement and control.

• Heavy Manufacturing – Steel, cement, and paper industries for precise process regulation.

• Utility and Grid Systems – Monitoring and control of substations and distributed assets.

FAQ

Q1: What type of signals can the IS220PCLAH1A handle?

A1: It can process both analog voltage and current signals, including 4–20 mA loops and ±10 V ranges.

Q2: How is this module connected within the Mark VIe system?

A2: The module uses an Ethernet-based I/O network to communicate directly with the controller and other modules.

Q3: Does the module provide built-in diagnostics?

A3: Yes, it includes continuous self-diagnostics for signal quality, channel integrity, and module health.

Q4: Can this module be hot-swapped during operation?

A4: Yes, it is designed for hot-swapping within a properly configured Mark VIe rack system.

Q5: What kind of resolution does the IS220PCLAH1A support?

A5: The resolution typically ranges from 12 to 16 bits, depending on the configuration and signal type.

Q6: Is the module suitable for hazardous environments?

A6: It is built with industrial-grade components and may be deployed in environments with harsh conditions, provided system-level certifications are met.

Q7: How does the module ensure data reliability?

A7: It employs redundant communication pathways and continuous error-checking to maintain reliable signal transmission.

Q8: Does the IS220PCLAH1A support time synchronization?

A8: Yes, it integrates into the system time synchronization protocols used within the Mark VIe platform.

Q9: What kind of filtering is available for analog inputs?

A9: The module offers configurable signal filtering to reduce noise and improve measurement accuracy.

Q10: How is firmware updated on the module?

A10: Firmware can be updated through the system configuration tools of the Mark VIe control environment via the Ethernet network.
