The DS3800XTFP1E1C and other boards in the General Electric Speedtronic Mark IV series are used to control and operate gas and steam turbines. A gas or steam turbine uses a large internal combustion engine to mix fuel and air to cause a contained explosion. This explosion creates a series of gases that are under great pressure and are forced out of the engine, causing the turbine to spin at high speeds, producing a large amount of energy. The energy produced by the operation of the turbine is then harnessed and used for many other purposes.

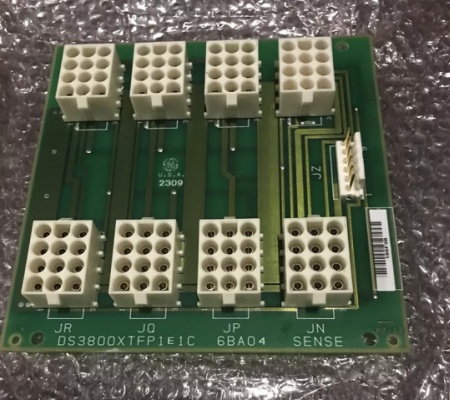

The DS3800XTFP1E1C is a fan out card from General Electric for their Mark IV Speedtronic Line. A fan-out card has eight red plastic rectangles. Each rectangle has twelve circular ports. The rectangles are known as logic gates. The logic gates allow for a certain number of gate inputs to be connected directly without any additional wiring or interfacing circuitry. Each logic gate has its own letter labels reading JS, JT, JY, JX (Sense), JR, JQ, JP, JN (Sense).

DS3800XTFP1E1C Voltage Monitoring

It is designed to monitor various types of voltages in the turbine system, such as AC or DC voltages, as per the system requirements. The board helps ensure that the electrical signals input to the control system are within safe and expected ranges.

The board provides protection for control systems by detecting overvoltage or undervoltage conditions that could damage sensitive equipment or cause unsafe operating conditions. It triggers an alarm or shutdown when the voltage exceeds a predefined threshold.

Troubleshooting and Maintenance

Here are some general troubleshooting steps you can follow for the DS3800XTFP1E1C voltage monitoring board:

Check the power supplyFirst make sure the board is receiving the correct voltage. Look for signs of overheating, burn marks, or physical damage on the board. Make sure all wiring and connections are secure. Test the inputs and outputs and use a multimeter or other diagnostic tool to verify that the board is properly monitoring voltage levels. Replace faulty components such as capacitors or resistorsIf they are damaged, they need to be replaced.
