Manufacturer:Bently Nevada
Product Number:3500/61 133827-02
Product Type:RTD/TC Non-Isolated I/O Module
Origin:USA
Dimensions:241.3 x 24.4 x 99.1 mm
Weight:0.45 kg
Views:82
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

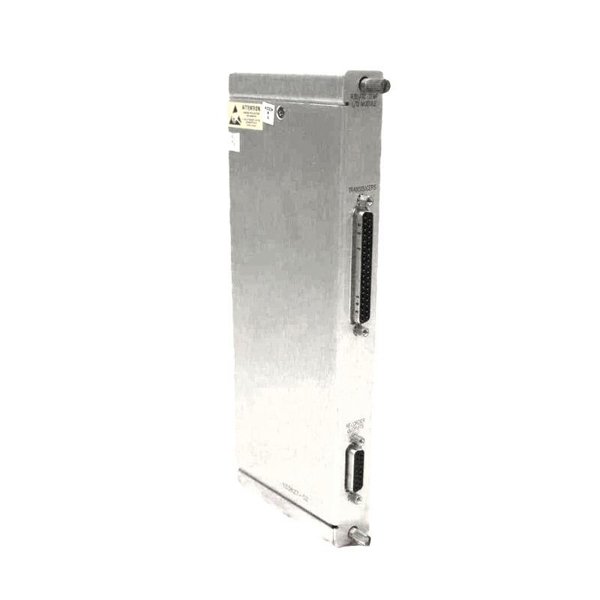

The Bently Nevada 3500/61 133827-02 RTD/TC Non-Isolated I/O Module with External Terminations is a high-precision temperature monitoring module. It supports both Resistance Temperature Detectors (RTD) and Thermocouples (TC), providing reliable data for machinery condition monitoring systems. This module is designed for industrial environments requiring accurate temperature measurement and system integration.
| Parameter | Specification |
|---|---|
| Model Number | 133827-02 |
| Module Type | RTD/TC Non-Isolated I/O |
| Termination Type | External Terminations |
| Input Channels | 6 |
| Input Types | RTD and Thermocouple (TC) |
| Power Supply | 24 VDC |
| Dimensions (L x W x H) | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.45 kg |
| Operating Temperature | -20°C to +65°C |
| Compliance | ATEX/IECEx Zone 2, Class I Div 2 |
| Recorder Outputs | 4-20 mA per channel |
Industrial Process Control: Monitoring critical temperature points to maintain operational efficiency.
Machinery Protection: Detecting abnormal temperature variations to prevent equipment damage.
Energy Management: Monitoring temperature-related parameters to optimize energy usage.
Safety Systems: Triggering alarms or shutdowns when temperature anomalies are detected.
Dual Input Compatibility: Supports both RTD and TC inputs.
External Terminations: Simplifies wiring and maintenance.
Recorder Outputs: Provides 4-20 mA outputs for integration with control systems.
Standards Compliance: Meets ATEX/IECEx Zone 2 and Class I, Div 2 for hazardous environments.
Compact Design: Space-saving dimensions suitable for tight installations.
What is the difference between 3500/60 and 3500/61?
3500/61 provides recorder outputs for each channel; 3500/60 does not.
Can this module be used in hazardous areas?
Yes, it complies with ATEX/IECEx Zone 2 and Class I, Div 2.
Which types of temperature inputs are supported?
Both RTD and Thermocouple (TC) inputs.
How many channels are available?
Six channels for temperature monitoring.
What is the power requirement?
24 VDC.
What are the dimensions of the module?
241.3 x 24.4 x 99.1 mm.
What is the module weight?
0.45 kg.
What is the operating temperature range?
-20°C to +65°C.
Does the module have recorder outputs?
Yes, 4-20 mA outputs per channel.
Is this module suitable for industrial environments?
Yes, it is designed for reliable industrial temperature monitoring.
