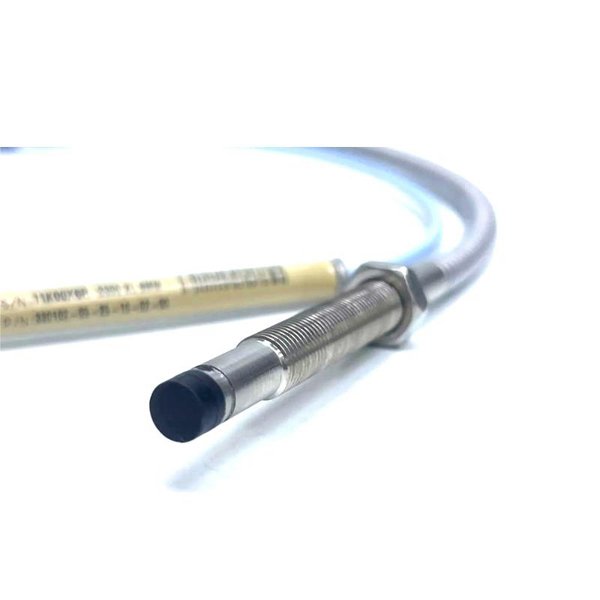

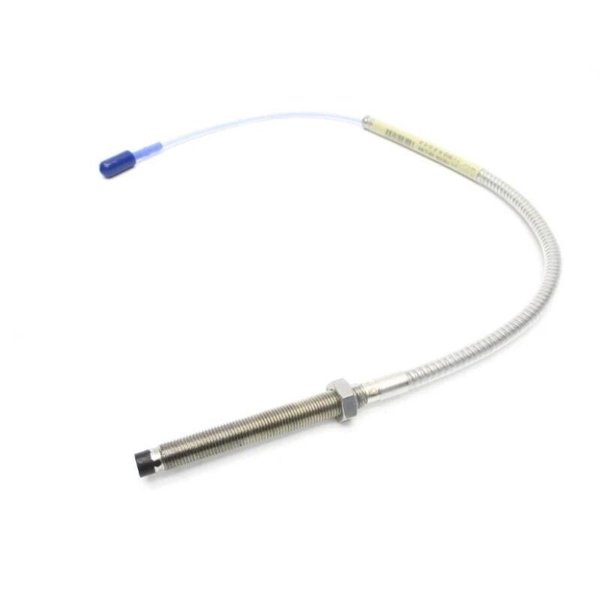

The Bently Nevada 330102-00-24-10-02-00 is part of the 3300 XL 8 mm Proximity Transducer System, designed for precise measurement of static position and dynamic vibration in rotating machinery. It features a robust armored cable, advanced TipLoc and CableLoc construction, and ClickLoc gold-plated connectors for reliable operation in industrial environments. It fully meets API 670 mechanical and performance standards.

Product Applications

• Shaft vibration and position monitoring in fluid-film bearing machines

• Keyphasor reference and speed measurements

• Vibration protection and condition monitoring in turbines, compressors, and pumps

• Suitable for high-temperature and high-density installations

Product Advantages

• Complies with API 670 standards for performance and interchangeability

• Armored cable and FluidLoc option for enhanced durability and fluid resistance

• High immunity to RFI/EMI with CE compliance

• Backward compatibility with non-XL 3300 series components

• ClickLoc connectors for secure, tool-free installation

Technical Specifications

FAQ

Q1: What is the primary use of the 330102-00-24-10-02-00 probe?

A1: It is primarily used for vibration and position monitoring of rotating machinery shafts.

Q2: Does this probe comply with industry standards?

A2: Yes, it meets API 670 mechanical and performance specifications.

Q3: Can it be used in high-temperature environments?

A3: Yes, the standard version operates up to 177°C. Extended temperature versions are also available.

Q4: Is the probe interchangeable with older 3300 series components?

A4: Yes, it is backward compatible and interchangeable with non-XL 3300 8 mm components.

Q5: What type of connector does it use?

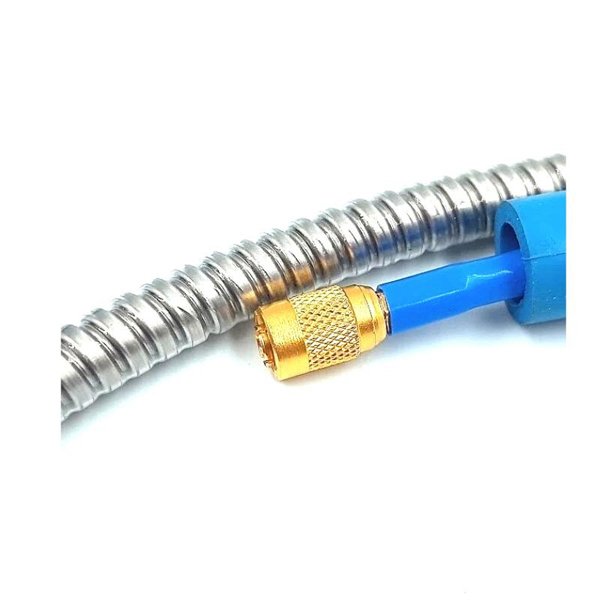

A5: It uses a gold-plated ClickLoc connector, designed for secure, tool-free installation.

Q6: Is the cable fluid-resistant?

A6: Yes, the FluidLoc option prevents oil and other fluids from leaking through the cable.

Q7: What is the recommended gap voltage setting?

A7: The recommended gap voltage is approximately -9 VDC, corresponding to about 1.27 mm (50 mils).

Q8: Can it be used with a 9-meter system?

A8: No, the 1-meter probe is designed for 5-meter systems, not 9-meter systems.

Q9: Does it come with a connector protector?

A9: Yes, this model includes a connector protector for enhanced environmental protection.

Q10: Is any special calibration required for different target materials?

A10: By default, it is calibrated for AISI 4140 steel; other materials require factory calibration.
