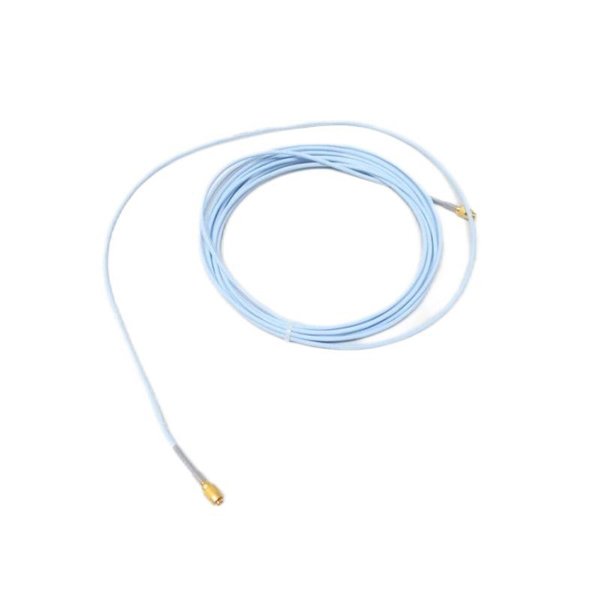

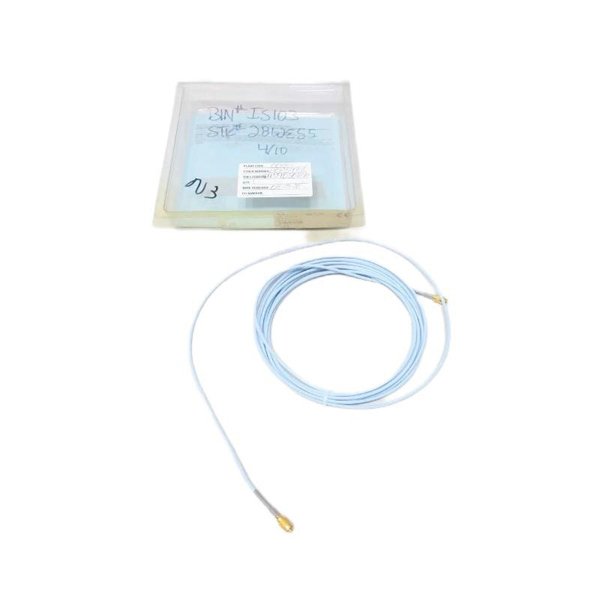

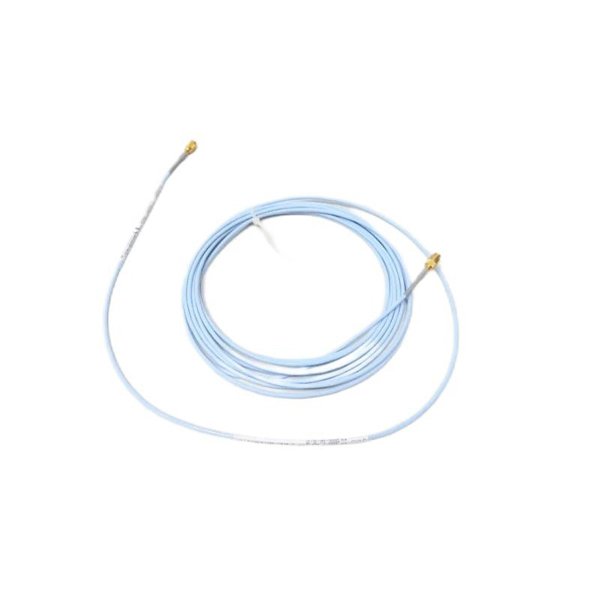

Bently Nevada 330930-040-00-05 3300 NSv Extension Cable
Manufacturer:Bently Nevada
Product Number:330930-040-00-05
Product Type:3300 NSv Extension Cable
Origin:USA
Cable Length:4.0 meters
Weight:0.18 kg
Views:60
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330930-040-00-05 is a 4.0-meter extension cable for the 3300 XL NSv Proximity Transducer System. It serves as a vital link between the NSv probe and the Proximitor Sensor, maintaining high signal integrity in tight installation environments such as centrifugal compressors and other machinery with limited space.
Applications
-
Radial vibration and position monitoring
-
Axial (thrust) position detection
-
Zero speed and tachometer signal transmission
-
Keyphasor® phase reference measurements
-
Compact machinery with small shaft diameters
Key Advantages
-
Designed for tight installation with small probes
-
Excellent electromagnetic interference (EMI/RFI) immunity
-
Compatible with legacy 3300 RAM systems
-
Improved connector retention with ClickLoc® connectors
-
Chemical-resistant probe materials suitable for harsh environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 330930-040-00-05 |
| Cable Length | 4.0 meters |
| Cable Type | 75 Ω coaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc |
| Armor | Optional, stainless steel with/without FEP jacket |
| Capacitance | 69.9 pF/m |
| DC Resistance (center) | 0.220 Ω/m |
| DC Resistance (shield) | 0.066 Ω/m |
| Minimum Bend Radius | 25.4 mm |
| Weight | 0.18 kg |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 330930-040-00-05 cable?
A1: It connects the NSv probe to the Proximitor Sensor, ensuring signal integrity over a 4.0-meter distance.
Q2: Is this cable compatible with older 3300 RAM systems?
A2: Yes, it is mechanically and electrically compatible.
Q3: What environments is the cable suited for?
A3: It operates reliably in high-temperature and chemically aggressive environments.
Q4: Does it come with armor protection?
A4: Armor is optional; the specific model 330930-040-00-05 is typically unarmored unless specified otherwise.
Q5: Can this cable be used in hazardous zones?
A5: Yes, it supports approvals for use in Class I, Zone 0 and Zone 2 with appropriate system components.
Q6: What connector technology is used?
A6: ClickLoc® connectors ensure secure, vibration-resistant connections.
Q7: How is moisture ingress prevented?
A7: Connector protectors and silicone tape are available to protect against liquid ingress.
Q8: What is the cable’s weight?
A8: Approximately 0.18 kg for the 4.0-meter version.
Q9: Does it support high-frequency signal transmission?
A9: Yes, with a frequency response up to 10 kHz when used within recommended limits.
Q10: Can I replace only the cable without recalibration?
A10: Yes, if replaced with another cable of the same length and specifications.
