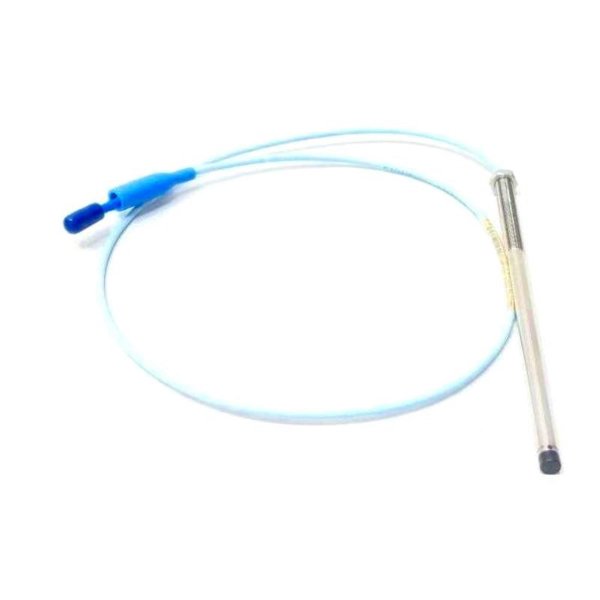

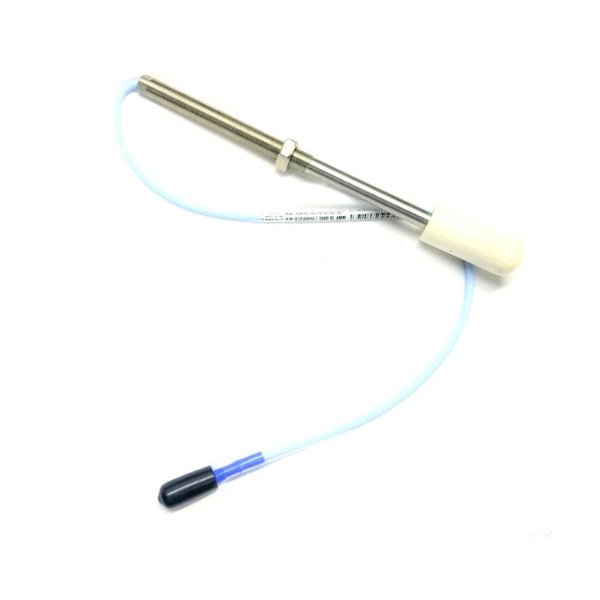

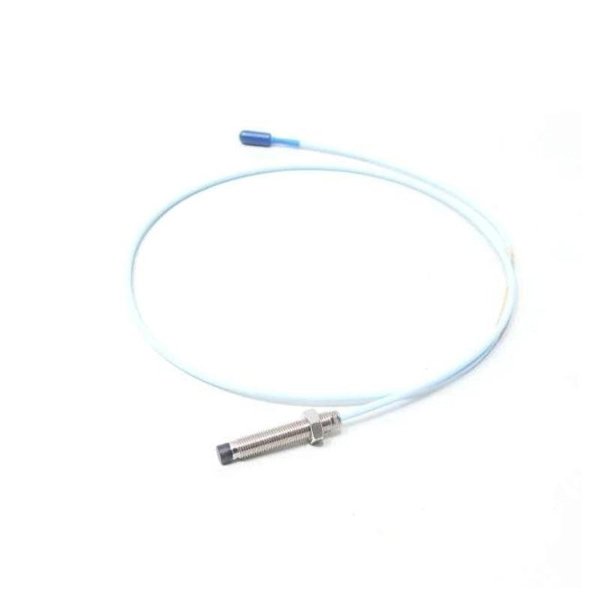

The Bently Nevada 330101-00-45-05-01-00 is part of the 3300 XL 8 mm Proximity Transducer System, which includes a proximity probe, extension cable, and Proximitor Sensor. Designed for vibration and position monitoring in critical rotating machinery, it supports high accuracy and complies with API 670 standards.

Applications

• Radial vibration and axial position measurement on fluid-film bearing machines

• Shaft displacement, Keyphasor signals, and overspeed monitoring

• Equipment: turbines, compressors, motors, pumps

Advantages

• Fully API 670 compliant

• Interchangeable components (probe, cable, sensor)

• Enhanced EMI/RFI immunity

• ClickLoc connectors with locking feedback

• Extended temperature range options

• Easy DIN or panel mounting

Technical Specifications

FAQ

Q1: What is the primary function of the 330101-00-45-05-01-00 probe?

A1: It measures shaft position and vibration in fluid-film bearing machines.

Q2: Does the probe meet API 670 compliance?

A2: Yes, it is fully compliant with API 670 mechanical and performance standards.

Q3: Can components be interchanged with non-XL series?

A3: Yes, the 3300 XL 8 mm system is compatible with non-XL 3300 5 mm and 8 mm components.

Q4: What is the linear range of the probe?

A4: The probe provides a linear range of 2.0 mm (80 mils).

Q5: Is it suitable for high-temperature applications?

A5: Yes, the standard probe supports up to +177°C, and ETR variants up to +218°C.

Q6: How secure are the connectors?

A6: The ClickLoc connectors lock with a tactile “click” and do not require tools.

Q7: Can this be used for Keyphasor applications?

A7: Yes, it supports Keyphasor and speed reference signal measurements.

Q8: What kind of cable is used in the probe?

A8: A 75Ω triaxial FEP-insulated cable is standard.

Q9: Is field wiring complicated?

A9: No, SpringLoc terminal strips allow tool-free, secure wiring.

Q10: How is RFI/EMI immunity handled?

A10: It’s highly immune to interference and CE-compliant without special shielding.
