Epro CON021+PR9268/200-000 Vibration Monitoring System
Manufacturer:EPRO
Product No.:CON021+PR9268/200-000
Condition:Brand New & in Stock
Product Type:Vibration Monitoring System
Product Origin:Germany
Payment:T/T, Western Union
Approvals:CE, UL, CSA
Warranty:12 months
Feature:Specification
Product Description

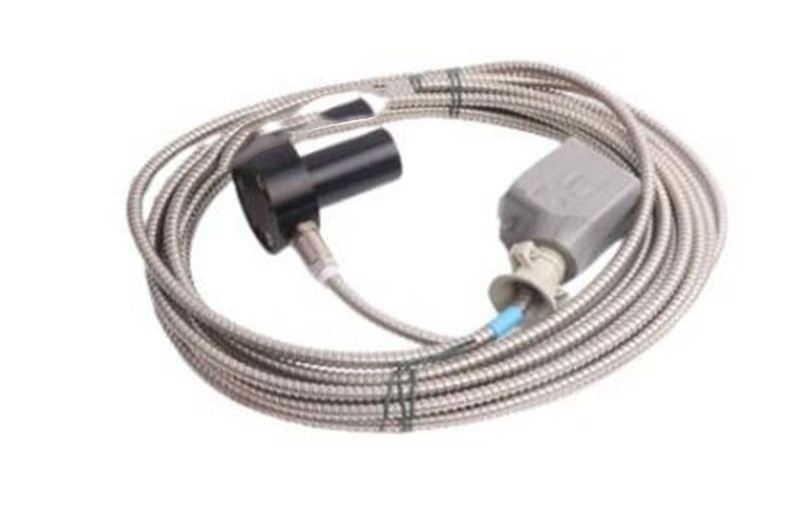

The EPRO CON021 + PR9268/200-000 is a high-performance vibration monitoring system. It is designed for critical rotating machinery such as turbines, compressors, and pumps. The system combines the CON021 signal converter with the PR9268/200-000 electrodynamic velocity sensor. Together, they provide precise, non-contact vibration and displacement measurements. Engineers use this system in condition monitoring and machinery protection. It delivers consistent performance even in harsh industrial environments.
Technical Specifications
- Sensor Type: Electrodynamic velocity sensor (PR9268/200-000)
- Measurement Principle: Converts mechanical vibration into electrical signals
- Frequency Range: 10 to 1000 Hz
- Sensitivity: 30 mV/mm/s (at 50 Hz, 20°C, 100 kΩ load)
- Amplitude Range (Peak-to-Peak): 2000 μm ± 1500 μm
- Natural Frequency at 20°C:
- Horizontal: 12.0 Hz ± 2 Hz
- Vertical: 12.3 Hz ± 2 Hz
- Linearity Error: Less than 2%
- Total Error: ± 3%
- Protection Class: IP65 (dust-tight and water-jet resistant)
- Explosion Protection: EEx ib IIC T6/T4 certified for hazardous areas
- Standards Compliance: API 670, DIN 45670, ISO 10817-1
Loading comments...
Epro CON021+PR9268/200-000 Vibration Monitoring System
Manufacturer:EPRO
Product No.:CON021+PR9268/200-000
Condition:Brand New & in Stock
Product Type:Vibration Monitoring System
Product Origin:Germany
Payment:T/T, Western Union
Approvals:CE, UL, CSA
Warranty:12 months
Feature:Specification
Product Description
The EPRO CON021 + PR9268/200-000 is a high-performance vibration monitoring system. It is designed for critical rotating machinery such as turbines, compressors, and pumps. The system combines the CON021 signal converter with the PR9268/200-000 electrodynamic velocity sensor. Together, they provide precise, non-contact vibration and displacement measurements. Engineers use this system in condition monitoring and machinery protection. It delivers consistent performance even in harsh industrial environments.
Technical Specifications
- Sensor Type: Electrodynamic velocity sensor (PR9268/200-000)
- Measurement Principle: Converts mechanical vibration into electrical signals
- Frequency Range: 10 to 1000 Hz
- Sensitivity: 30 mV/mm/s (at 50 Hz, 20°C, 100 kΩ load)
- Amplitude Range (Peak-to-Peak): 2000 μm ± 1500 μm
- Natural Frequency at 20°C:
- Horizontal: 12.0 Hz ± 2 Hz
- Vertical: 12.3 Hz ± 2 Hz
- Linearity Error: Less than 2%
- Total Error: ± 3%
- Protection Class: IP65 (dust-tight and water-jet resistant)
- Explosion Protection: EEx ib IIC T6/T4 certified for hazardous areas
- Standards Compliance: API 670, DIN 45670, ISO 10817-1
