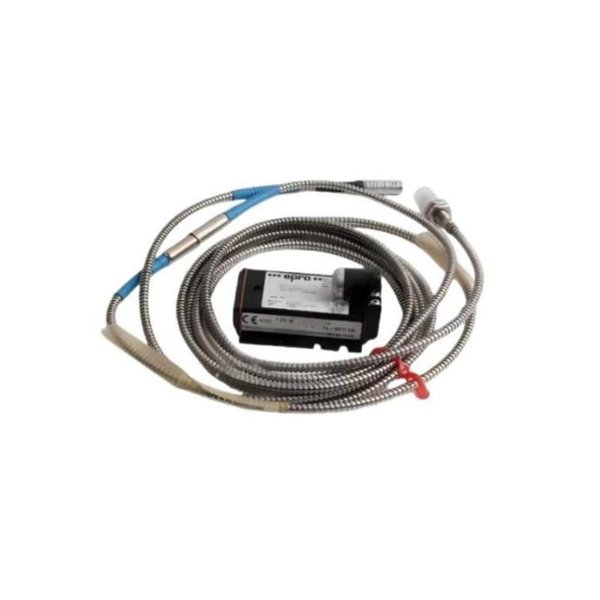

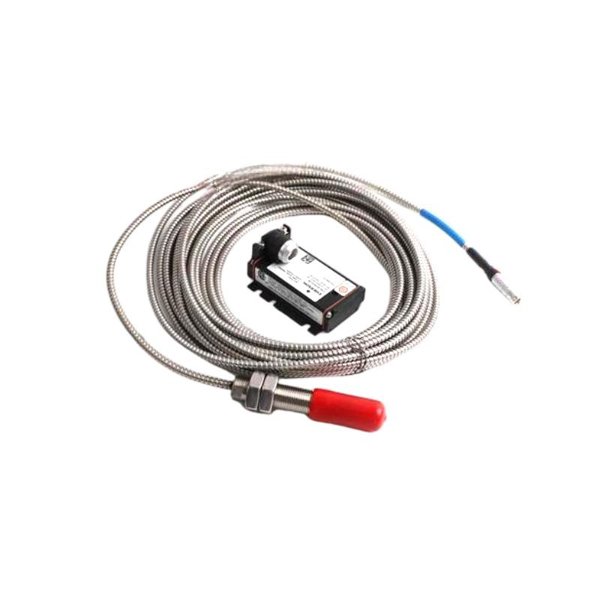

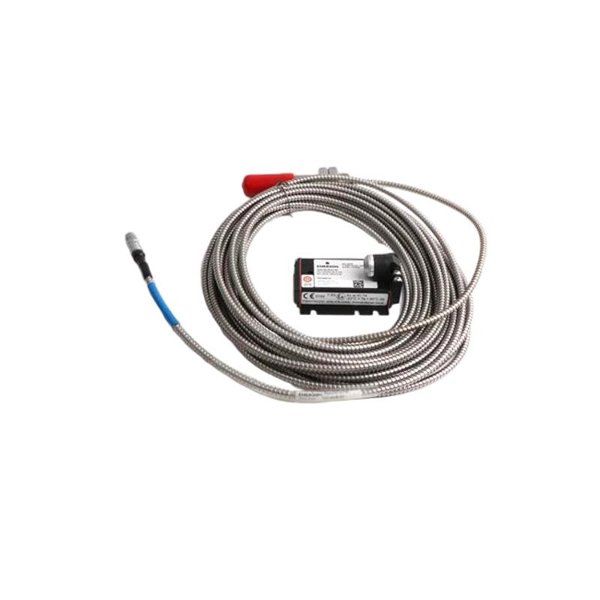

The Epro PR6424/101-100 is a high-precision 16mm Eddy Current Sensor designed for non-contact displacement and position measurement. It uses eddy current technology to accurately monitor the position and vibration of metallic targets, making it highly suitable for industrial applications where precision, reliability, and robustness are critical.

This sensor operates with analog output, which can be either voltage or current, allowing easy integration into control and monitoring systems. The PR6424/101-100 is optimized for applications in rotating machinery, automated systems, and machine condition monitoring, ensuring a high degree of accuracy while avoiding wear and tear associated with traditional contact sensors.

With a diameter of 16mm, this sensor is compact yet powerful, offering fast response times and exceptional signal stability. It operates in a wide temperature range and is designed to work reliably in harsh industrial environments, such as metalworking, automotive, and energy production.

Product Specifications

Product Applications

The Epro PR6424/101-100 is ideal for a variety of non-contact displacement and position measurement applications, including:

1. Rotating Equipment Monitoring

   Used to monitor the displacement and vibration of rotating machinery such as turbines, motors, pumps, and fans in industries like power generation and manufacturing.

2. Automated Systems and Robotics

   Perfect for precise position control in robotic systems, automated assembly lines, and conveyor belts to ensure optimal positioning and alignment of parts during manufacturing.

3. Condition Monitoring in Industrial Machines

   Integrated into machine condition monitoring systems to detect early signs of wear or misalignment in critical machinery such as machine tools, compressors, and automated production systems.

4. Precision Machining

   Essential for micromachining and precision cutting applications in industries such as electronics and automotive, providing high accuracy in metalworking and component measurement.

5. Aerospace and Automotive Applications

   Used in aerospace for monitoring the displacement of critical systems like landing gear, actuators, and hydraulic systems. Similarly, in automotive manufacturing for precise measurements during assembly and testing.

6. Vibration and Displacement Monitoring in Power Plants

   In power plants and oil & gas industries, the sensor monitors vibration levels and displacement to ensure machinery such as generators, compressors, and pumps operates within optimal parameters.

Product Advantages

• Non-Contact Measurement

  The Epro PR6424/101-100 uses eddy current technology for non-contact measurement, significantly reducing mechanical wear and tear compared to contact-based sensors, leading to longer operational life and less downtime.

• High Precision and Fast Response

  The sensor offers ±0.1% accuracy and a sub-millisecond response time, making it ideal for high-speed, real-time monitoring and precision control in industrial machinery.

• Wide Temperature Range

  With a temperature range of -20°C to +70°C, the PR6424/101-100 operates efficiently in both low and high-temperature environments, ensuring reliable performance in extreme industrial conditions.

• Rugged and Reliable

  IP67-rated for dust-tight and water-resistant protection, the sensor is designed to withstand harsh environments, making it suitable for use in wet, dirty, or extreme vibration conditions.

• Easy Integration

  The threaded and flange mounting options allow the sensor to be easily integrated into existing systems and machinery, requiring minimal modifications for installation.

• Versatile and Flexible

  Suitable for a broad range of applications from automated systems to rotating equipment monitoring, this sensor’s versatility makes it a valuable asset for industries including automotive, aerospace, power generation, and manufacturing.

FAQ

1. What technology does the Epro PR6424/101-100 sensor use?

   The Epro PR6424/101-100 uses eddy current technology for non-contact displacement and position measurement.

2. What is the diameter of the sensing head?

   The sensing head of the PR6424/101-100 is 16 mm in diameter.

3. What type of output signal does this sensor provide?

   The sensor provides an analog output, which can be either voltage or current.

4. What is the accuracy of the sensor?

   The PR6424/101-100 offers ±0.1% accuracy of full scale.

5. What is the response time of the sensor?

   The sensor has a response time of less than 1 ms, providing real-time feedback for high-speed applications.

6. What is the operating temperature range of the sensor?

   The operating temperature range is from -20°C to +70°C.

7. What environmental protection does the sensor have?

   The sensor is IP67-rated, meaning it is dust-tight and water-resistant, making it ideal for use in harsh environments.

8. How is the Epro PR6424/101-100 sensor mounted?

   The sensor can be mounted using threaded or flange mounting options.

9. What industries is the Epro PR6424/101-100 sensor suitable for?

   It is suitable for industries like automotive, aerospace, energy, manufacturing, and robotics.

10. Can this sensor handle high-speed machinery applications?

    Yes, the PR6424/101-100 is designed for high-speed applications and provides fast, accurate real-time feedback.
