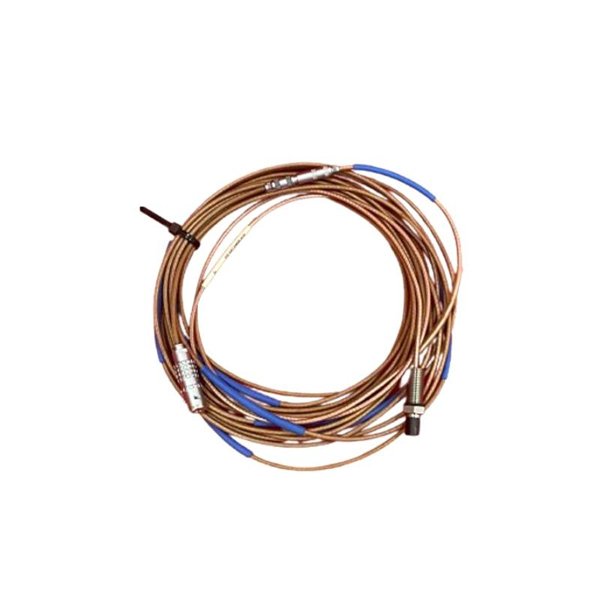

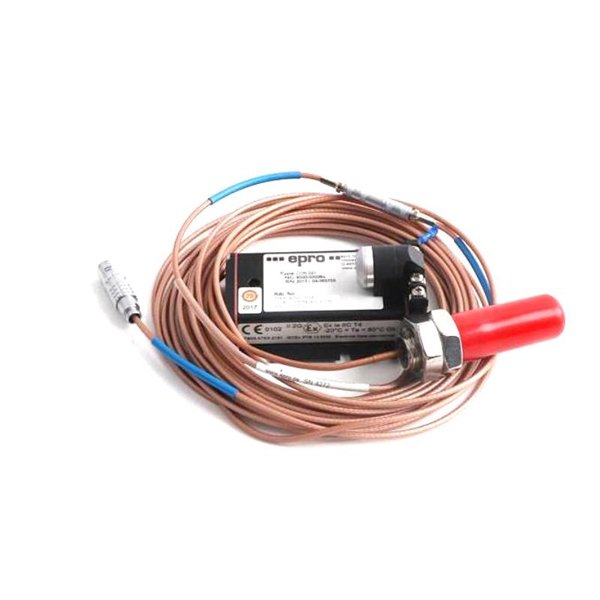

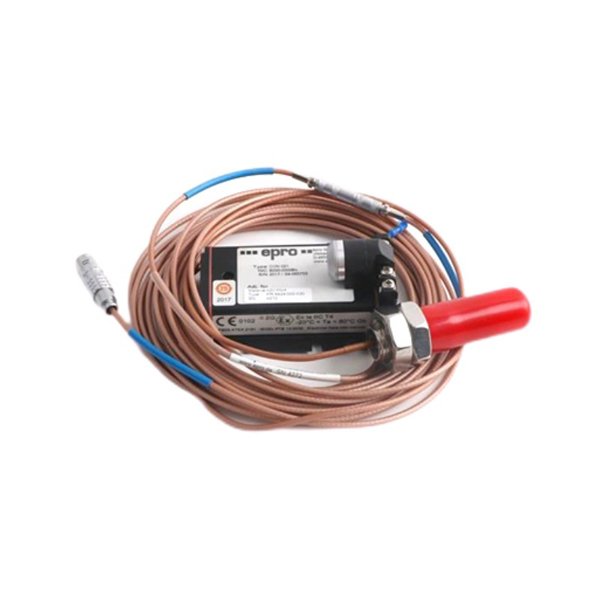

The Epro PR6424/118-121 16 mm Eddy Current Sensor is a high-precision, non-contact displacement and position measurement sensor that uses advanced eddy current technology. Designed for industrial applications that demand extreme accuracy, this sensor is ideal for measuring small displacements, vibrations, and shifts in rotating or moving parts. The sensor’s compact 16 mm diameter head ensures it can fit into tight spaces, making it versatile for a wide range of applications where size and accuracy are critical.

Operating without direct contact, the PR6424/118-121 eliminates issues like wear, friction, and mechanical strain that are typically associated with traditional contact-based measurement systems. Its rugged design allows it to perform reliably even in harsh environments with high levels of vibration, temperature extremes, and electromagnetic interference, making it suitable for industries such as automotive manufacturing, aerospace, process control, and energy.

The PR6424/118-121 sensor delivers high-resolution measurements with low drift and fast response times, ensuring that it can capture even the slightest changes in position and vibration. Its flexible output options make it easily integrable with various monitoring and control systems.

Technical Specifications

Here are the key technical specifications for the Epro PR6424/118-121 16 mm Eddy Current Sensor:

Product Applications

The Epro PR6424/118-121 16 mm Eddy Current Sensor is highly suitable for a range of industrial applications, particularly in environments where high precision is required and contact-based measurement methods are impractical. Some common applications include:

• Machine Condition Monitoring: Used to monitor the displacement, vibration, and position of rotating machinery such as motors, pumps, and turbines.

• Process Control: Ideal for measuring critical parameters in automated production systems and ensuring smooth operations.

• Vibration Analysis: Frequently employed for detecting vibrations in equipment and machinery, preventing wear and failure.

• Position and Displacement Measurement: Perfect for applications such as robotic arms, conveyor belts, and automated systems where parts need to be positioned precisely.

• Turbine and Engine Monitoring: Provides accurate measurements of the displacement and alignment of components in turbines and engines to prevent mechanical failures.

• Automotive Manufacturing: Helps monitor parameters like wheel alignment, positioning of moving parts, and vibration analysis in production lines.

• Aerospace: Used in critical measurement tasks for aerospace applications, including detecting misalignments or shifts in aircraft components under load.

Product Advantages

• Non-Contact Measurement: The sensor uses eddy current technology, ensuring there is no physical contact with the object being measured. This eliminates the risk of wear and tear, reducing maintenance costs and extending the life of the sensor.

• Compact and Lightweight: With a sensor head diameter of just 16 mm and a weight of 0.2 kg, this sensor is perfect for applications where space is limited or size is a critical factor.

• High Precision: The PR6424/118-121 provides an exceptional level of accuracy (±0.001 mm), making it suitable for highly demanding measurement tasks.

• Fast Response Time: With a response time of less than 1 ms, the sensor is able to monitor rapid changes in position and displacement, ensuring that real-time data is captured effectively.

• Wide Operating Range: The sensor can operate in temperatures ranging from -20°C to 85°C, making it suitable for use in diverse environmental conditions.

• Versatile Output Options: It supports both analog (4-20 mA) and digital (0-10 V) outputs, offering flexibility for integration into a variety of systems.

• Durable and Reliable: With an IP67 protection rating, the sensor is dust-tight and capable of withstanding immersion in water, ensuring reliable operation in harsh environments.

FAQ

1. What is the measurement principle used by the Epro PR6424/118-121 sensor?

The Epro PR6424/118-121 uses the eddy current principle to provide non-contact displacement and position measurements.

2. What output options are available for the PR6424/118-121 sensor?

The sensor provides analog output options, including 4-20 mA and 0-10 V, depending on the configuration.

3. What is the accuracy of the Epro PR6424/118-121 sensor?

The accuracy of the sensor is ±0.001 mm, ensuring high precision for critical measurements.

4. What is the operating distance range of the sensor?

The operating distance range for this sensor is from 1 mm to 8 mm, depending on the configuration.

5. What voltage is required for the Epro PR6424/118-121 sensor?

The sensor requires a supply voltage of 10 to 30 VDC.

6. What is the response time of the Epro PR6424/118-121 sensor?

The sensor has a fast response time of less than 1 ms, making it suitable for real-time monitoring.

7. Is the sensor suitable for outdoor applications?

Yes, the sensor has an IP67 rating, meaning it is dust-tight and protected against immersion in water, making it ideal for outdoor use.

8. What is the storage temperature range for the sensor?

The sensor can be stored at temperatures ranging from -40°C to 100°C.

9. Is the sensor suitable for monitoring vibration?

Yes, the PR6424/118-121 sensor is ideal for vibration analysis and condition monitoring in rotating machinery.

10. Can the sensor output be customized?

Yes, the sensor offers customizable output options to suit different system requirements, including both analog and digital configurations.
