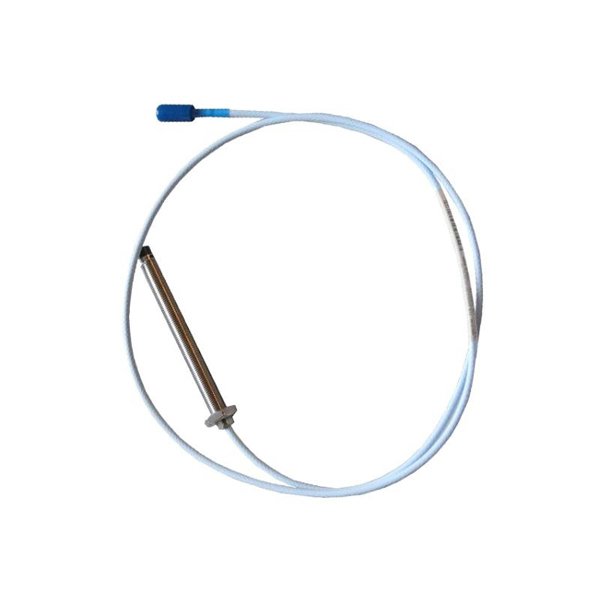

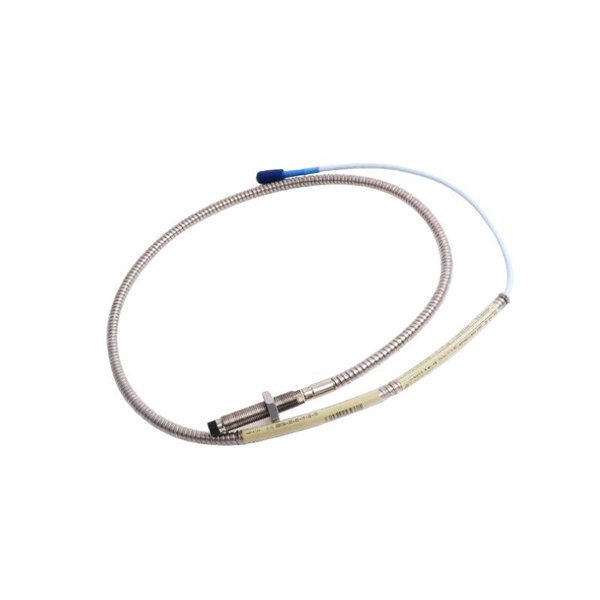

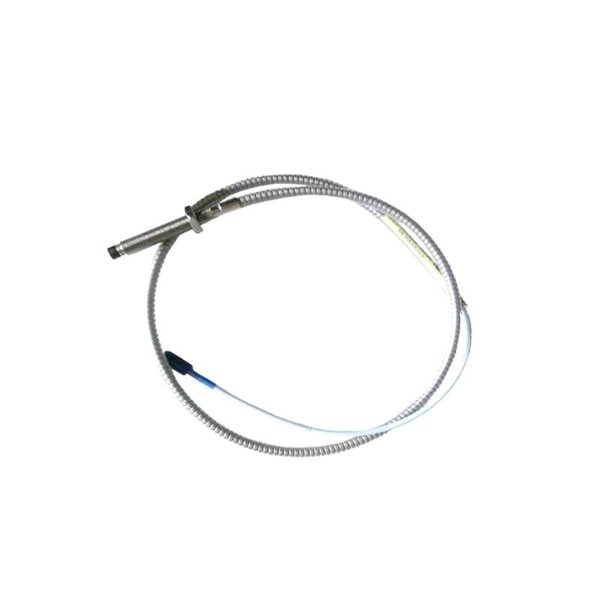

The Bently Nevada 330103-00-05-10-01-05 is a highly reliable 3300 XL 8mm Proximity Probe, purpose-built for machinery condition monitoring in critical industrial applications. Part of the proven 3300 XL series, this probe ensures long-term stability and precision in detecting shaft displacement and vibration in rotating machinery.

This particular model features a Bently Nevada-standard 8mm sensing tip and is paired with a durable 1.0 meter coaxial extension cable, enabling seamless installation in demanding operational environments. It is optimized for use with Bently Nevada’s Proximitor® sensor and monitoring systems, making it a vital component in predictive maintenance strategies in sectors such as oil & gas, power generation, chemical processing, and heavy industries.

Robust mechanical construction, superior signal fidelity, and ease of integration highlight this probe’s significance in modern asset health monitoring programs.

Product Specifications

Applications

The 330103-00-05-10-01-05 proximity probe is engineered for high-performance in a range of critical rotating machinery applications:

• Gas and Steam Turbines: Shaft vibration and thrust position monitoring

• Compressors: Monitoring radial vibration and axial displacement

• Pumps and Motors: Continuous monitoring of shaft dynamics

• Generators: Rotor shaft behavior and condition analysis

• Industrial Fans and Blowers: Detecting imbalance or misalignment

• Nuclear and Thermal Power Plants: Ensuring safe turbine operation

This probe is widely implemented across oil & gas, petrochemical, power generation, and mining sectors, often in combination with vibration protection systems and advanced condition monitoring platforms.

Product Advantages

• Field-Proven Durability: The 3300 XL probe series is engineered to survive harsh industrial conditions including high vibration, dust, oil, and moisture exposure.

• Stable Long-Term Performance: Exceptional thermal stability and mechanical integrity ensure consistent readings over extended operating cycles.

• Precision Engineered Tip: The 8mm sensing tip delivers accurate non-contact measurements for vibration and position diagnostics.

• Flexible Cable Integration: Supplied with a rugged 1.0 meter cable that supports flexible routing during installation.

• IP65 Environmental Protection: Excellent resistance to dust ingress and water spray, ensuring performance in outdoor or process area environments.

• Universal Thread Design: Mounts easily with industry-standard threads, reducing installation time and increasing compatibility with housings and brackets.

• Compatibility with 3300 XL Proximitor® Modules: Seamless signal conditioning and monitoring, optimized for Bently Nevada systems.

• Reliable in Extreme Temperatures: Withstands significant temperature variation from -35°C to +120°C.

• Quick Swap Design: Modular design allows for quick maintenance or replacement without disrupting adjacent machinery.

• Trusted by Industry Leaders: Thousands of installations across the globe make this a proven solution for critical asset monitoring.

Frequently Asked Questions (FAQ)

1. What is the primary use of the 330103-00-05-10-01-05 probe?

   It is used to measure shaft vibration and displacement in rotating machines.

2. How does this model differ from others in the 3300 XL series?

   This version has an 8mm tip and a 1.0 meter cable with a specific connector type (01-05), optimized for certain configurations.

3. What are the temperature limits for safe operation?

   The probe operates reliably between -35°C and +120°C.

4. Is this probe compatible with non-Bently monitoring systems?

   While designed for Bently Nevada systems, it can interface with others if voltage-output signal conditioning is compatible.

5. What connector does this model use?

   It features a MIL-C-5015 style booted connector with a 95° angle, common in tight enclosures.

6. What type of material is used for the sensing tip?

   The tip is stainless steel with a PEEK (polyether ether ketone) sleeve for electrical insulation.

7. Can the cable be extended or shortened?

   Yes, Bently offers custom lengths and extension solutions. Field modifications should be avoided to prevent signal degradation.

8. What environmental protection does this probe have?

   It is rated IP65, meaning it is dust-tight and protected against water jets.

9. How is the probe calibrated?

   It is factory-calibrated and traceable to international measurement standards, ensuring precision across installations.

10. What monitoring modules can this probe connect to?

    It connects directly with the 3300 XL Proximitor® Sensor and the 3300 monitoring platform.
