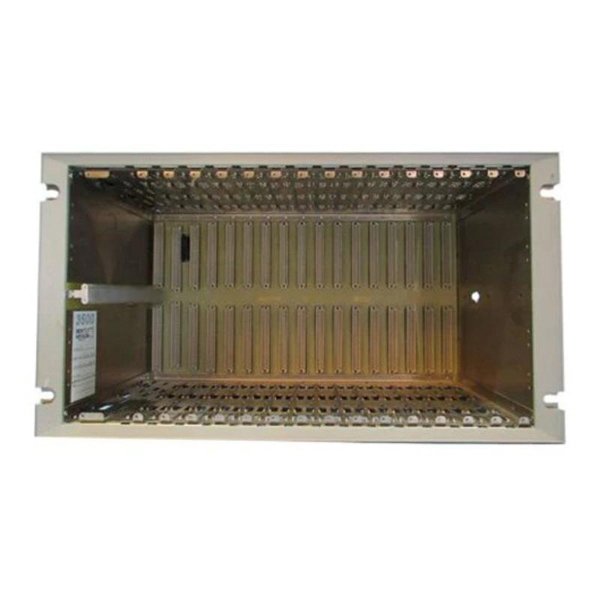

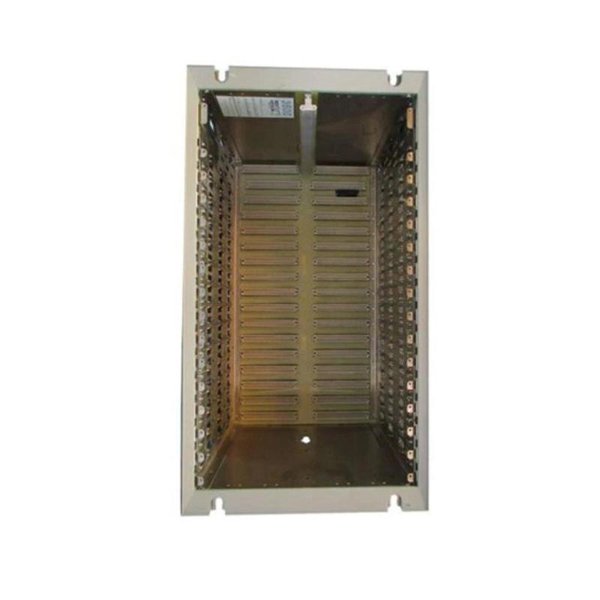

Bently Nevada 3500/05 01-01-00-00-01 3500/05 System Rack

The Bently Nevada 3500/05 System Rack is a key component of the 3500 Machinery Protection System, designed to house and interconnect monitoring modules, power supplies, and communication interfaces. This rack provides a centralized platform for system integration, offering flexibility in configuration and robust reliability for critical machinery applications. Built to accommodate various module combinations, the 3500/05 System Rack ensures high performance in vibration and condition monitoring systems.

Key Features

• Modular rack design for flexible system configuration

• Supports multiple monitoring modules and power supplies

• High-reliability construction for industrial environments

• Compatible with all 3500 series modules

• Easy access for maintenance and module replacement

Technical Specifications

Industry Applications

• Power generation plants

• Oil and gas refineries

• Petrochemical facilities

• Pulp and paper mills

• Marine propulsion systems

• Steel and metal processing plants

Advantages

• Centralized control for condition monitoring

• Modular design simplifies expansion and upgrades

• Supports redundant configurations for critical applications

• Proven reliability in harsh industrial conditions

• Reduces downtime with hot-swappable modules

Frequently Asked Questions (FAQ)

Q1: How many modules can the 3500/05 System Rack support?

It can accommodate up to 14 monitoring and communication modules.

Q2: Is the rack compatible with older Bently Nevada systems?

Yes, it is designed to work with all 3500 series modules.

Q3: Can the rack be installed in both panel and rack configurations?

Yes, it supports both installation types.

Q4: What is the benefit of redundant power supplies?

They ensure continuous operation in case one power supply fails.

Q5: Is the rack field-upgradable?

Yes, modules can be replaced or added without shutting down the system.

Q6: What is the recommended operating temperature?

The rack operates optimally between -30°C and +65°C.

Q7: Does the rack require special cooling?

Typically no, but adequate ventilation is recommended.

Q8: How is the rack secured during installation?

It can be mounted using industry-standard rack or panel fittings.

Q9: Is this rack used in turbine monitoring systems?

Yes, it is widely used in turbine and rotating machinery monitoring.

Q10: Does the rack include any monitoring modules by default?

No, modules are purchased separately based on application needs.
