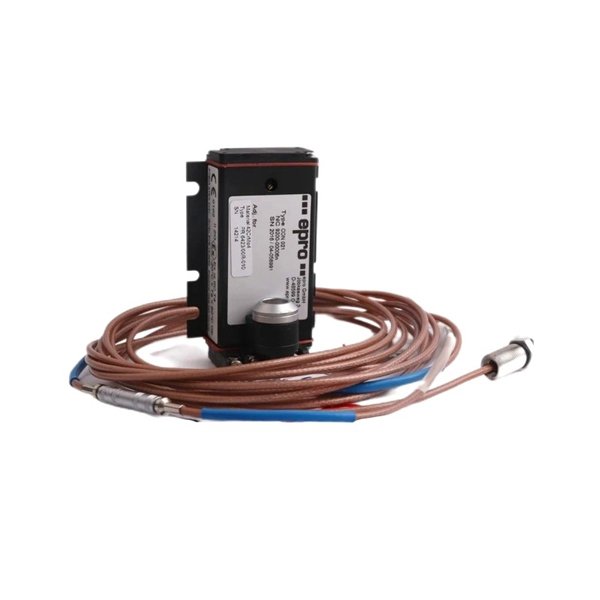

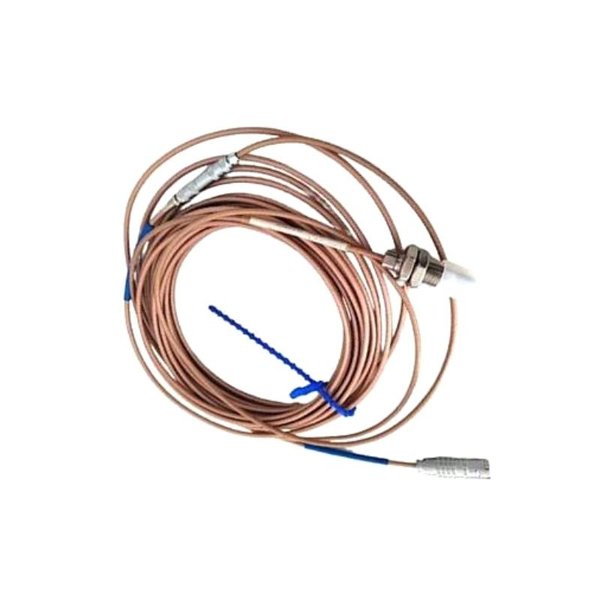

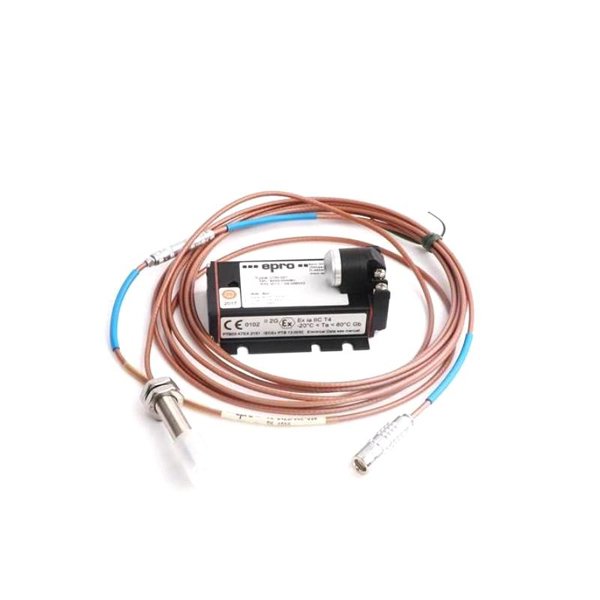

The Epro PR6423/00C-030 8mm Eddy Current Sensor is a cutting-edge non-contact sensor designed to measure displacement, position, and vibration with high precision. This sensor uses the principle of eddy current technology, which allows for accurate and reliable measurements without the need for physical contact with the object being measured. It is equipped with a compact 8mm probe that makes it suitable for tight spaces, ensuring versatility in various industrial applications.

Eddy current sensors like the PR6423/00C-030 are highly effective in applications that involve moving or rotating parts, as they provide real-time data without risk of wear and tear. The sensor is widely used in industries such as automotive, aerospace, machinery monitoring, and manufacturing, where accuracy, reliability, and durability are paramount. This model is particularly designed to operate efficiently in harsh environments, ensuring long-term functionality and performance.

The sensor integrates seamlessly with existing control systems, and its small form factor allows for easy installation in confined spaces, making it a versatile tool for a wide range of industrial automation applications.

Product Specifications

Here are the detailed specifications of the Epro PR6423/00C-030 8mm Eddy Current Sensor:

Applications

The Epro PR6423/00C-030 8mm Eddy Current Sensor is used in a wide range of industrial applications where precise, non-contact measurement is critical. Key applications include:

1. Aerospace Industry: Used for displacement measurement in turbine blades, aircraft components, and other high-precision components, ensuring accuracy and safety in flight systems.

2. Automotive Manufacturing: Ideal for position measurement and monitoring during assembly lines, especially for parts such as crankshafts, camshafts, and other moving parts.

3. Vibration Monitoring: The sensor is widely used in monitoring the vibrations of rotating equipment, such as motors, shafts, and turbines, helping to prevent failure and ensuring operational efficiency.

4. Mechanical System Monitoring: It is used to monitor the alignment and displacement of mechanical parts, ensuring machinery operates smoothly and efficiently, especially in high-speed processes.

5. Rotating Equipment: Ideal for monitoring the position and displacement of shafts, bearings, and other rotating parts in machinery, ensuring their proper alignment and performance.

6. Steel and Metal Manufacturing: The sensor is used in harsh environments, where it monitors the movement of machinery, parts, and components, ensuring optimal performance in industrial metalworking and steel production.

7. High-Speed Machinery: It is suitable for high-speed applications due to its quick response time, making it ideal for use in machinery that operates at high speeds, such as packaging machines, conveyor systems, and CNC machines.

8. Industrial Automation: The PR6423/00C-030 is a key component in automation systems where high accuracy and continuous monitoring of parts and equipment are essential for efficiency.

Advantages

1. Non-Contact Measurement: The Epro PR6423/00C-030 sensor works on the principle of eddy current technology, providing non-contact measurements which eliminate the possibility of wear, friction, or contamination, extending the sensor’s life.

2. High Precision and Accuracy: With a measuring range of ±1 mm and a frequency response of 100 kHz, this sensor is highly accurate, delivering precise measurements for critical applications.

3. Compact and Lightweight: The small 8mm probe diameter and compact size (110 x 20 x 20 mm) make it easy to integrate into tight spaces, ideal for applications with limited space.

4. Versatile Signal Outputs: The sensor provides flexible signal outputs, including both 4-20 mA and 0-10 V analog signals, making it compatible with a wide range of industrial control systems.

5. High-Speed Operation: The sensor’s high-frequency response (up to 100 kHz) ensures that it can operate efficiently in high-speed applications, making it ideal for industries that involve rapid motion.

6. Wide Operating Temperature Range: The PR6423/00C-030 sensor operates in a temperature range from -20°C to +80°C, making it suitable for use in a variety of environmental conditions, from cold to hot industrial environments.

7. Durable and Reliable: The sensor features IP67 protection, making it dust-tight and resistant to water, which ensures its operation even in challenging industrial environments.

8. Easy Integration: The 4-pin M12 connector and threaded mounting design make it easy to integrate the sensor into existing systems without the need for additional complex setup.

9. Long Service Life: Due to its non-contact nature and durable construction, this sensor has a long lifespan, minimizing maintenance requirements and operational downtime.

10. Cost-Effective: The PR6423/00C-030 sensor’s long-term reliability and minimal maintenance make it a cost-effective choice for a wide range of industrial applications.
