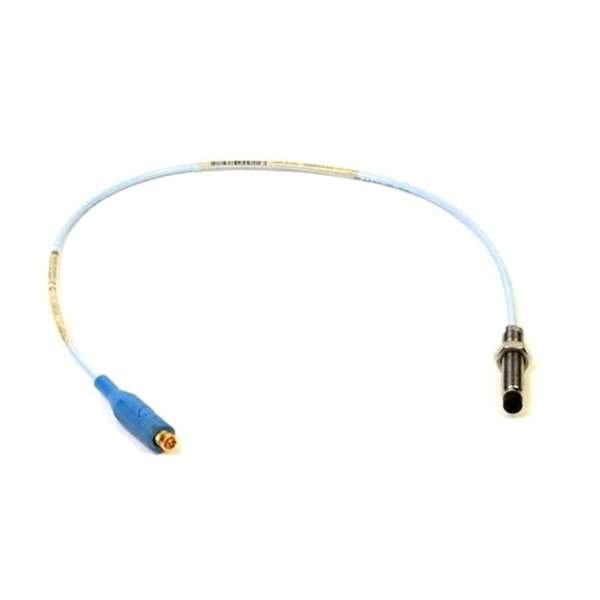

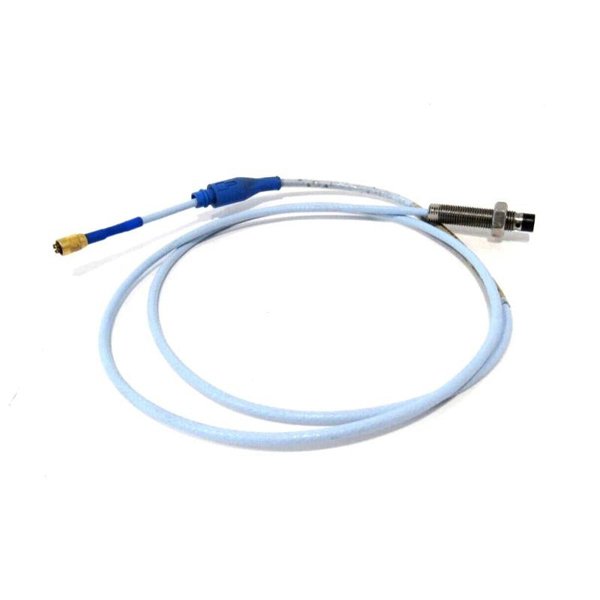

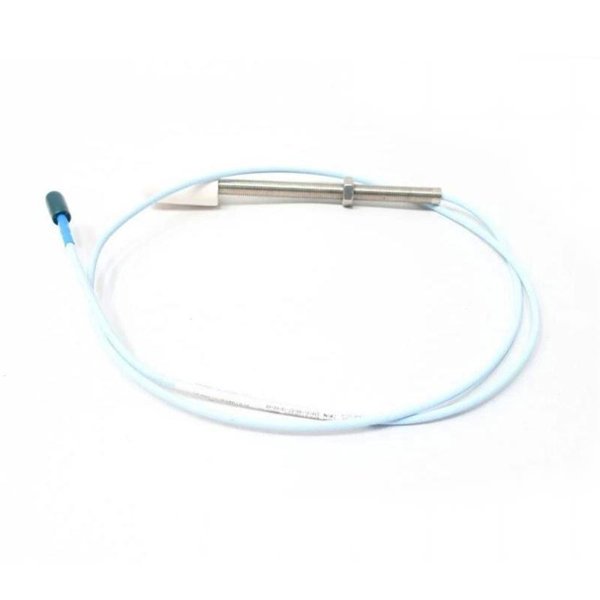

Manufacturer:Bently Nevada
Product Number:330101-20-39-10-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:28
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
The Bently Nevada 330101-20-39-10-02-05 is part of the 3300 XL 8 mm proximity transducer system. It provides a voltage output proportional to the distance between the probe tip and the target surface, enabling accurate static position and dynamic vibration measurements on rotating machinery. The system meets API 670 standards and is fully interchangeable with other XL and non-XL 5 mm and 8 mm components.
Vibration monitoring of fluid-film bearing machines
Shaft position measurement
Keyphasor reference and speed detection
Use in environments with high RFI/EMI immunity
API 670 compliant performance
Excellent linearity and accuracy
Rugged construction with enhanced pull strength
Fully interchangeable components
Optional FluidLoc cable to prevent oil ingress
Extended temperature range options available
| Parameter | Specification |
|---|---|
| System Type | Non-contacting eddy current probe |
| Tip Diameter | 8 mm |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | ~1.27 mm (50 mils) |
| Operating Temperature | -52°C to +177°C (Standard probe) |
| Extended Temperature Range | up to +218°C (probe tip) |
| Frequency Response | 0 to 10 kHz (+0/-3 dB) |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Minimum Target Size | 15.2 mm diameter |
| Shaft Diameter (min.) | 50.8 mm |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
Q1: What is the main function of this proximity probe?
A1: It measures shaft vibration and position by detecting the distance to a conductive surface.
Q2: Is it compliant with API 670 standards?
A2: Yes, it fully meets API 670 standards for mechanical configuration, linearity, and accuracy.
Q3: Can this probe be used at high temperatures?
A3: Yes, with the Extended Temperature Range (ETR) option, it can operate up to 218°C.
Q4: Is the system backward compatible with older 3300 series components?
A4: Yes, it is electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm systems.
Q5: What is the recommended gap setting?
A5: Approximately -9 Vdc output, which corresponds to about 1.27 mm gap.
Q6: Does it require any special tools for installation?
A6: No, the ClickLoc connectors are designed for finger-tight installation.
Q7: What kind of environments is it suitable for?
A7: It is suitable for industrial environments with high electromagnetic interference and extreme temperatures.
Q8: What is the minimum shaft diameter it supports?
A8: Minimum recommended shaft diameter is 50.8 mm.
Q9: Can it be used for speed or overspeed protection?
A9: Yes.
Q10: Does it need calibration for different target materials?
A10: The default calibration is for AISI 4140 steel; calibration for other materials is available on request.
