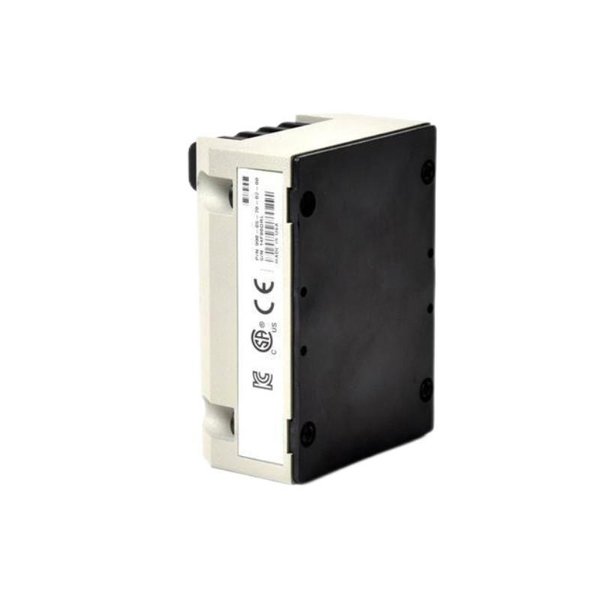

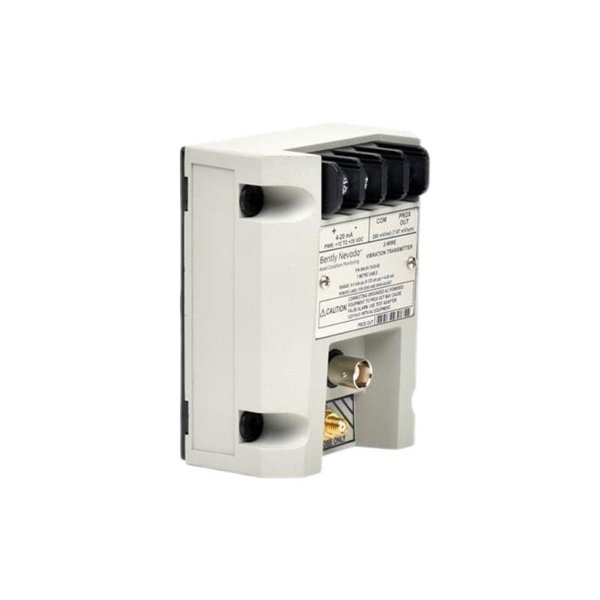

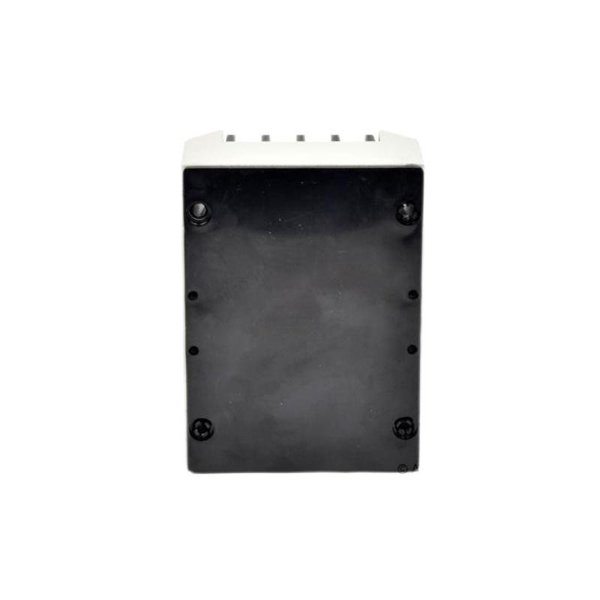

The Bently Nevada 990-05-70-02-01 Vibration Transmitter is part of the trusted 990 series, designed to provide continuous and reliable vibration monitoring for industrial rotating machinery. This specific model is engineered for use in demanding environments where space is limited, yet high-quality vibration trending is required to prevent mechanical failures. It accepts input from industry-standard vibration sensors (e.g., accelerometers or velocity transducers) and converts the measured vibration signal into a scalable 4–20 mA output signal, suitable for integration into DCS, PLC, or SCADA systems.

Ideal for use in process industries, this vibration transmitter enables real-time condition monitoring of motors, pumps, fans, and other rotating equipment. The model 990-05-70-02-01 offers high sensitivity, robust construction, and intrinsic safety certifications for use in hazardous environments.

Key Features

• Converts dynamic vibration signals into a standard 4–20 mA current output

• Accepts input from IEPE (Integrated Electronics Piezo-Electric) accelerometers or velocity sensors

• Suitable for use in hazardous locations with explosion-proof design (ATEX/IECEx available)

• Wide frequency response for monitoring a broad range of machinery conditions

• Compact and rugged design, ideal for harsh industrial environments

• Loop-powered two-wire design simplifies installation

• Factory-configured measurement range with optional custom scaling

• Diagnostic LED indicators (optional, model-specific)

• Field-mountable on or near the machine for easy access

• IP65/NEMA 4X enclosure for environmental protection

Technical Specifications

Industry Applications

The 990-05-70-02-01 Vibration Transmitter is widely used in industries where predictive maintenance and equipment reliability are critical:

• Oil & Gas: Monitoring of compressors, pumps, and fans in hazardous environments

• Power Generation: Condition monitoring of auxiliary motors and turbines

• Water & Wastewater: Protection of pumps and blowers in treatment plants

• Chemical & Petrochemical: General-purpose vibration monitoring on process machines

• Food & Beverage: Clean-in-place compliant machinery monitoring (select models)

• Pulp & Paper: Asset protection for dryers, rolls, and refiners

Product Advantages

• Industrial-Grade Reliability: Engineered for 24/7 performance in harsh conditions

• Early Fault Detection: Enables proactive maintenance and failure prevention

• Flexible Integration: Works seamlessly with most control systems using 4–20 mA input

• Hazardous Area Compliance: Certified for use in explosive atmospheres (model-dependent)

• Compact Design: Small footprint allows installation in space-restricted locations

• Cost-Effective Monitoring: Suitable for assets that don’t require full protection systems

• Minimal Maintenance: No recalibration needed under normal operating conditions

• Quick Deployment: Factory-calibrated and easy to wire into existing loops

Frequently Asked Questions (FAQ)

1. What does the 990-05-70-02-01 vibration transmitter do?

It converts vibration signals from sensors into a 4–20 mA output signal for use in control systems.

2. What type of sensors can be used with this transmitter?

IEPE-type accelerometers or velocity sensors are compatible.

3. Is this model suitable for use in explosive environments?

Yes, this model is designed with explosion-proof housing and may carry ATEX/IECEx certification.

4. What kind of output does it provide?

A loop-powered 4–20 mA signal that represents the vibration level (velocity or acceleration).

5. How is the device powered?

It is powered through the 4–20 mA loop (12–30 VDC).

6. Can I mount it directly on a machine?

Yes, it is designed for field mounting close to or directly on machinery.

7. Is the output scalable or configurable?

The range is factory-set, but custom scaling can be requested at the time of order.

8. Does it require recalibration?

No routine recalibration is needed under standard industrial conditions.

9. What is the typical vibration range this model monitors?

A common range is 0–25 mm/s RMS (velocity), though others can be specified.

10. What control systems can it connect to?

Any PLC, DCS, or SCADA system that accepts 4–20 mA analog input.
