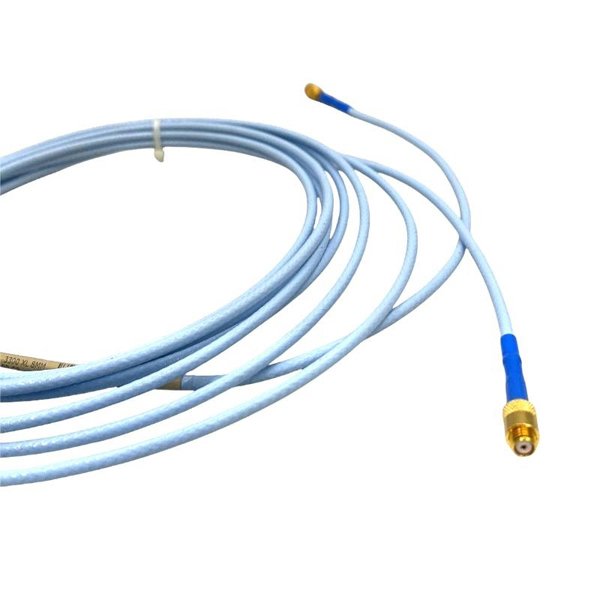

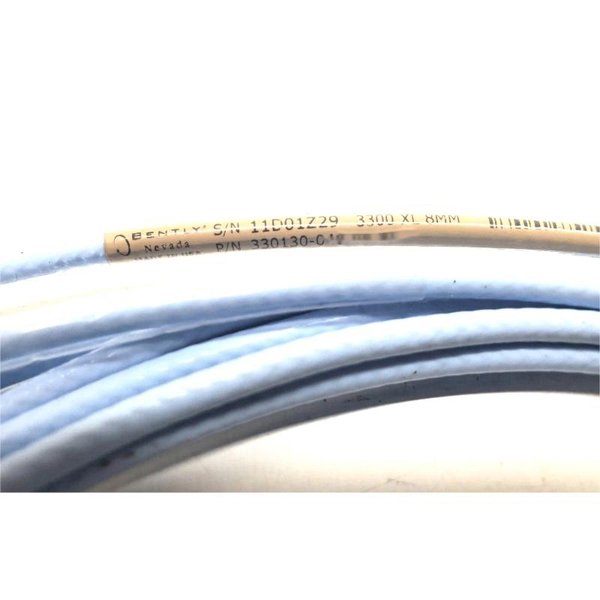

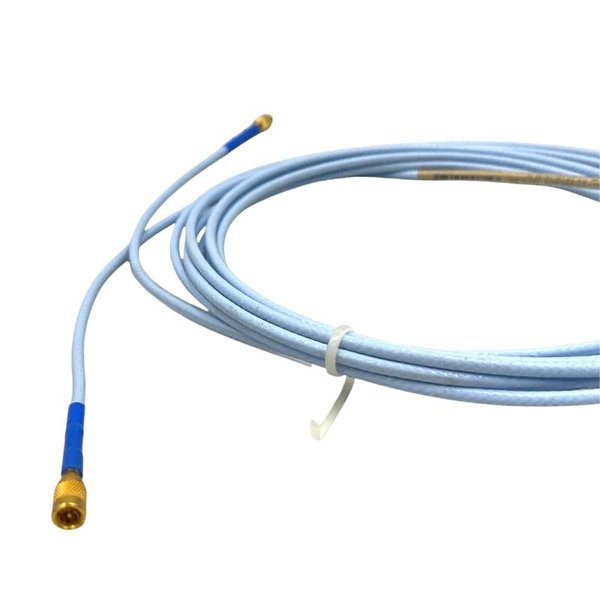

Bently Nevada 330130-075-02-05 3300 XL Standard Extension Cable
Manufacturer:Bently Nevada
Product Number:330130-075-02-05
Product Type:3300 XL Standard Extension Cable
Origin:USA
Cable Length:7.5 meters
Weight:0.255 kg
Views:65
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The 330130-075-02-05 is a 7.5-meter extension cable used in the Bently Nevada 3300 XL 8 mm Proximity Transducer System. It links the proximity probe to the Proximitor Sensor, ensuring reliable transmission of vibration and position signals for rotating machinery monitoring.
Applications
-
Vibration monitoring in fluid-film bearing machines
-
Shaft position measurements
-
Keyphasor reference signal transmission
-
High-temperature industrial environments
-
Machinery health diagnostics in turbines, compressors, and motors
Product Advantages
ClickLoc Connectors – Secure, tool-free connection with a positive “click” to confirm proper mating
CableLoc Design – Withstands 330 N (75 lbf) of pull strength
FluidLoc Optional Cable – Prevents oil migration through the cable
High RFI/EMI Immunity – Suitable for harsh industrial and radio-sensitive environments
Full Compatibility – Interchangeable with other 3300 XL system components without recalibration
Extended Temperature Range Compatibility
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330130-075-02-05 |
| Cable Type | Standard 75Ω triaxial FEP insulated |
| Cable Length | 7.5 meters |
| Cable Weight | 0.255 kg (255 g) |
| Capacitance | 69.9 pF/m (typical) |
| RCORE (Center Conductor) | 1.65 ± 0.25 Ω |
| RJACKET (Outer Conductor) | 0.49 ± 0.10 Ω |
| Min. Cable Bend Radius | 25.4 mm |
| Operating Temperature (Standard) | -52°C to +177°C |
| Operating Temperature (ETR) | -52°C to +260°C |
| Connector Type | Miniature ClickLoc (gold-plated) |
| Pull Strength | 270 N at cable connectors |
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330130-075-02-05 extension cable?
A1: It connects the proximity probe to the Proximitor Sensor, ensuring signal integrity in vibration and position monitoring.
Q2: Can I use this cable in high-temperature environments?
A2: Yes, it supports up to 177°C (standard) or 260°C (with ETR version).
Q3: Does the cable come with connector protection?
A3: Yes, the “02” option includes a standard cable with connector protector.
Q4: Is it compatible with older 3300 non-XL systems?
A4: Yes, it is physically and electrically compatible with non-XL 3300 8 mm systems.
Q5: What type of connector is used?
A5: The cable uses a gold-plated ClickLoc connector requiring only finger-tight torque.
Q6: What is the maximum length allowed for field wiring?
A6: Up to 305 meters (1,000 feet) between Proximitor Sensor and monitor.
Q7: Is FluidLoc available on this cable?
A7: Not on this model; FluidLoc is available on different part number options (e.g., –10 or –12).
Q8: What is the typical application for this cable?
A8: It is used in turbine, compressor, and motor condition monitoring systems.
Q9: Is recalibration needed when changing cable lengths?
A9: No. All 3300 XL components are interchangeable without recalibration.
Q10: How is the cable mounted?
A10: It connects via ClickLoc connectors and can be routed through conduits using optional protectors.
