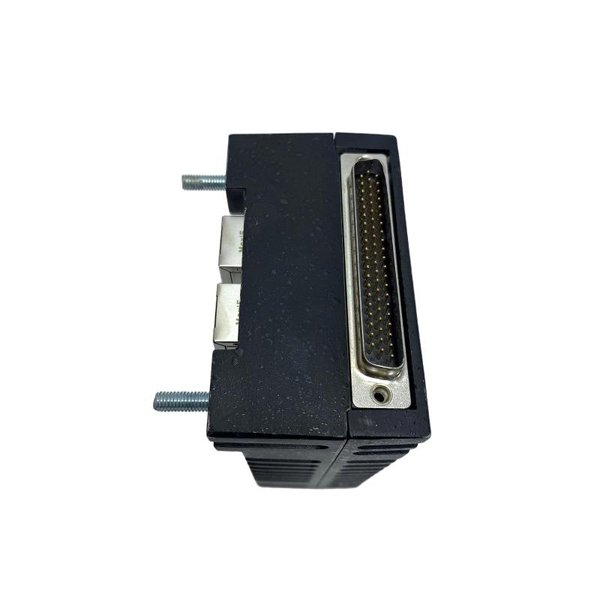

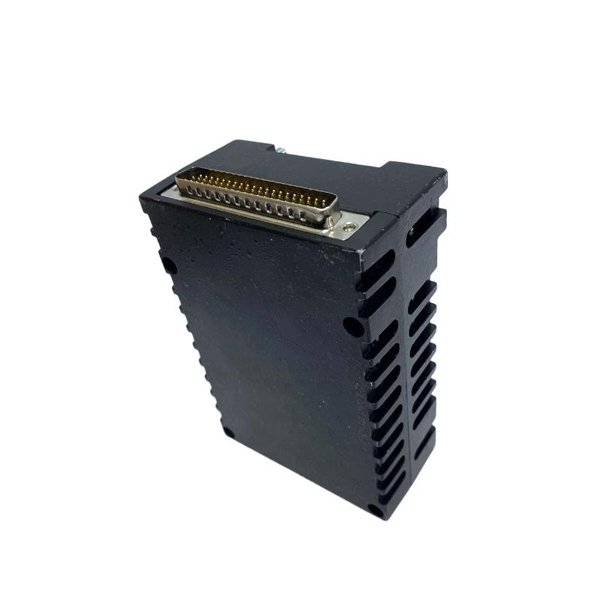

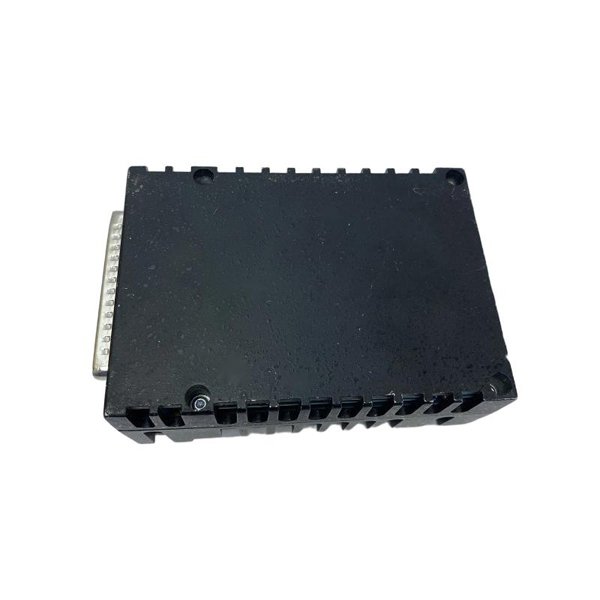

The GE IS220YVIBS1AM Vibration Monitoring I/O Pack is a specialized module designed for GE Mark VIe and Mark V turbine control systems to provide comprehensive vibration monitoring and protection for rotating machinery.

It collects, processes, and communicates vibration signals from proximity probes, accelerometers, and other vibration sensors to the turbine control system, enabling early detection of mechanical issues.

Engineered with robust industrial-grade components and multi-layer PCB construction, this module ensures high signal integrity, immunity to electrical noise, and reliable operation in demanding industrial environments.

The IS220YVIBS1AM is critical for protecting turbines, generators, and auxiliary machinery from mechanical faults, ensuring continuous and safe operation of high-value assets.

Product Specifications

Applications

• Turbine Vibration Monitoring – Monitors axial, radial, and thrust vibrations of gas and steam turbines.

• Generator Protection – Detects vibration anomalies in turbine-driven generators.

• Industrial Rotating Machinery – Interfaces with pumps, compressors, and motors to monitor mechanical health.

• Oil & Gas Facilities – Provides early fault detection in compressors, turbines, and other critical equipment.

• Combined-Cycle Power Plants – Ensures mechanical integrity of turbines and auxiliaries operating in series.

• Retrofits & Upgrades – Serves as a replacement or expansion module for older vibration monitoring systems.

Advantages

• High-Precision Signal Acquisition – Supports high-speed sampling to detect subtle mechanical issues.

• Robust Isolation – Optical and galvanic isolation protect sensitive control electronics from sensor transients.

• Advanced Diagnostics – Real-time monitoring and fault reporting reduce risk of unplanned downtime.

• Seamless System Integration – Fully compatible with Mark VIe and Mark V turbine control platforms.

• Durable Construction – Multi-layer PCB and industrial-grade components withstand vibration and electrical noise.

• Scalable Architecture – Can handle multiple sensors, supporting system expansions as needed.

• Compact Form Factor – Efficient design for rack and panel mounting in turbine control cabinets.

• Maintenance Friendly – Modular design allows quick replacement and simplified troubleshooting.

FAQ

1. Which turbine control systems are compatible with the IS220YVIBS1AM?

   It is designed for GE Mark VIe and Mark V systems.

2. What types of vibration sensors can the module interface with?

   It supports proximity probes, accelerometers, and velocity sensors.

3. What is the sampling rate per channel?

   Up to 25 kHz per sensor channel.

4. Does the module provide isolation for sensor inputs?

   Yes, both optical and galvanic isolation are implemented.

5. Which communication interfaces are available?

   High-speed backplane connector and a diagnostic port.

6. Can the module be mounted in both rack and panel configurations?

   Yes, it is compatible with standard Mark VIe chassis mounting.

7. Does it support real-time fault detection?

   Yes, integrated diagnostics provide continuous monitoring and alerts.

8. What is the nominal input voltage for operation?

   The board operates at 24 VDC supplied via the system chassis.

9. Is hot-swap replacement supported?

   Controlled replacement is possible during maintenance mode.

10. Can the module handle multiple sensors simultaneously?

    Yes, it is designed to manage multiple vibration inputs with high precision.
