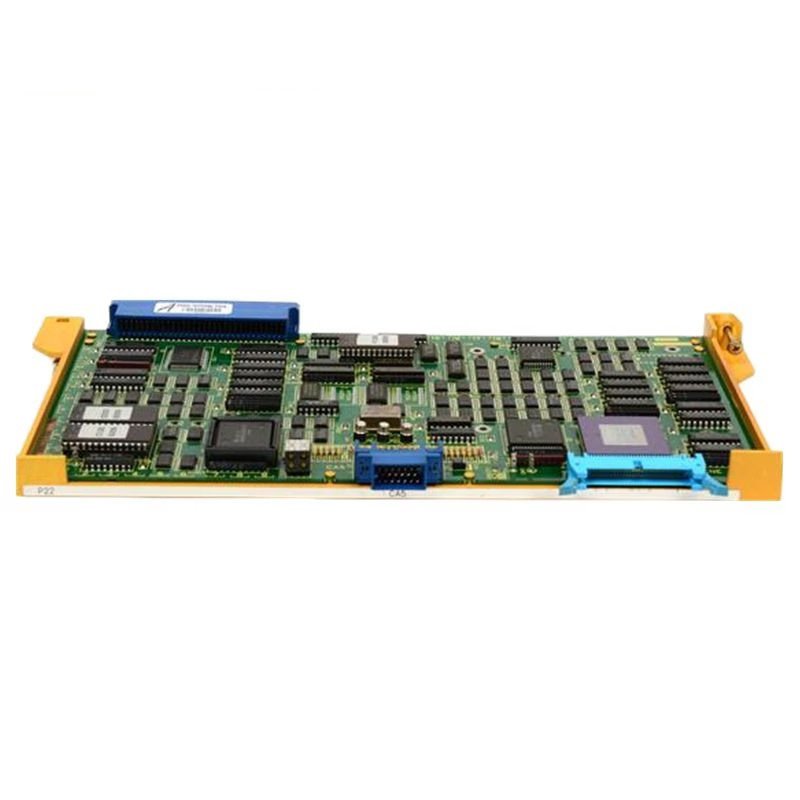

GE Fanuc A16B-2200-0160/07B Graphic CPU Module

The GE Fanuc A16B-2200-0160/07B is a Graphic CPU module designed for the Fanuc 15 series CNC controls, which were extensively used in CNC machine tools during the 1980s and 1990s. This module plays a critical role in processing and converting control data into a visual format that appears on the machine’s monitor. It allows the operator to interact with the CNC machine, monitor its operations, visualize tool paths, and adjust settings as needed. Although it is an older model, the A16B-2200-0160/07B remains reliable and is supported by Fanuc, though finding replacements may become increasingly difficult due to its rarity.

Technical Specifications

• Product Type: Graphic CPU Module
• Manufacturer: GE Fanuc
• Application: CNC controls for industrial automation
• Operating Voltage: 5V DC
• Processor: ARM Cortex-A8
• Communication Interfaces:
  • Ethernet
  • RS-232
  • RS-485
• Display Function: Converts control data to a visual display
• Service Life: Long-lasting and reliable, though parts are becoming scarce
• Compatibility: Works with Fanuc 15 series CNC controls
