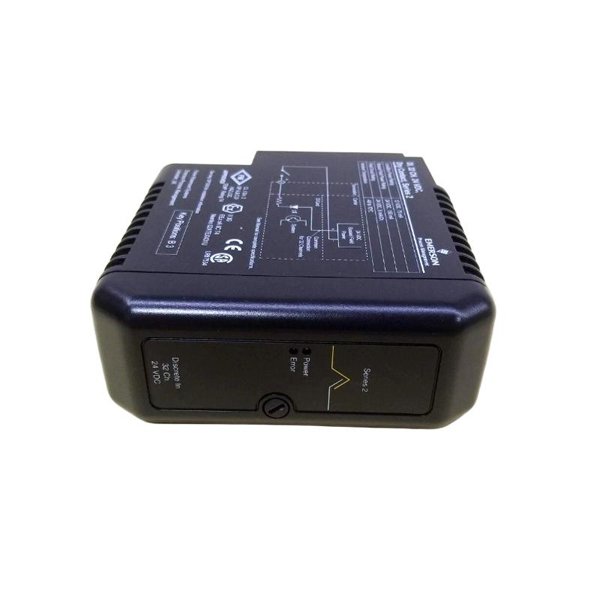

The Emerson VE4001S2T2B4 KJ3203X1-BA1 + KJ4001X1-CJ1 is a robust and highly flexible input module designed for industrial applications. As part of the DeltaV™ control system family, this module allows users to monitor and control a wide array of industrial processes with precision, reliability, and ease of integration.

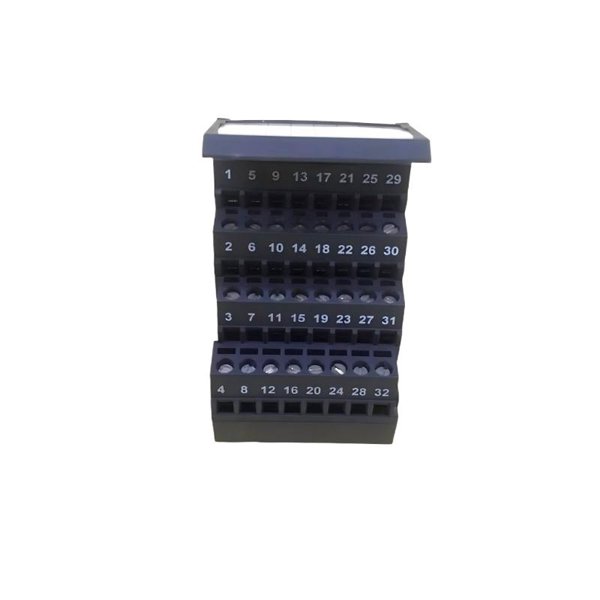

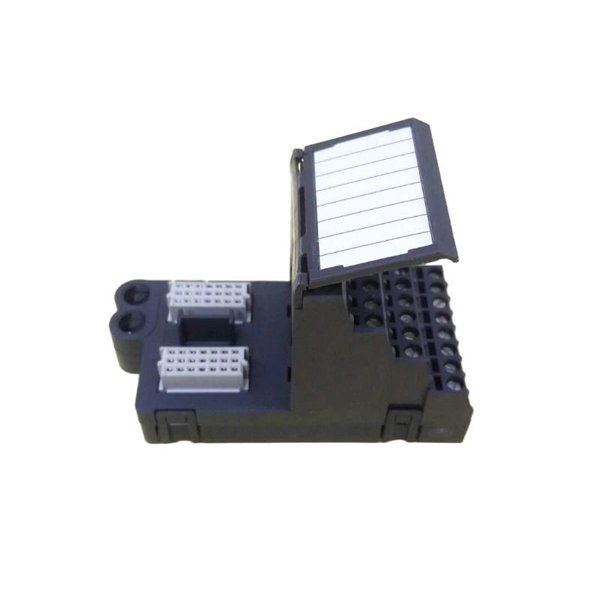

This input module comes with terminal blocks to simplify the installation and wiring process, reducing installation time and minimizing the possibility of errors. It supports both analog and digital inputs, allowing for comprehensive signal acquisition from various field devices, including sensors, actuators, and transducers.

The module integrates seamlessly into Emerson’s DeltaV™ control systems and is built to handle the demanding requirements of industries such as chemical processing, oil and gas, manufacturing, and power generation. The VE4001S2T2B4 module provides a high-performance interface between field devices and the control system, delivering accurate data acquisition for effective process monitoring.

Product Specifications

Product Applications

The Emerson VE4001S2T2B4 KJ3203X1-BA1 + KJ4001X1-CJ1 input module is widely used across various industries due to its flexibility and performance. Its applications include:

1. Industrial Automation Systems

   The module is integral to industrial automation systems, providing essential data acquisition from sensors, actuators, and other field devices. It facilitates the control and monitoring of processes such as temperature, pressure, flow, and more.

2. Energy and Power Monitoring

   It is frequently used in energy management systems to gather critical data for optimizing energy consumption and ensuring energy efficiency across industrial plants, buildings, and power generation systems.

3. Oil and Gas Operations

   In the oil and gas industry, the module is deployed for monitoring equipment like pumps, valves, and flow meters, ensuring operational reliability, safety, and optimization of resource use.

4. Process Control and Automation

   The module provides the interface for process control systems in various manufacturing applications, ensuring that processes are properly monitored and controlled for optimal performance and efficiency.

5. Building Automation Systems

   For building automation, this module connects with devices like HVAC systems, lighting controls, and other building systems, providing comprehensive data to help manage and optimize building performance.

6. Environmental Monitoring Systems

   The VE4001S2T2B4 is ideal for environmental monitoring applications, including the measurement of air quality, humidity, and temperature, providing real-time insights for regulatory compliance and operational efficiency.

Product Advantages

• Flexible Signal Processing

  The VE4001S2T2B4 supports both digital and analog inputs, giving users the flexibility to interface with a wide variety of field devices, ranging from simple switches to complex sensors and actuators.

• Easy Installation and Maintenance

  Equipped with terminal blocks, the module simplifies wiring and installation processes, reducing the time and effort required for setup. The terminal block design also makes it easier to perform maintenance and replace devices without requiring complex reconfiguration.

• Seamless Integration with DeltaV™ Systems

  Fully compatible with Emerson DeltaV™ control systems, the module integrates effortlessly into existing systems, enabling fast deployment and reducing the risk of compatibility issues.

• Enhanced Protection Features

  The module includes built-in overcurrent and overvoltage protection, safeguarding both the module and connected field devices from electrical surges or faults.

• Robust and Reliable

  Designed to meet the demands of industrial environments, the VE4001S2T2B4 has an IP20 environmental rating and is capable of operating in temperatures from -20°C to +60°C, making it suitable for a wide range of industrial and environmental conditions.

• Scalable and Expandable

  The module is highly scalable, allowing it to be used in small to large-scale systems. Its modular nature allows for easy expansion as the needs of the process or system evolve over time.

FAQ

1. What is the primary function of the VE4001S2T2B4 module?

   The module is designed for data acquisition from various field devices, supporting both digital and analog signals. It facilitates monitoring and control in industrial automation systems.

2. What input types are supported by the VE4001S2T2B4 module?

   The VE4001S2T2B4 supports both digital and analog inputs, enabling it to interface with a wide range of devices, from simple switches to complex sensors.

3. Is the VE4001S2T2B4 compatible with other Emerson systems?

   Yes, the VE4001S2T2B4 is fully compatible with Emerson DeltaV™ control systems, providing seamless integration into existing control systems.

4. What communication protocols are supported by the VE4001S2T2B4 module?

   The module supports Modbus, Profibus, and Fieldbus, allowing for flexible integration with various industrial control networks.

5. How does the terminal block system work on the VE4001S2T2B4?

   The terminal block system allows for easy wiring and installation. It provides secure connections for field devices and simplifies maintenance and troubleshooting.

6. What is the power supply requirement for the VE4001S2T2B4 module?

   The module requires a 24 V DC nominal power supply to operate efficiently within an industrial control system.

7. What is the environmental protection rating of the VE4001S2T2B4?

   The VE4001S2T2B4 has an IP20 environmental rating, meaning it is protected against solid objects greater than 12 mm in diameter but is not protected against water.

8. Can the VE4001S2T2B4 module operate in high-temperature environments?

   Yes, it has an operating temperature range of -20°C to +60°C, allowing it to function in a wide variety of environmental conditions.

9. What types of protection does the VE4001S2T2B4 offer?

   The module includes overcurrent and overvoltage protection, which safeguards the device and connected field devices from electrical faults.

10. Is the VE4001S2T2B4 module scalable for large systems?

    Yes, the module is highly scalable and can be integrated into both small and large-scale systems, making it suitable for expanding systems.
