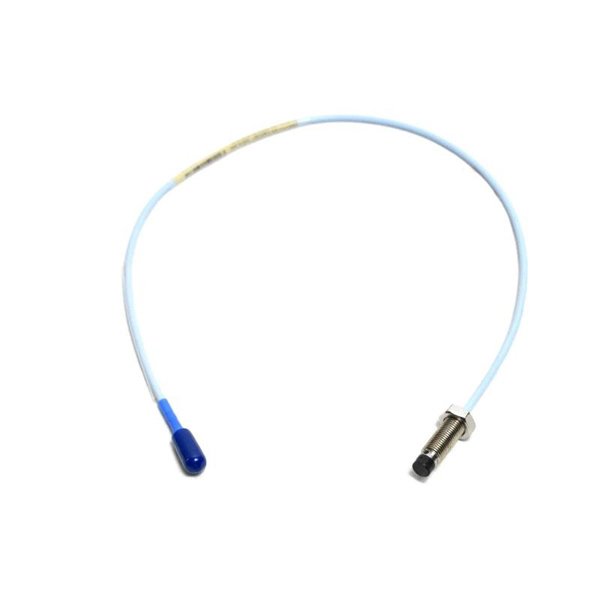

Bently Nevada 330101-20-36-10-02-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-20-36-10-02-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:33
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-20-36-10-02-00 is a high-performance 3300 XL 8 mm proximity probe. It measures both static (position) and dynamic (vibration) parameters in fluid-film bearing machinery. Designed for demanding environments, it offers improved ruggedness, superior RFI/EMI immunity, and reliable interchangeability without recalibration.
Technical Specifications
| Parameter | Value |
|---|---|
| System Type | 3300 XL 8 mm Proximity Transducer |
| Application | Vibration & Position Measurement |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Frequency Response | 0 to 10 kHz |
| Temperature Range | -52°C to +177°C (standard) |
| Pressure Seal | Viton® O-ring sealed |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Diameter | 8 mm |
| Material | Stainless Steel, PPS tip |
| Cable Type | FEP insulated triaxial |
Applications
-
Vibration monitoring in turbines, compressors, and pumps
-
Shaft position detection
-
Keyphasor and speed measurements
-
Critical machinery health diagnostics
Advantages
-
Full API 670 compliance
-
Robust mechanical design for harsh environments
-
Backward and forward compatibility with 3300 series
-
Simple field installation with ClickLoc connectors
-
Extended temperature and fluid-sealed options available
-
No need for component-specific calibration
FAQ
Q1: What is the primary use of the 330101-20-36-10-02-00 probe?
A1: It is used for vibration and position measurement on rotating machinery.
Q2: Does this probe require calibration with specific components?
A2: No, all components are interchangeable without calibration.
Q3: What is the recommended installation gap?
A3: Approximately 1.27 mm (50 mils).
Q4: Can it operate in high-temperature environments?
A4: Yes, up to +177°C standard, or +218°C with ETR versions.
Q5: Is the probe resistant to oil ingress?
A5: Yes, when ordered with FluidLoc cable option.
Q6: Are the connectors tool-free?
A6: Yes, ClickLoc connectors tighten by hand until they click.
Q7: What shaft diameters is it suitable for?
A7: Minimum recommended shaft diameter is 76.2 mm (3 inches).
Q8: Is it compliant with API 670?
A8: Yes, it fully meets API 670 standards.
Q9: What is the linear measurement range?
A9: 2 mm (80 mils).
Q10: Can it be used in hazardous areas?
A10: Yes, with appropriate certifications (CSA, ATEX, IECEx).
