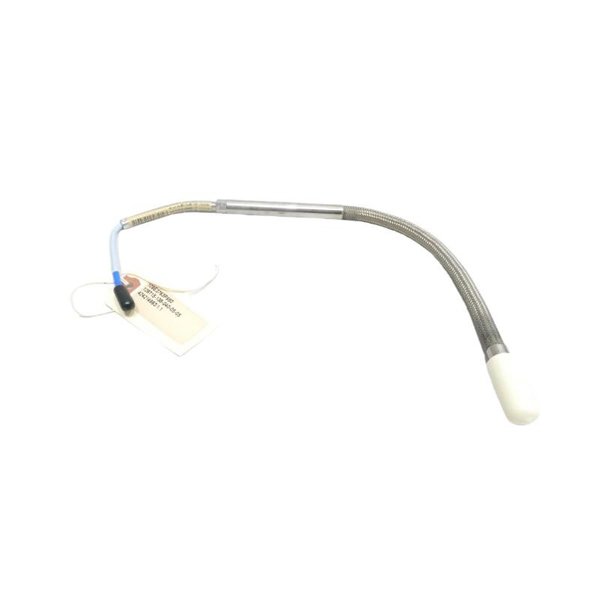

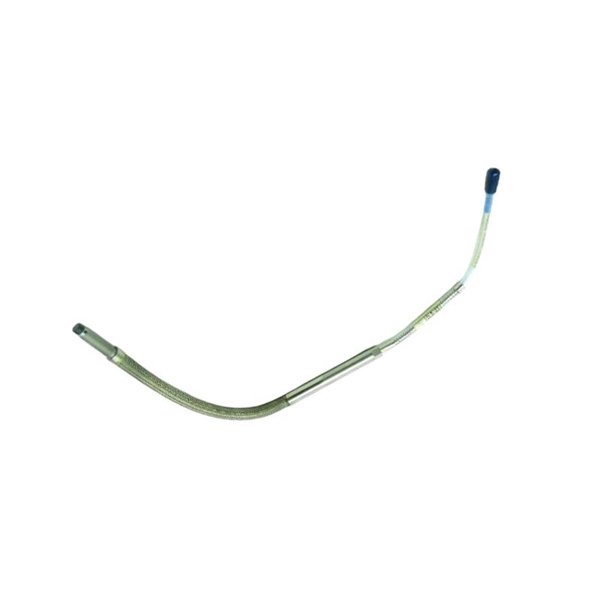

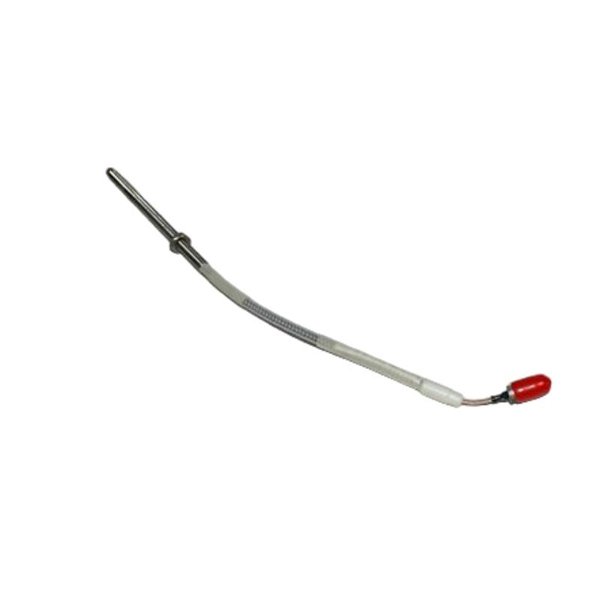

The Bently Nevada 129715-102-015-05-05 3300 XL Proximity Sensor is a high-precision device designed to measure the displacement of rotating machinery components. Part of the 3300 XL series, this proximity sensor is engineered for continuous, reliable performance in a wide range of industrial applications. It is commonly used in machinery condition monitoring systems for critical rotating equipment, such as turbines, compressors, motors, and pumps.

The sensor operates by detecting the relative position between itself and the target, providing highly accurate displacement measurements. This data is essential for predictive maintenance programs, where early detection of machine issues can prevent unexpected failures, reduce downtime, and extend the life of machinery. The 3300 XL series is renowned for its durability and robustness, capable of operating in harsh industrial environments, including high vibration, temperature extremes, and other challenging conditions.

Product Parameters

Product Applications

The Bently Nevada 129715-102-015-05-05 3300 XL Proximity Sensor is used in a variety of critical industrial applications where precision is essential for machinery monitoring. Its applications include:

• Turbine Monitoring: It provides real-time measurement of turbine shaft displacement to ensure safe and efficient operation.

• Compressor and Pump Monitoring: The sensor is used to monitor the position of shafts in compressors and pumps, helping detect misalignment or wear that could lead to system failure.

• Electric Motor and Generator Monitoring: It is essential for tracking shaft position and vibrations in motors and generators, detecting issues early to avoid costly repairs.

• Mechanical Seal Monitoring: In pump and turbine systems, it ensures that mechanical seals are functioning correctly, preventing leaks and maintaining system pressure.

• Conveyor Systems: Proximity sensors are used to detect misalignment and wear in conveyor systems, preventing costly disruptions to material handling processes.

• Industrial Equipment: The 3300 XL sensor can be used in a wide range of industrial equipment, including fans, compressors, and mixers, to monitor displacement and prevent unplanned shutdowns.

Advantages of the Product

1. Highly Accurate Displacement Measurement: The 3300 XL Proximity Sensor delivers precise measurements of machine displacement, ensuring that even minor changes in machine position are detected for early maintenance intervention.

2. Durability and Reliability: Designed for tough industrial environments, the 3300 XL Proximity Sensor can operate in temperatures ranging from -40°C to +85°C and resist vibration and shock.

3. Ease of Integration: With a 4-20 mA analog output, the sensor easily integrates with existing monitoring systems, making it a versatile solution for industrial machine health diagnostics.

4. Wide Sensing Range: The sensor provides a maximum sensing range of up to 4.5 inches (11.43 cm), accommodating various machine configurations and sizes.

5. Vibration and Shock Resistance: The 3300 XL Proximity Sensor can withstand vibrations of up to 50 g and shocks of up to 100 g, ensuring reliable operation even in demanding conditions.

6. Cost-Effective Predictive Maintenance: By continuously monitoring the displacement and condition of rotating equipment, the sensor helps reduce unplanned downtime, lower maintenance costs, and extend the lifespan of machinery.

7. Compact Design: The small footprint and flexible mounting options (threaded or bolt-on) make the sensor easy to install in a variety of industrial settings.

8. Long-Term Performance: With its long lifespan and minimal maintenance needs, the Bently Nevada 3300 XL sensor offers excellent value over time, contributing to the overall efficiency and reliability of your equipment.

FAQs

1. What is the output signal of the 3300 XL Proximity Sensor?

   • The sensor provides a 4-20 mA analog output signal, which is compatible with most industrial control systems.

2. Can the 3300 XL Proximity Sensor operate in extreme temperatures?

   • Yes, it can function in operating temperatures between -40°C to +85°C, making it suitable for use in a wide range of environmental conditions.

3. What is the maximum sensing range of this sensor?

   • The 3300 XL Proximity Sensor has a sensing range of up to 4.5 inches (11.43 cm), which is ideal for many industrial applications.

4. What type of mounting options are available for the sensor?

   • The sensor can be mounted using either a threaded or bolt-on method, offering flexibility depending on the installation requirements.

5. How resistant is the 3300 XL Proximity Sensor to vibration?

   • The sensor can resist up to 50 g of vibration within the frequency range of 20 to 2000 Hz.

6. What is the shock resistance of the 3300 XL Proximity Sensor?

   • It can withstand shocks of up to 100 g (1 ms), making it reliable in environments with sudden mechanical impacts.

7. How does the 3300 XL Proximity Sensor support predictive maintenance?

   • By measuring displacement, the sensor helps detect misalignment, wear, or other mechanical issues early, reducing downtime and enabling efficient maintenance.

8. What power supply is required for the 3300 XL Proximity Sensor?

   • The sensor operates on a DC power supply ranging from 18 to 30 V.

9. What industries benefit from using the Bently Nevada 3300 XL Proximity Sensor?

   • It is widely used in power generation, oil & gas, petrochemical, and manufacturing industries, particularly in turbine, pump, motor, and compressor applications.

10. How easy is it to integrate the 3300 XL Proximity Sensor into existing systems?

    • The 3300 XL is designed for easy integration, providing a 4-20 mA output that is compatible with most monitoring and control systems in industrial settings.
