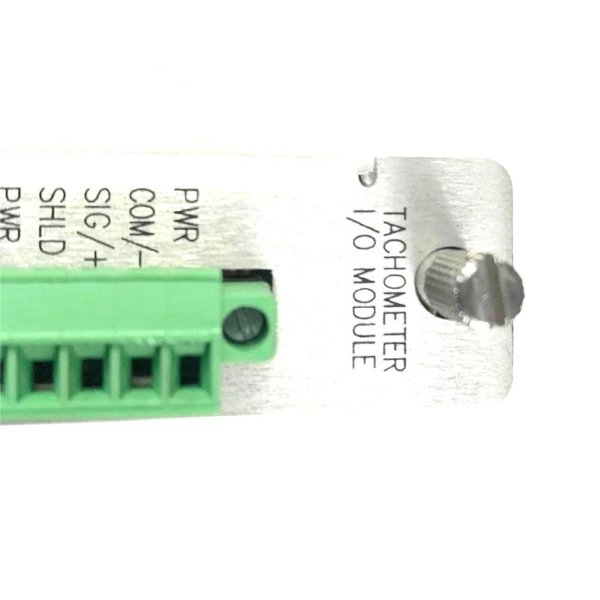

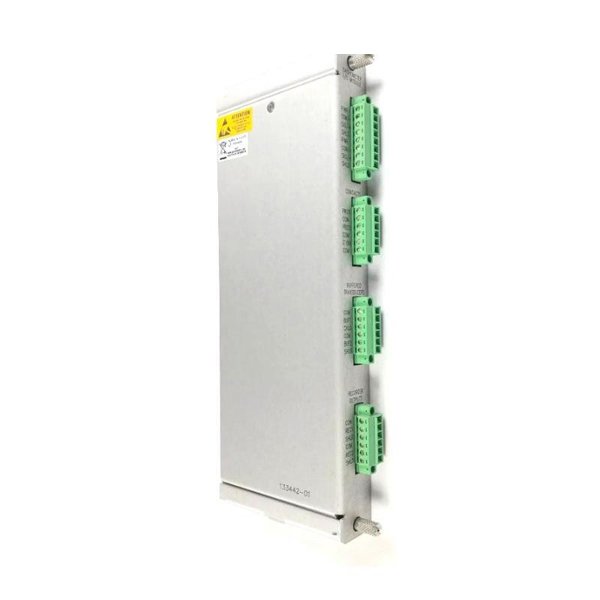

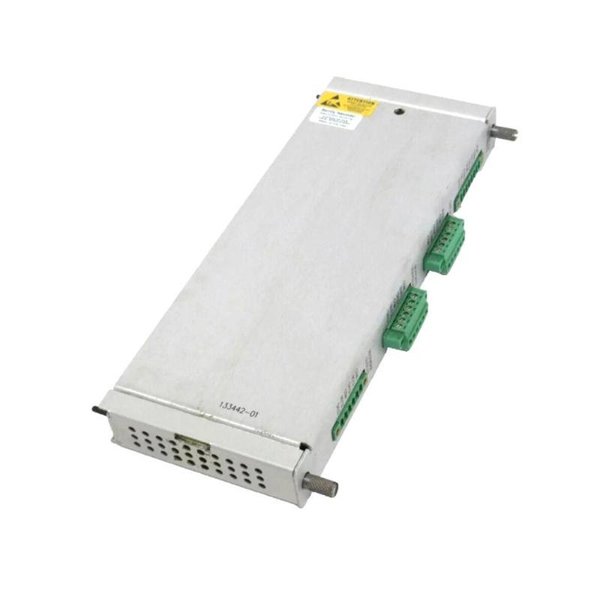

Bently Nevada 3500/50-01-00 133442-01 Tachometer Module

The 3500/50 Tachometer Module (Part Number 133442‑01) is part of the Bently Nevada 3500 Series machinery monitoring system. It is a dual-channel tachometer input module that accepts signals from proximity probes or magnetic pickups to determine shaft rotational speed, acceleration, zero-speed, or reverse rotation. The module features internal wiring terminations for simplified installation and integrates with other 3500 rack modules via the backplane for alarm processing, Keyphasor signal generation, and condition monitoring.

Key Features

• Dual-channel input from proximity probes or magnetic pickups

• Supports configurable functions: speed, acceleration, zero-speed, reverse rotation, speed bands, setpoint alarming

• Peak hold: stores highest speed, reverse peak, and number of reverse rotations

• Provides conditioned Keyphasor signals via backplane (eliminating separate Keyphasor module)

• Internal termination simplifies wiring and reduces installation complexity

• Front-panel LEDs for module OK, TX/RX (communication), and bypass status

Technical Specifications

Industry Applications

• Shaft speed monitoring in turbines, compressors, pumps, and motors

• Rotor acceleration and overspeed alert detection

• Zero-speed detection and reverse rotation monitoring

• Keyphasor signal generation for phase-referenced vibration analysis

• Industrial process and condition monitoring in power generation, petrochemical, and rotating machinery automation

Product Advantages

• Provides accurate and configurable speed-related diagnostics and alarming

• Dual-channel processing and peak-hold features enhance fault detection

• Internal termination reduces external complexity and wiring errors

• Integrated Keyphasor output eliminates standalone timing modules

• Rugged design suitable for harsh industrial environments

• Compatible with TMR (Triple Modular Redundant) architectures for increased reliability

Frequently Asked Questions (FAQ)

1. How many transducer signals does it support?

   Two channels—each can receive a signal from proximity probe or magnetic pickup.

2. What input signal ranges and impedances are supported?

   Accepts +10 V to −24 V; input impedance selectable as 20 kΩ, 40 kΩ (TMR), or 7.15 kΩ (barrier).

3. What is the maximum measurable shaft speed?

   Up to 99,999 rpm; input frequency supported up to 20 kHz.

4. What accuracy can be expected?

   Better than ±0.1 rpm under 100 rpm; ±1 rpm below 10,000 rpm; ±0.01% at higher speeds.

5. Does it support keyphasor output?

   Yes—conditioned Keyphasor signals are output via the rack backplane.

6. What is the module’s power usage?

   Typically ~5.8 W.

7. Is the module temperature rated for harsh conditions?

   Yes—it operates from −30 °C to +65 °C.

8. Can it hold peak speed values?

   Yes—it stores peak forward and reverse speeds and the count of reverse rotations.

9. What indicators does it feature?

   Front LEDs for OK, TX/RX communications, and bypass status.

10. Does the package include internal wiring terminations?

    Yes—this version includes internal termination for simplified installation.
