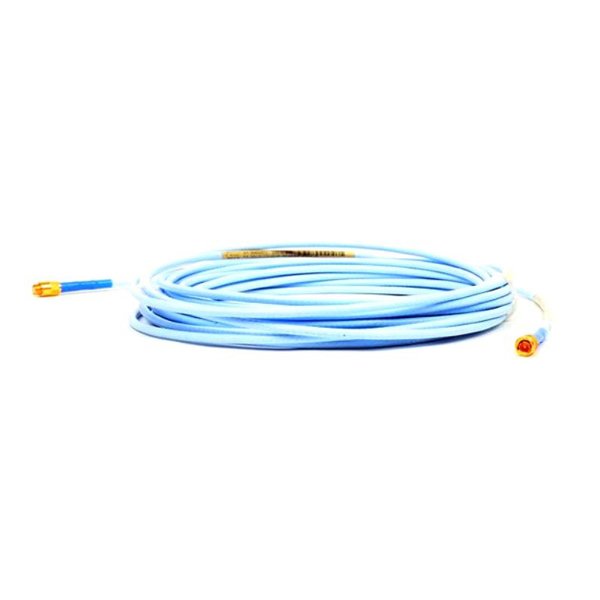

Bently Nevada 330130-070-01-05 3300 XL Standard Extension Cable
Manufacturer:Bently Nevada
Product Number:330130-070-01-05
Product Type:3300 XL Standard Extension Cable
Origin:USA
Cable Length:7.0 meters
Weight:0.721 kg
Views:56
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330130-070-01-05 is a 7.0-meter standard extension cable designed for the 3300 XL 8 mm Proximity Transducer System. It connects the proximity probe to the Proximitor Sensor, enabling accurate vibration and position monitoring in fluid-film bearing machines. It uses ClickLoc connectors for secure, tool-free installation and supports robust performance in industrial environments.
Applications
-
Vibration monitoring on rotating machinery
-
Shaft position detection
-
Overspeed and Keyphasor reference measurements
-
Turbine, compressor, and pump health monitoring
-
Integration in hazardous or high-temperature environments
Advantages
Interchangeable Design: Fully compatible with all 3300 XL components
Reliable Connection: Gold-plated ClickLoc connectors ensure durability and easy handling

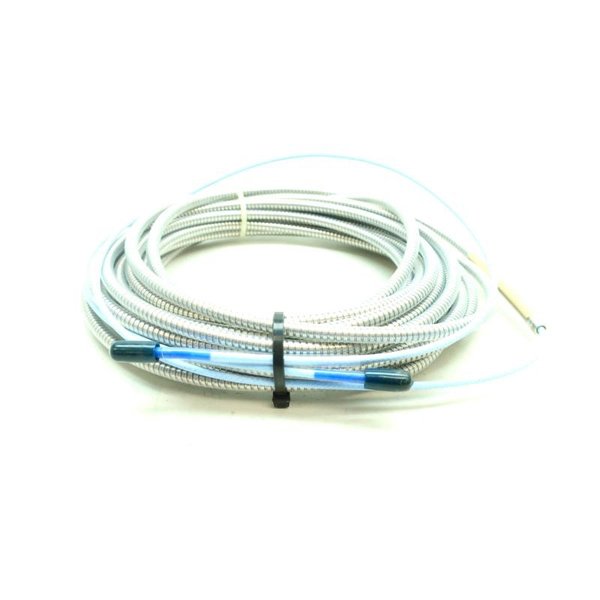

Environmental Resistance: Optional armored or FluidLoc versions available
High Performance: Maintains signal integrity across long cable runs
Flexible Mounting: Supports panel or DIN-rail configurations
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330130-070-01-05 |
| Cable Type | 75Ω triaxial FEP insulated |
| Length | 7.0 meters |
| Weight | 0.721 kg |
| Capacitance | 69.9 pF/m (typical) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Resistance (Core) | 1.54 ± 0.23 Ω |
| Resistance (Jacket) | 0.46 ± 0.09 Ω |
| Connector Type | Miniature coaxial ClickLoc |
| Operating Temperature Range | -52°C to +177°C (standard cable) |
| Cable Material | Fluoroethylene Propylene (FEP) |
| Optional Features | Armored, FluidLoc, Connector Protector |
FAQ
Q1: What is the function of the 330130-070-01-05 cable?
A1: It links the proximity probe to the Proximitor Sensor in Bently Nevada’s 3300 XL system.
Q2: Can this extension cable be used with high-temperature probes?
A2: Yes, but the standard cable supports up to +177°C. For higher temperatures, use the ETR version.
Q3: What makes the ClickLoc connector unique?
A3: It offers secure, tool-free, finger-tight installation with a locking click sound.
Q4: Is the cable backward compatible?
A4: Yes, with non-XL 3300-series 5 mm and 8 mm components.
Q5: Does the cable require calibration with the probe?
A5: No. All components in the 3300 XL system are fully interchangeable.
Q6: What environments is this cable suitable for?
A6: It supports harsh and hazardous environments with optional armor and fluid seals.
Q7: What is the typical use case?
A7: Monitoring vibration and shaft position in rotating machinery like turbines and compressors.
Q8: Can this cable be field-installed with a connector protector?
A8: Yes, protectors can be installed in the field or ordered pre-installed.
Q9: What is the cable’s bending limitation?
A9: Minimum bend radius is 25.4 mm to maintain signal integrity.
Q10: How is this cable different from ETR cables?
A10: ETR cables have PFA insulation for higher temperature tolerance (up to +260°C).
