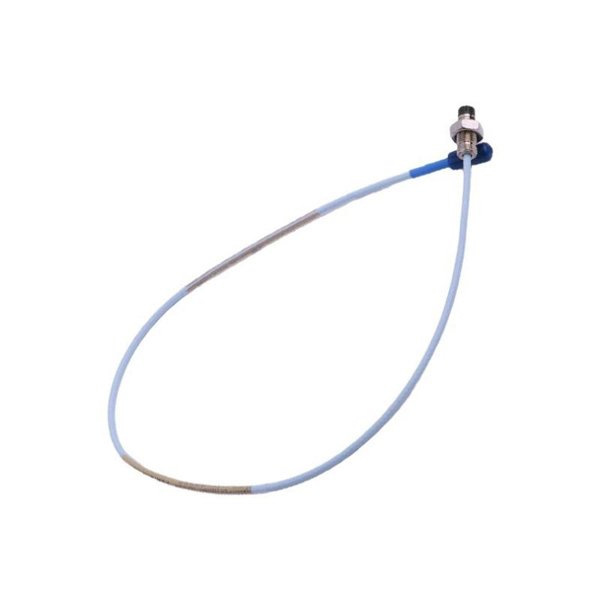

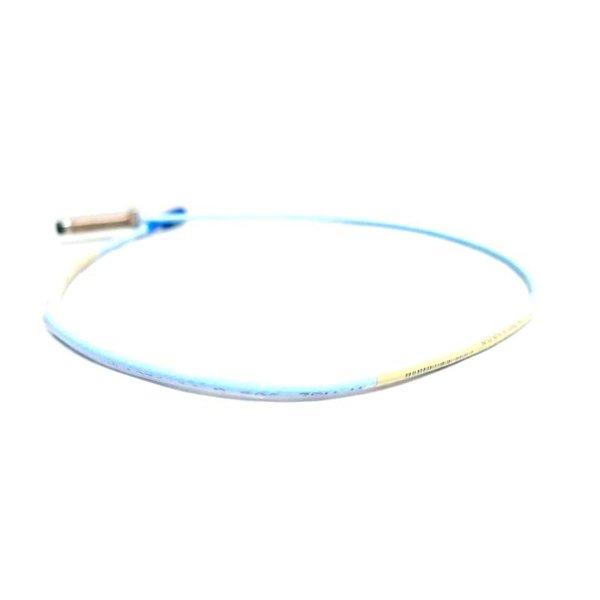

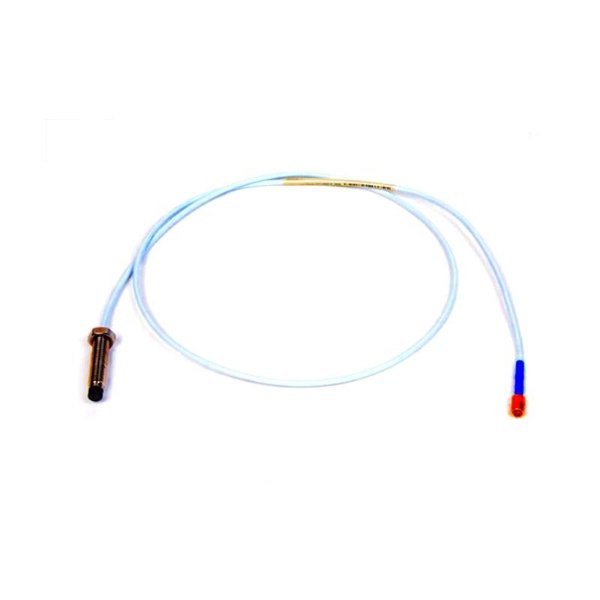

Bently Nevada 330101-00-17-05-02-05 3300 XL 8mm Proximity Probe

The Bently Nevada 330101-00-17-05-02-05 is an 8mm proximity probe within the 3300 XL series, engineered for precise vibration and position monitoring in industrial rotating machinery. It is widely used in turbines, compressors, generators, and motors, providing accurate displacement measurements and reliable condition monitoring. The probe features a miniature coaxial ClickLoc connector and is compatible with the 3300 XL Proximitor Sensor system.

Technical Specifications

Applications

• Rotating machinery vibration monitoring

• Turbine and generator shaft position sensing

• Compressor condition monitoring

• Motor shaft displacement detection

• Industrial plant machinery diagnostics

• Process control and protection systems

Advantages

• High accuracy and repeatability for displacement measurements

• Robust design with resistance to harsh industrial environments

• Interchangeable components reduce calibration complexity

• Backward compatibility with other 3300 series transducer systems

• Miniature connector allows flexible installation in confined spaces

• Long service life with minimal maintenance requirements

FAQ

1. What is the probe tip diameter?

The probe tip diameter is 8 mm, suitable for standard 3300 XL systems.

2. What is the total length of the probe?

The total length is 0.5 meters (1.6 feet).

3. Is the probe compatible with previous 3300 series sensors?

Yes, it is backward-compatible with other 3300 series 5mm and 8mm systems.

4. What connector does the probe use?

It uses a miniature coaxial ClickLoc connector for secure signal transmission.

5. What environments can this probe operate in?

It operates within a temperature range of -40°C to 121°C and is suitable for harsh industrial environments.

6. Can the probe be replaced without recalibrating the entire system?

Yes, the probe is designed for interchangeability without bench calibration.

7. What machinery is it primarily used for?

Turbines, compressors, generators, and industrial motors.

8. What approvals or certifications does the probe have?

It is certified to CSA, ATEX, and IECEx standards.

9. How robust is the probe for industrial use?

The probe is engineered to resist vibration, temperature extremes, and mechanical stress.

10. Does it require a specific cable?

Yes, it requires the standard 3300 XL cable for proper operation.
